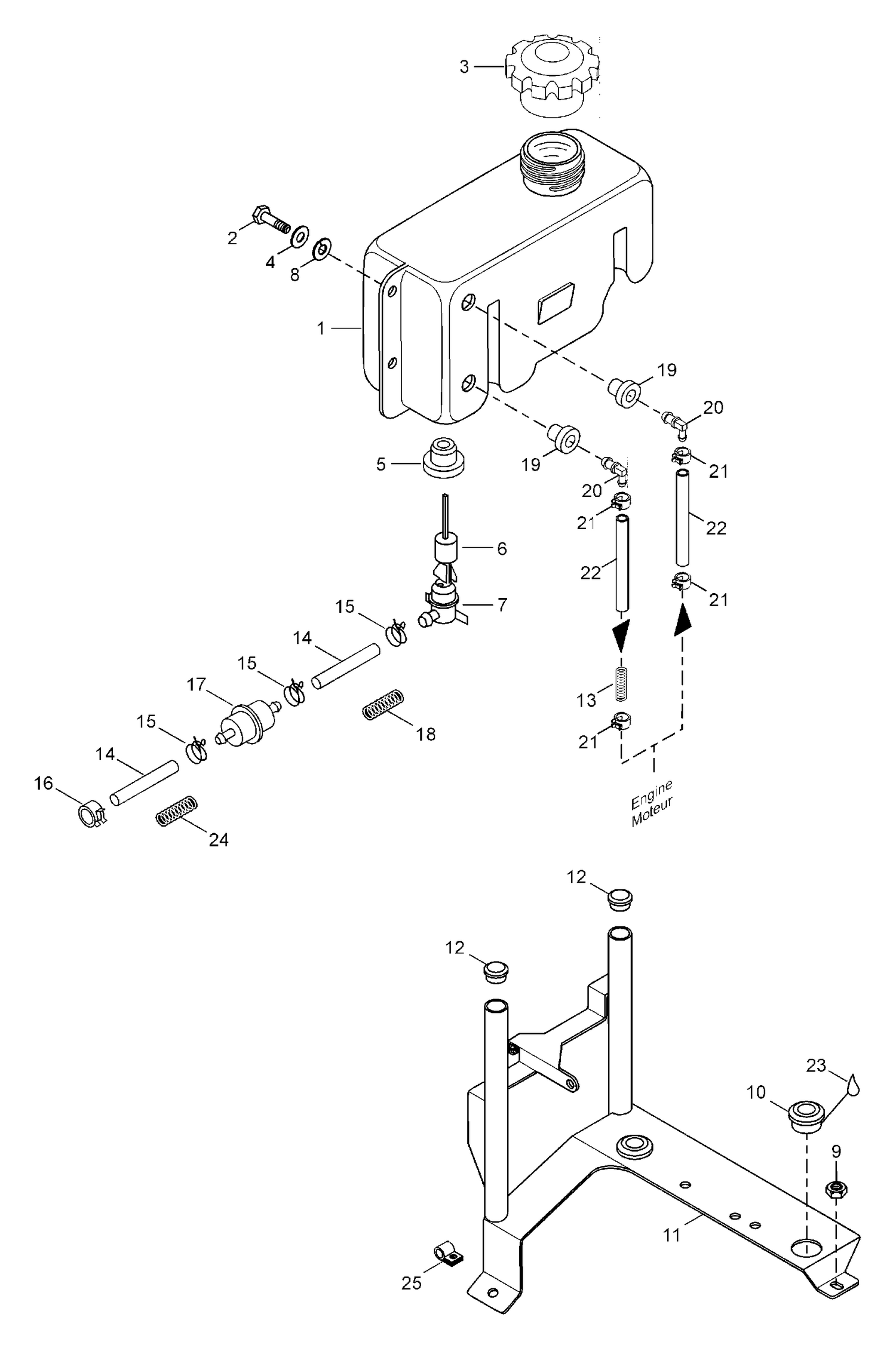

01- Oil Tank
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5143073 | Oil tank |
| 2 | 40030 | Screw M6x20 |
| 3 | 519000044 | CAP - Call your local BRP dealership This part replaces 572071000. |
| 4 | 20052 | Lock washer |
| 5 | 570023000 | Grommet |
| 6 | 414681900 | Float |
| 7 | 414681800 | LEVEL SWITCH - Call your local BRP dealership |
| 8 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 | 28022 | Grommet |
| 11 | 5243611 | Support |
| 12 | 28136 | Plug |
| 13 | 25003 | Spring |
| 14 | 39046 | Oil line |
| 15 | 27119F | Universal spring cla |
| 16 | 414420700 | Universal Spring Clamp |
| 17 | 414536500 | Oil filter |
| 18 | 28015 | Tube |
| 19 | 707800347 | Grommet This part replaces 570273900. |
| 20 | 414523600 | Elbow fitting 90 degr. |
| 21 | 414655700 | Spring slip |
| 22 | 414644800 | OIL LINE - Call your local BRP dealership |
