Parts Catalog

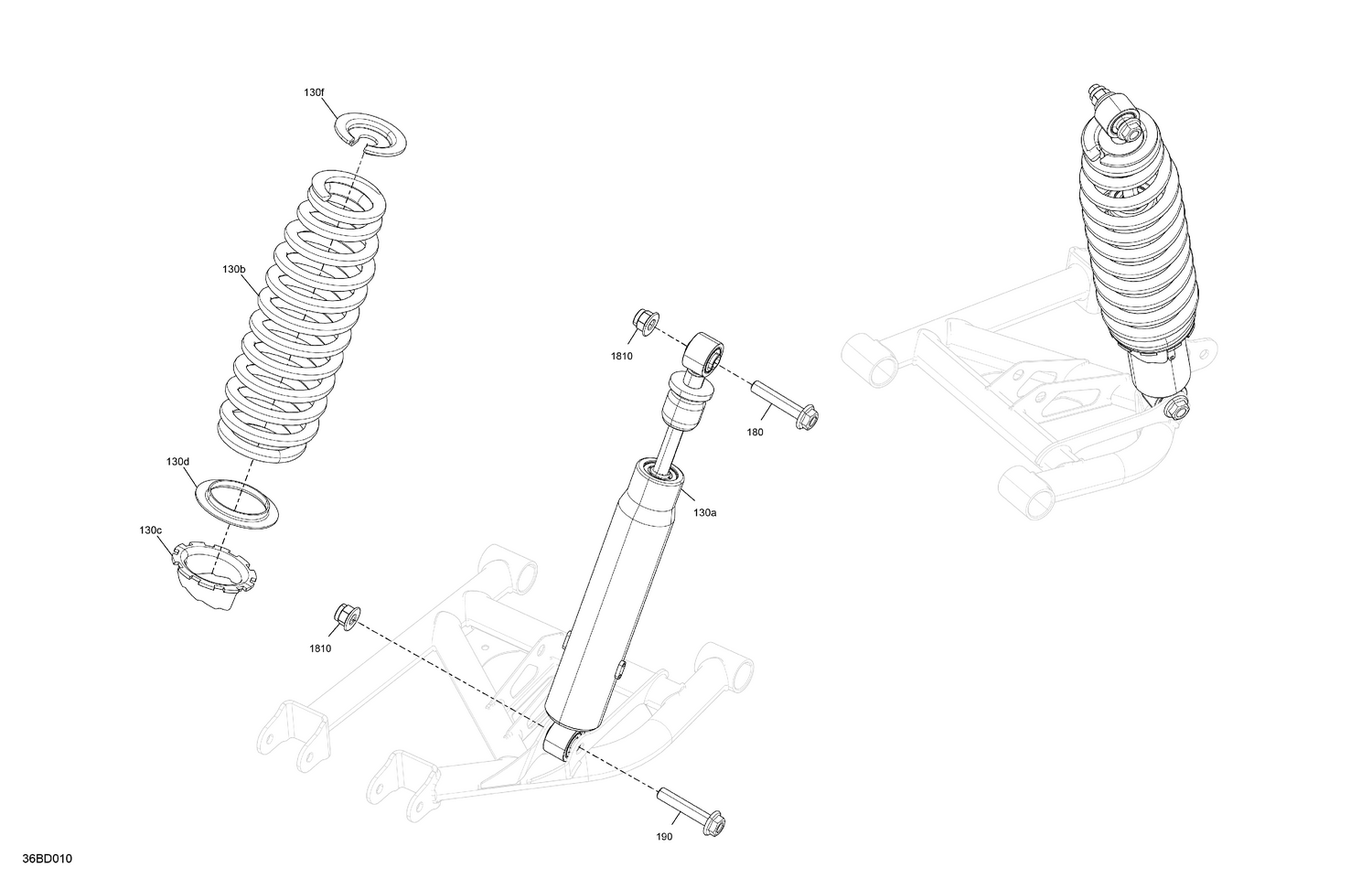

05- Suspension - Rear Shocks

Parts (7)

Ref	Part Number	Description
130a	706002719	Rear Shock
130b	706005162	Deep Black, Compression Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130f	706001894	Spring Cup
180	250000857	Flange Screw M12 X 60
190	250000857	Flange Screw M12 X 60
