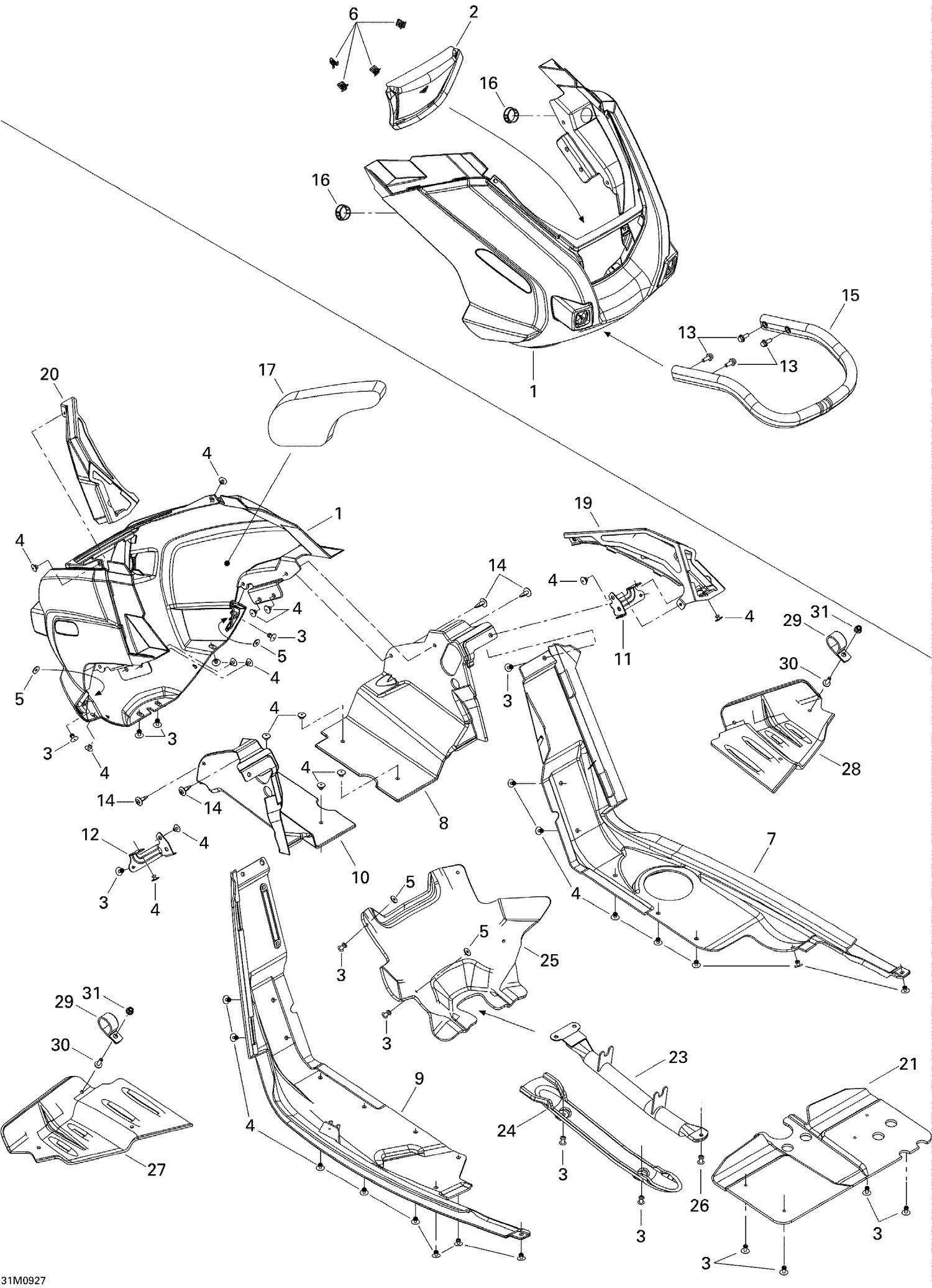

09- Bottom Pan
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502006856 | Front Bottom Pan |
| 2 | 502006753 | FRONT BOTTON PAN GRILL - Call your local BRP dealership |
| 3 | 293150104 | Pop Rivet 3/16 |
| 4 | 293150103 | Pop Rivet 3/16 |
| 5 | 517124300 | Washer |
| 6 | 517302785 | Clip |
| 7 | 502006852 | RH BOTTOM PAN - Call your local BRP dealership |
| 8 | 502006853 | RH SIDE BOTTOM PAN - Call your local BRP dealership |
| 9 | 502006788 | LH BOTTOM PAN - Call your local BRP dealership |
| 10 | 502006851 | LH Side Bottom Pan |
| 11 | 502006773 | RH SUPPORT - Call your local BRP dealership |
| 12 | 502006775 | LH SUPPORT - Call your local BRP dealership |
| 13 | 207661644 | Hex. Flange Screw M6 X 16 |
| 14 | 414745900 | Tuflock Phillips Plastic Screw |
| 15 | 502006797 | FRONT BUMPER - Call your local BRP dealership |
| 16 | 414916600 | Nylon Cap |
| 17 | 502006807 | RH BOTTOM PAN FOAM - Call your local BRP dealership |
| 19 | 502006789 | RH BOTTON PAN GRILL - Call your local BRP dealership |
| 20 | 502006791 | LH BOTTON PAN GRILL - Call your local BRP dealership |
| 21 | 502006813 | Skide Plate |
| 23 | 502006838 | Protector Tube |
| 24 | 502006812 | Skid Plate |
| 25 | 502006857 | Skid Plate |
| 26 | 293150138 | POP RIVET 1/4 - Call your local BRP dealership |
| 27 | 502006882 | Protector |
| 28 | 502006881 | Protector |
| 29 | 293750035 | Open Clamp |
| 30 | 250000080 | PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
