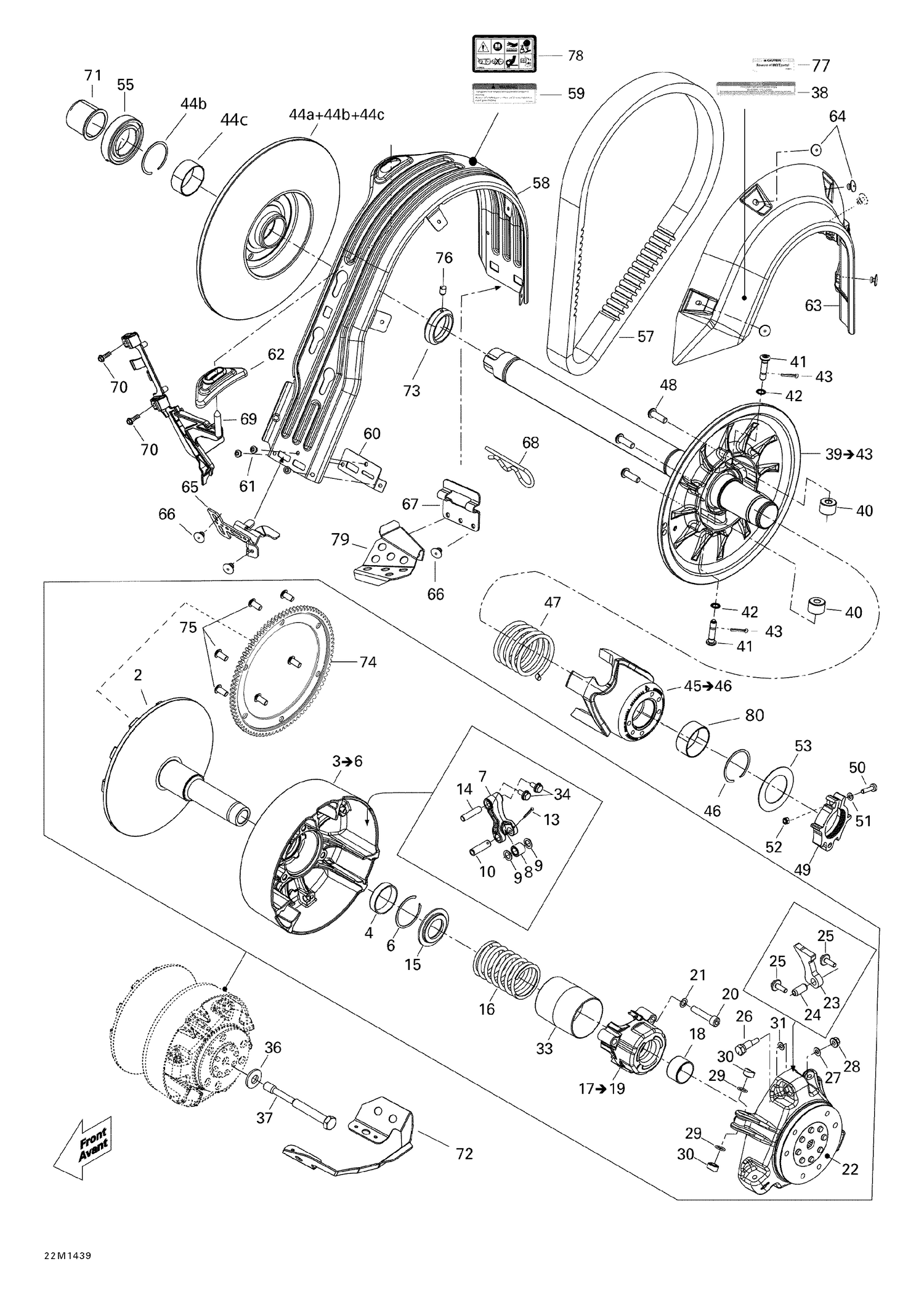

05- Pulley System
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Drive Pulley Ass'y |
| 2 | 417222937 | Fixed Flange Ass'y |
| 3 | 417222181 | Sliding Flange Ass'y |
| 4 | 417223086 | Bushing |
| 6 | 293370037 | Circlip |
| 7 | 417222671 | Lever |
| 8 | 417222947 | Roller |
| 9 | 417004302 | Stopper Washer |
| 10 | 417222594 | Pin |
| 13 | 250400060 | Cotter Pin |
| 14 | 417223164 | Lever Axle |
| 15 | 417222312 | Spring Seat |
| 16 | 414993000 | Tra Spring |
| 17 | 417007500 | Spring Cover Ass'y |
| 18 | 417009204 | Bushing |
| 20 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 21 | 250200009 | Lock Washer 8 mm |
| 22 | 417223669 | Governor Cup Ass'y |
| 23 | 417222515 | Ramp 412 |
| 24 | 250400050 | Spring Pin M10 X 22 |
| 25 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 26 | 417223501 | Calibration Screw |
| 27 | 417005600 | Washer |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 732401030 | O-Ring |
| 30 | 417223021 | Slider Shoe This part replaces 420460045. |
| 31 | 417005600 | Washer |
| 33 | 417009205 | Guard |
| 34 | 250000412 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 36 | 250200006 | Spring Washer 14 mm |
| 37 | 417120000 | Drive Pulley Bolt |
| 38 | 516004303 | DECAL - Call your local BRP dealership |
| 40 | 417127189 | Roller |
| 41 | 417127294 | Pivot Stud |
| 42 | 250200009 | Lock Washer 8 mm |
| 43 | 250400061 | Spring Pin M3 X 18 |
| 44b | 293370049 | Circlip |
| 44c | 417127318 | Bushing ID 41mm OD 45mm X 19mm L This part replaces 417127000. |
| 46 | 293370049 | Circlip |
| 47 | 417127243 | Spring, White |
| 48 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 49 | 415129604 | Calibration Ass'y |
| 50 | 205052544 | Socket Screw M5 X 25 |
| 51 | 234051410 | Flat Washer M5 |
| 52 | 232551414 | Elastic Stop Nut M5 |
| 53 | 417127155 | Washer |
| 55 | 504152574 | Ball Bearing |
| 57 | 417300551 | Drive Belt This part replaces 417300383. |
| 58 | 417300382 | Belt Guard |
| 59 | 516004649 | Security label, Belt Guard |
| 60 | 417300380 | Reinforcement |
| 61 | 390909200 | Avex Rivet |
| 62 | 417300381 | Guide |
| 63 | 417300356 | Side Protector |
| 64 | 293150103 | Pop Rivet 3/16" |
| 65 | 417300364 | Belt Guard Bracket |
| 66 | 293150104 | Pop Rivet 3/16" |
| 67 | 417300363 | Belt Guard Bracket |
| 68 | 114045200 | Hair Pin |
| 69 | 417300396 | BELT GUARD BRACKET - Call your local BRP dealership |
| 70 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 71 | 504153054 | Protective Rubber |
| 72 | 518326566 | PULLEY COVER PLATE - Call your local BRP dealership |
| 73 | 417300419 | RETAINER RING - Call your local BRP dealership |
| 74 | 417225070 | Ring Gear_Starter This part replaces 417223738. |
| 75 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 76 | 417127203 | SOCKET SET SCREW M6X6 DIN 916 - Call your local BRP dealership |
| 77 | 516005503 | Decal English |
| 78 | 516003919 | Warning Decal |
