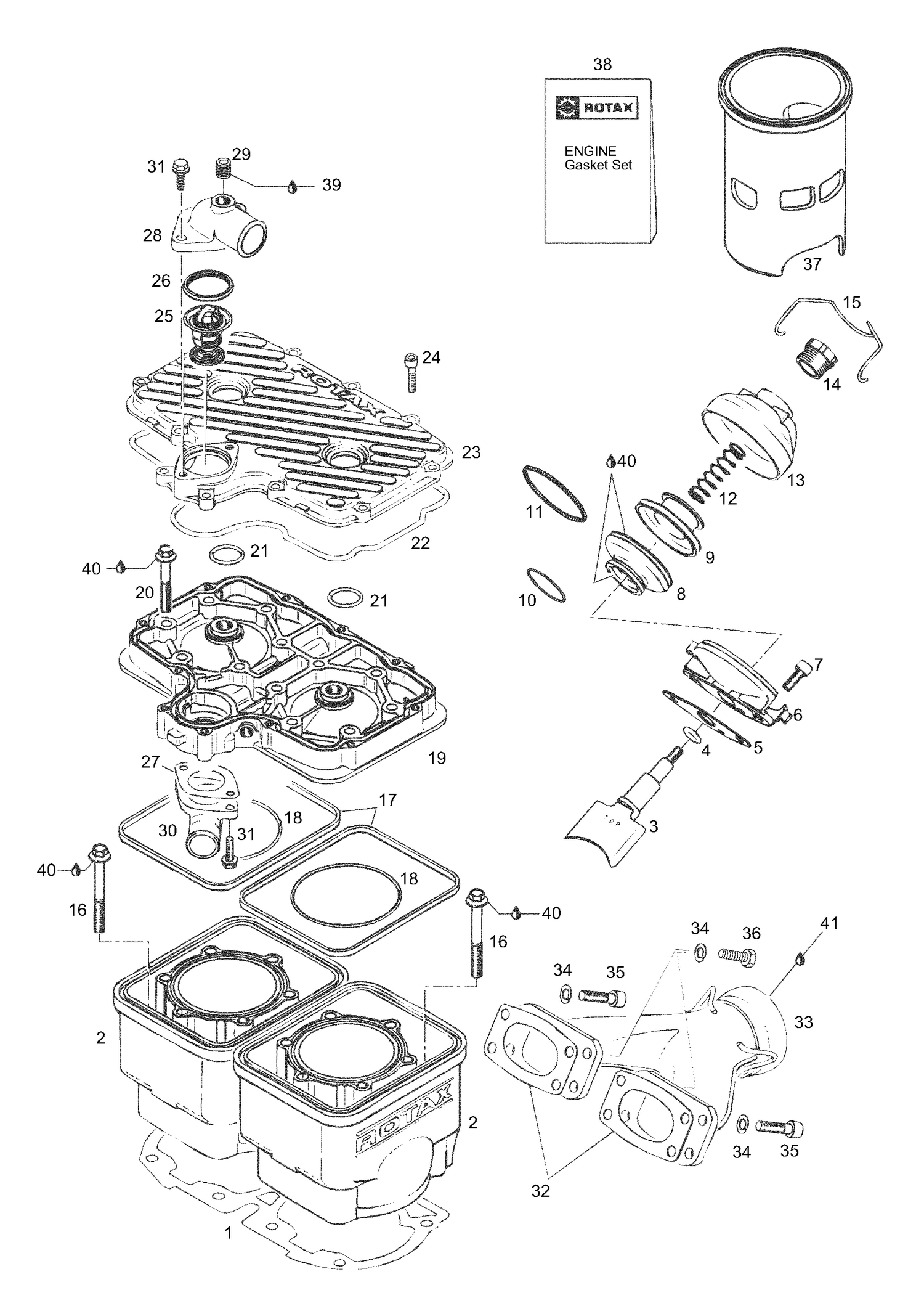

| Ref | Part Number | Description |
|---|
| 1 |
420931361 |
Gasket, 0,4 mm |
| 2 |
420923617 |
Cylinder assy |
| 3 |
420854300 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420430110 |
O-Ring |
| 5 |
420250239 |
Gasket |
| 6 |
420854265 |
Valve rod housing |
| 7 |
420241237 |
Socket Head Screw M6 X 16 This part replaces 420241236. |
| 8 |
420260723 |
Bellows This part replaces 420260728. |
| 9 |
420854449 |
Exhaust valve This part replaces 420854447. |
| 10 |
420838255 |
Hose Spring This part replaces 420838253. |
| 11 |
420939281 |
Hose Spring This part replaces 420239048. |
| 12 |
420239954 |
Spring This part replaces 420239944. |
| 13 |
420911552 |
Valve cover This part replaces 420911551. |
| 14 |
420241221 |
Adjustment screw |
| 15 |
420838083 |
SPRING CLIP - Call your local BRP dealership |
| 16 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420841996. |
| 17 |
420850040 |
RUBBER RING - Call your local BRP dealership |
| 18 |
420831792 |
O-ring |
| 19 |
420923167 |
Cylinderhead silver |
| 20 |
420640441 |
Screw M8 x 53,5 |
| 21 |
420430782 |
O-ring |
| 22 |
420931260 |
O-ring |
| 23 |
420923623 |
Cylinderhead cover |
| 24 |
205062544 |
Allen Screw M6 x 25 This part replaces 420840861. |
| 25 |
420922519 |
Thermostat This part replaces 420922515. |
| 26 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 27 |
420850339 |
Gasket This part replaces 420850338. |
| 28 |
420922061 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 29 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 30 |
420922480 |
Bent outlet socket |
| 31 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 |
420850535 |
Gasket |
| 33 |
420973228 |
Exhaust manifold assy |
| 34 |
20014 |
Lock washer |
| 35 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 36 |
40036 |
Hex-screw M8x20 |
| 37 |
420923156 |
Spare cylinder sleeve |
| 38 |
420994228 |
KIT-GASKET - Call your local BRP dealership |
| 39 |
420297434 |
Loctite 76710 |
