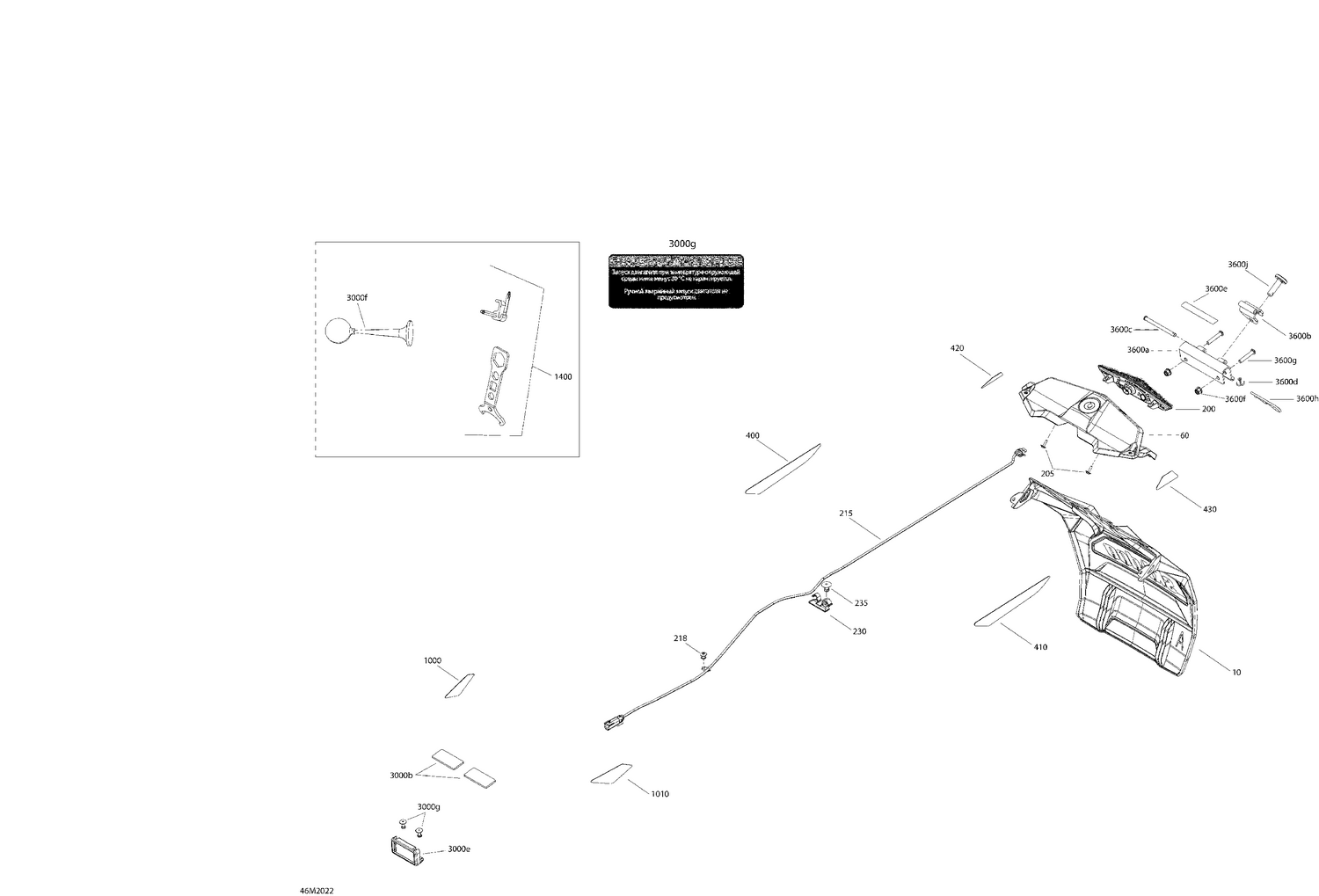

10- Utilities
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001863 | Snow Gard Ass'y |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000725 | Screw M4 X 16 |
| 215 | 515178267 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 230 | 520001722 | Cap |
| 235 | 293150104 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 420 | 520001862 | Amber, LH Rear Reflector |
| 430 | 520001861 | Amber, LH Rear Reflector |
| 1000 | 520002343 | RH Front Reflector This part replaces 520001493. |
| 1010 | 520002344 | LH Front Reflector This part replaces 520001494. |
| 1400 | 520001767 | Tool Kit |
| 3000b | 520000271 | Amber, Reflector |
| 3000e | 520000871 | Deep Black, Reflector Support |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3600a | 511000554 | Support |
| 3600b | 511000588 | HITCH PLATE - Call your local BRP dealership |
| 3600c | 511001451 | Lock Pin |
| 3600d | 371800200 | Cotter Pin |
| 3600e | 516004568 | WARNING DECAL, SECURITY - Call your local BRP dealership |
| 3600f | 250001098 | Socket Head Screw M8 x 45 |
| 3600g | 233281414 | Hex. Flange Elastic Nut M8 |
| 3600h | 114045200 | Hair Pin |
