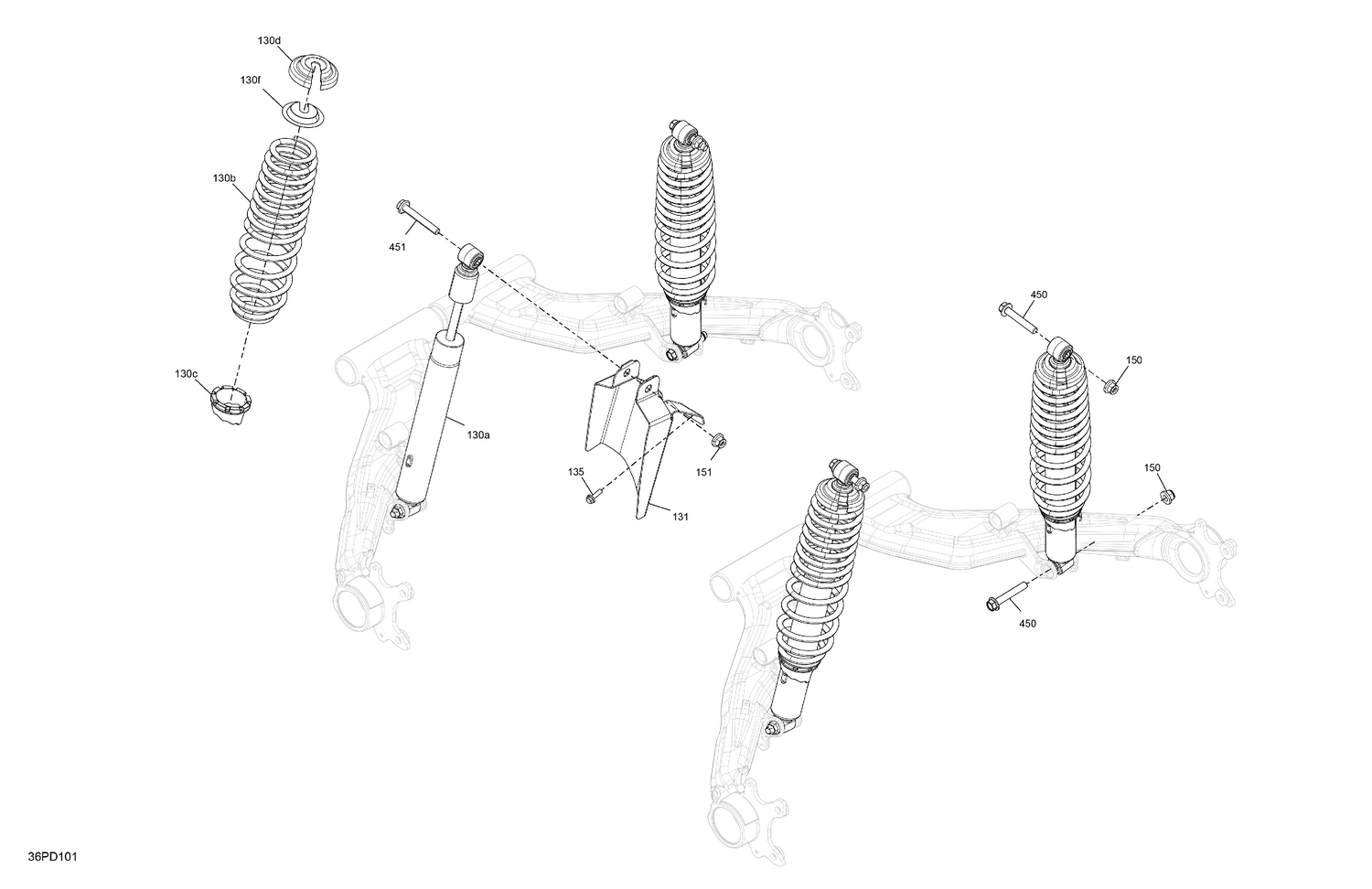

05- Suspension - Rear Shocks
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 706001524 | Rear Shock |
| 130b | 706004873 | Deep Black, Compression Spring |
| 130c | 706002356 | Adjuster Ring |
| 130d | 706200881 | Spring Stopper |
| 130f | 706200785 | Cap |
| 131 | 705210324 | LH Rear Heat Shield |
| 135 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 150 | 233201436 | Hex. Flange Elastic Nut M10 |
| 151 | 233201436 | Hex. Flange Elastic Nut M10 |
| 450 | 207606046 | Hex. Flange Screw M10 X 6 |
