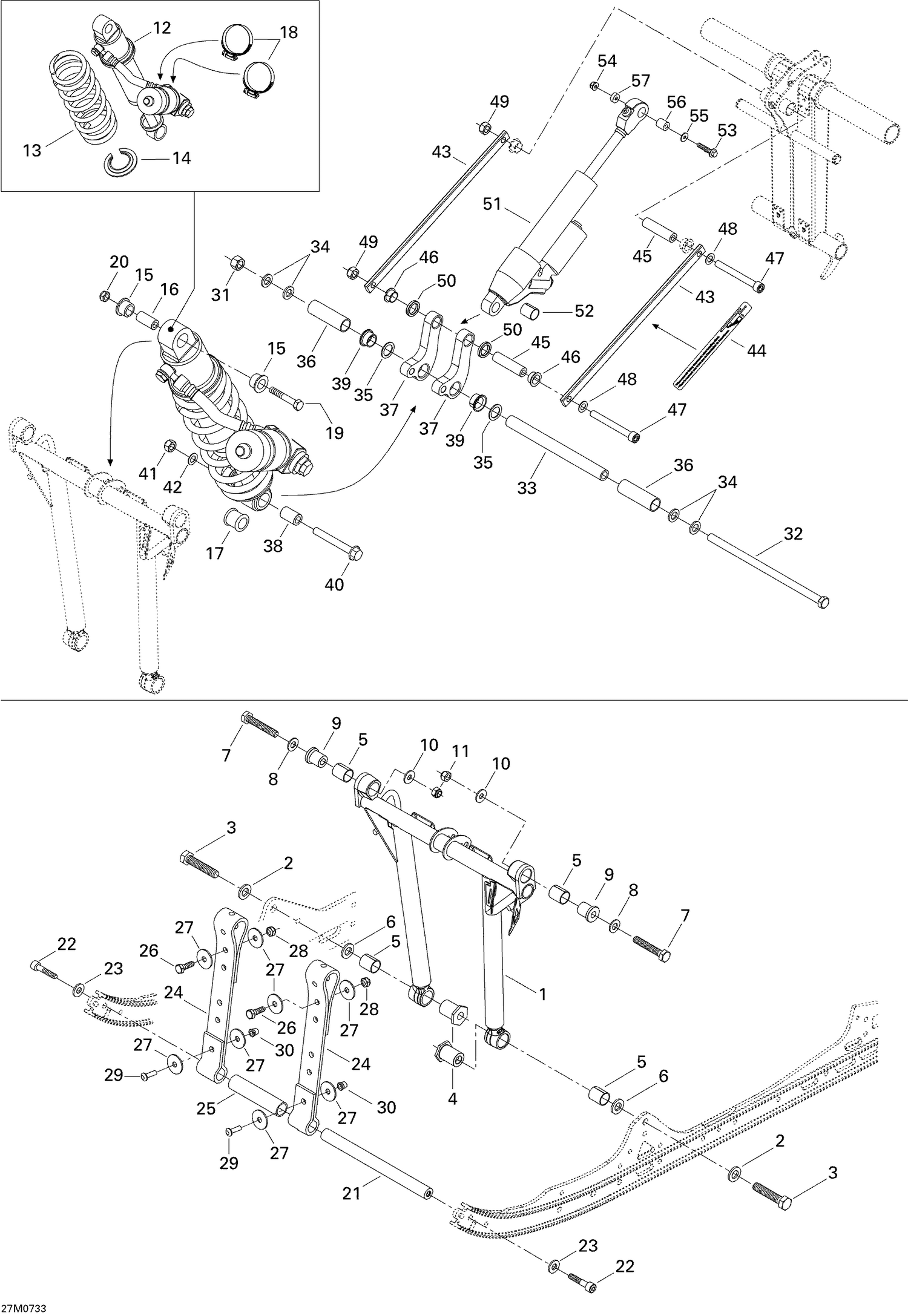

08- Front Arm
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191536 | FRONT ARM - Call your local BRP dealership |
| 2 | 503189148 | Washer |
| 3 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 4 | 503191966 | Lower Axle This part replaces 503190727. |
| 5 | 503190974 | Bushing |
| 6 | 503190656 | Washer |
| 7 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 8 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 9 | 503190698 | Axle |
| 10 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 12 | 503190582 | Center Shock |
| 13 | 503191019 | Spring |
| 14 | 503190271 | Spring Stopper |
| 15 | 503189117 | Urethane Bushing |
| 16 | 503189282 | Bushing |
| 17 | 503189271 | Bushing |
| 18 | 293650035 | Tridon Clamp |
| 19 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 20 | 232500416 | Elastic Stop Nut M10 |
| 21 | 503191260 | Axle Strap |
| 22 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 23 | 503189564 | Washer |
| 24 | 503190782 | STOPPER STRAP - Call your local BRP dealership |
| 25 | 503189265 | Spacer |
| 26 | 207682544 | Hex. Flange Screw M8 X 25 |
| 27 | 224081301 | Flat Washer |
| 28 | 233281414 | Hex. Flange Elastic Nut M8 |
| 29 | Not | Available As Spare Part - Huck Rivet |
| 30 | Not | Available As Spare Part - Huck Collar |
| 31 | 232021416 | Hex. Nut M12 |
| 32 | 250000229 | HEX. SCREW M12 X 252 - Call your local BRP dealership |
| 33 | 503191047 | PIVOT SHAFT - Call your local BRP dealership |
| 34 | 503189148 | Washer |
| 35 | 503190697 | WASHER - Call your local BRP dealership |
| 36 | 503190600 | SPACER - Call your local BRP dealership |
| 37 | 503190601 | ROCKER ARM - Call your local BRP dealership |
| 38 | 503190604 | Central Shock Axle |
| 39 | 503190605 | CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership |
| 40 | 207608044 | HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership |
| 41 | 232500416 | Elastic Stop Nut M10 |
| 42 | 503175800 | Washer |
| 43 | 503190644 | Tie Rod |
| 44 | 516005609 | Shock Position Decal This part replaces 516001790. |
| 45 | 503191192 | Bar Axle |
| 46 | 503191555 | Swivel Bushing This part replaces 506150200. |
| 47 | 205009044 | Socket Screw M10 X 90 |
| 48 | 503175800 | Washer |
| 49 | 232500416 | Elastic Stop Nut M10 |
| 50 | 503190694 | Plastic Spacer |
| 51 | 503190581 | Rear Shock |
| 52 | 503190706 | BUSHING - Call your local BRP dealership |
| 53 | 207085586 | Hex. Screw M8 X 55 |
| 54 | 233281416 | Hex. Elastic Flange Nut M8 |
| 55 | 503189157 | Washer |
