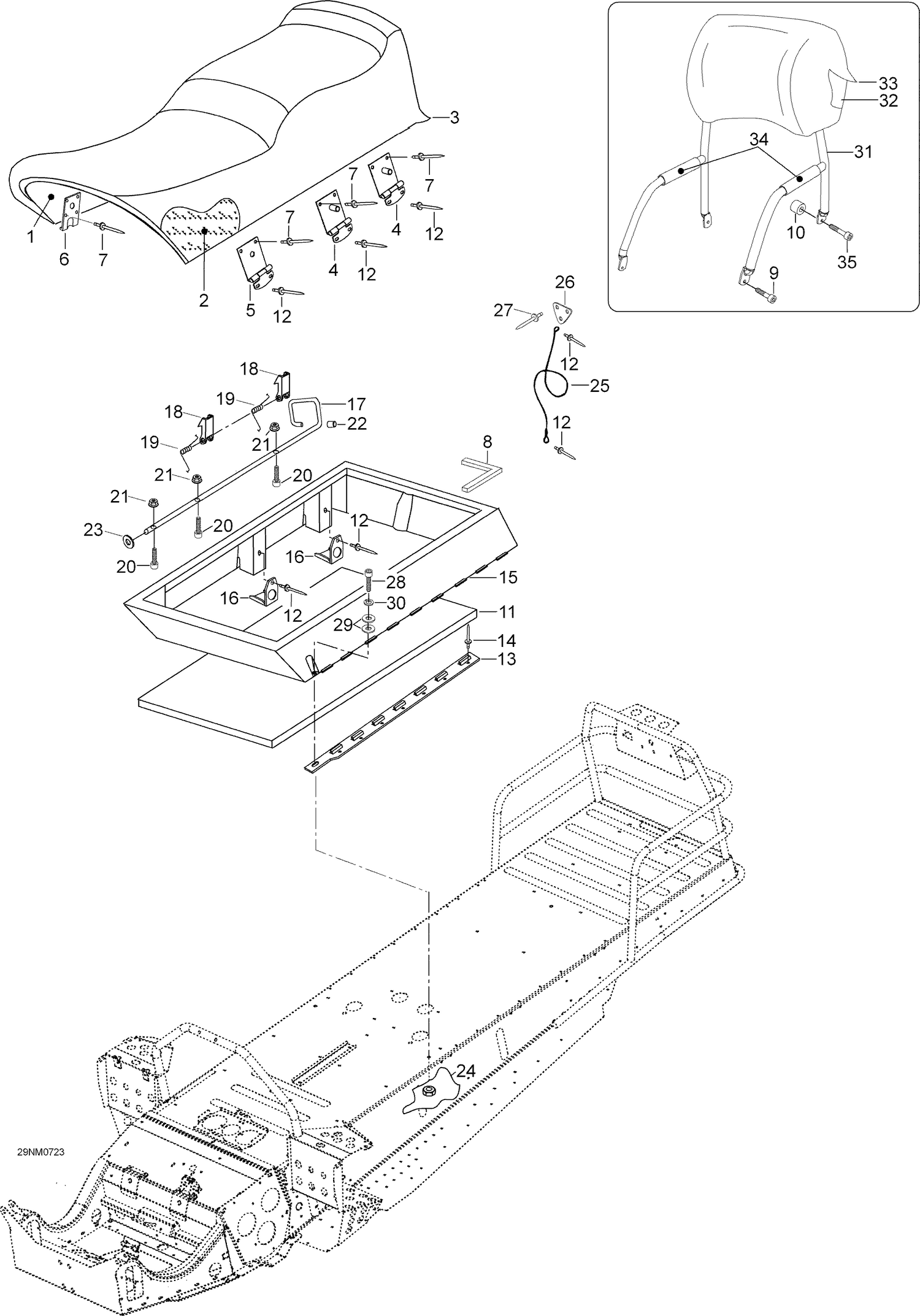

| Ref | Part Number | Description |
|---|
| 1 |
519394 |
SEAT BASE - Call your local BRP dealership |
| 2 |
605148623 |
Foam |
| 3 |
605153063 |
COVER - Call your local BRP dealership |
| 4 |
549874 |
Hinge plate - Call your local BRP dealership |
| 5 |
5440581 |
Hinge |
| 6 |
549732 |
Lock plate weld. - Call your local BRP dealership |
| 7 |
36071 |
Rivet |
| 8 |
5440059 |
Seal |
| 9 |
40388 |
Socket head screw M8 x 20 |
| 10 |
5440665 |
SPACER - Call your local BRP dealership |
| 11 |
5346079 |
SEATBOX COVER - Call your local BRP dealership |
| 12 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 13 |
5144028 |
CLIP PLATE L.H. - Call your local BRP dealership |
| 13 |
5144029 |
Clip plate L.H. |
| 14 |
36083 |
Rivet |
| 15 |
5142066 |
Seat box - Call your local BRP dealership |
| 16 |
5443661 |
Support |
| 17 |
5344987 |
LOCKING ROD - Call your local BRP dealership |
| 18 |
605451589 |
CAM LOCK - Call your local BRP dealership |
| 19 |
5444439 |
Spring |
| 20 |
40144 |
Allen screw M4 x 16 DIN 912m8.8(1=10pcs) - Call your local BRP dealership |
| 21 |
33008 |
Nut elastic M4 |
| 22 |
28019 |
Plug |
| 23 |
31081 |
Washer |
| 24 |
33066 |
Nut M6 |
| 25 |
5447746 |
Retainer cable |
| 26 |
605452535 |
SUPPORT - Call your local BRP dealership |
| 27 |
36038 |
Rivet 4.8x21 Al(1=25pcs) - Call your local BRP dealership |
| 28 |
40052 |
Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 29 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 30 |
20052 |
Lock washer A6 |
| 31 |
5245664 |
Backrest weld. - Call your local BRP dealership |
| 32 |
539399 |
FOAM, BACKREST - Call your local BRP dealership |
| 33 |
5340917 |
COVER-BACKREST - Call your local BRP dealership |
| 34 |
415050300 |
Grip |
