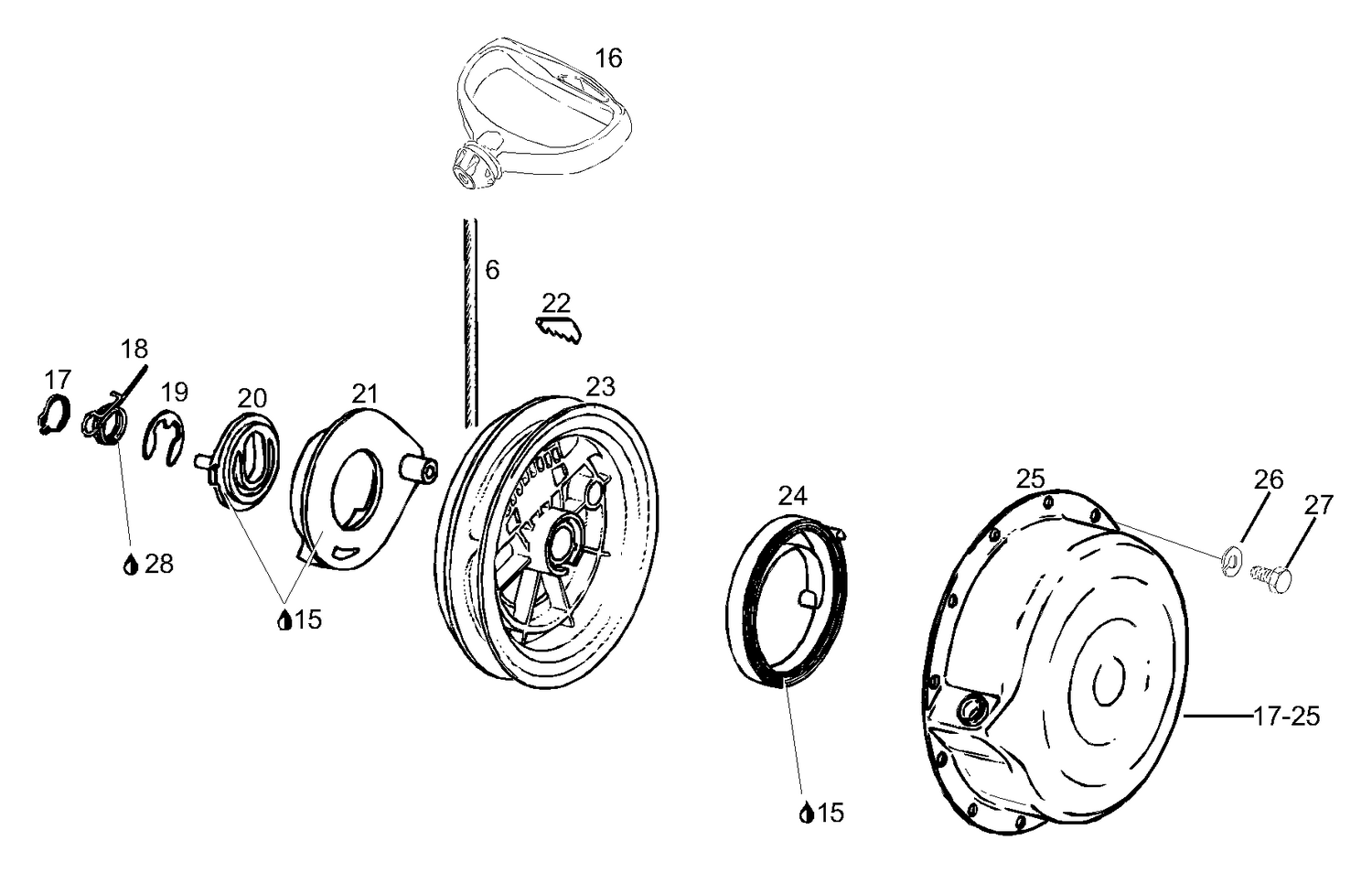

04- Rewind Starter
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 412500100 | Starter rope (30 m) |
| 6 | 412500200 | Starter Rope This part replaces 420852491. |
| 15 | 420897061 | Silicon compound |
| 16 | 572084400 | Handle |
| 17 | 420945770 | LOCK RING - Call your local BRP dealership |
| 18 | 420938986 | Locking spring |
| 19 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 20 | 420852301 | PAWL LOCK - Call your local BRP dealership |
| 21 | 420852296 | Pawl This part replaces 420852293. |
| 22 | 420852070 | Key |
| 23 | 420852283 | Rope sheave |
| 24 | 420939115 | Rewind Spring Ass'y |
| 26 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 27 | 207161644 | Screw M6x16 |
