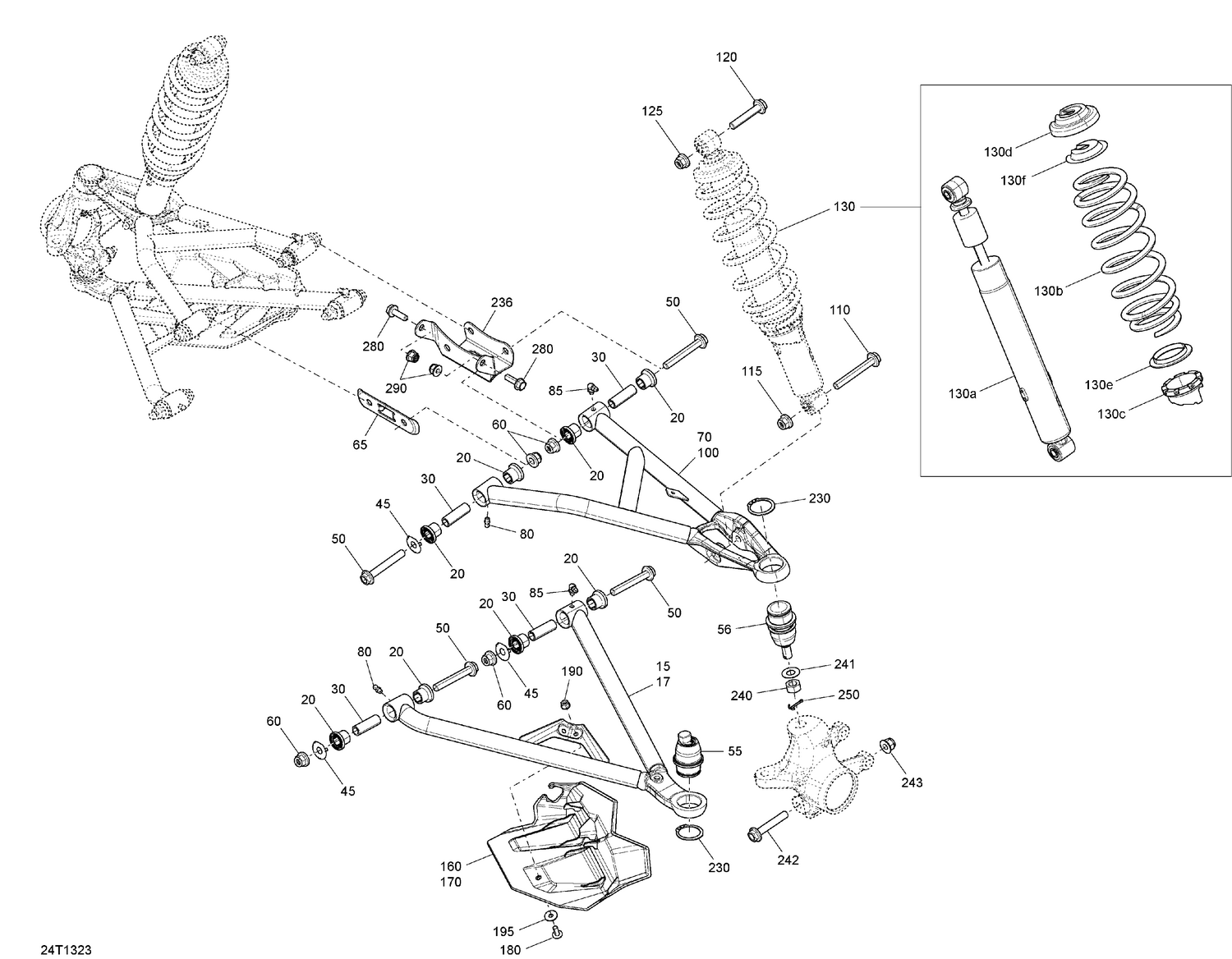

07- Front Suspension
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 706204639 | LH Lower Suspension Arm This part replaces 706200955. |
| 17 | 706202870 | Black, RH Lower Arm This part replaces 706200984. |
| 20 | 706200181 | Bushing |
| 30 | 706201587 | Sleeve |
| 45 | 706201063 | Wear Plate |
| 50 | 207607046 | Hex. Flange Screw M10 X 70 |
| 55 | 706202045 | Ball Joint This part replaces 706201393. |
| 56 | 706202044 | Ball Joint This part replaces 706201394. |
| 60 | 233201436 | Hex. Flange Elastic Nut M10 |
| 65 | 706200998 | Front Suspension Cross Plate |
| 70 | 706201797 | Black RH Upper Arm |
| 80 | 408200700 | Grease Fitting |
| 85 | 293550056 | Grease Fitting 90° |
| 100 | 706201796 | Black LH Upper Arm |
| 110 | 250001038 | Hex. Flange Screw M10 X 75 This part replaces 207607587. |
| 115 | 233201436 | Hex. Flange Elastic Nut M10 |
| 120 | 207605546 | Hex. Flange Screw M10 X 55 |
| 125 | 233201436 | Hex. Flange Elastic Nut M10 |
| 130 | Not | Available As Spare Part - Front Shock Ass'y |
| 130a | 706201170 | Front Shock |
| 130b | 706201769 | Yellow Spring |
| 130c | 505073625 | Adjustment Cam This part replaces 505070150. |
| 130d | 706200881 | Spring Stopper |
| 130e | 503187500 | Spring Guide |
| 130f | 706200785 | Cap |
| 160 | 706202808 | LH Joint Protector This part replaces 706201829. |
| 170 | 706202809 | RH Joint Protector This part replaces 706201830. |
| 180 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 190 | 233261494 | Hex. Flange Elastic Nut M6 |
| 195 | 234062670 | Stainless Steel Flat Washer |
| 230 | 293370035 | Circlip |
| 236 | 705203247 | Upper Front Holder |
| 240 | 250100099 | Nut M12 |
| 241 | 706200281 | Hardened Washer This part replaces 250200086. |
| 242 | 207606044 | Hex. Flange Screw M10 X 60 |
| 243 | 233201434 | Hex. Flange Elastic Nut M10 |
| 250 | 211400017 | Cotter Pin |
| 280 | 207682544 | Hex. Flange Screw M8 X 25 |
