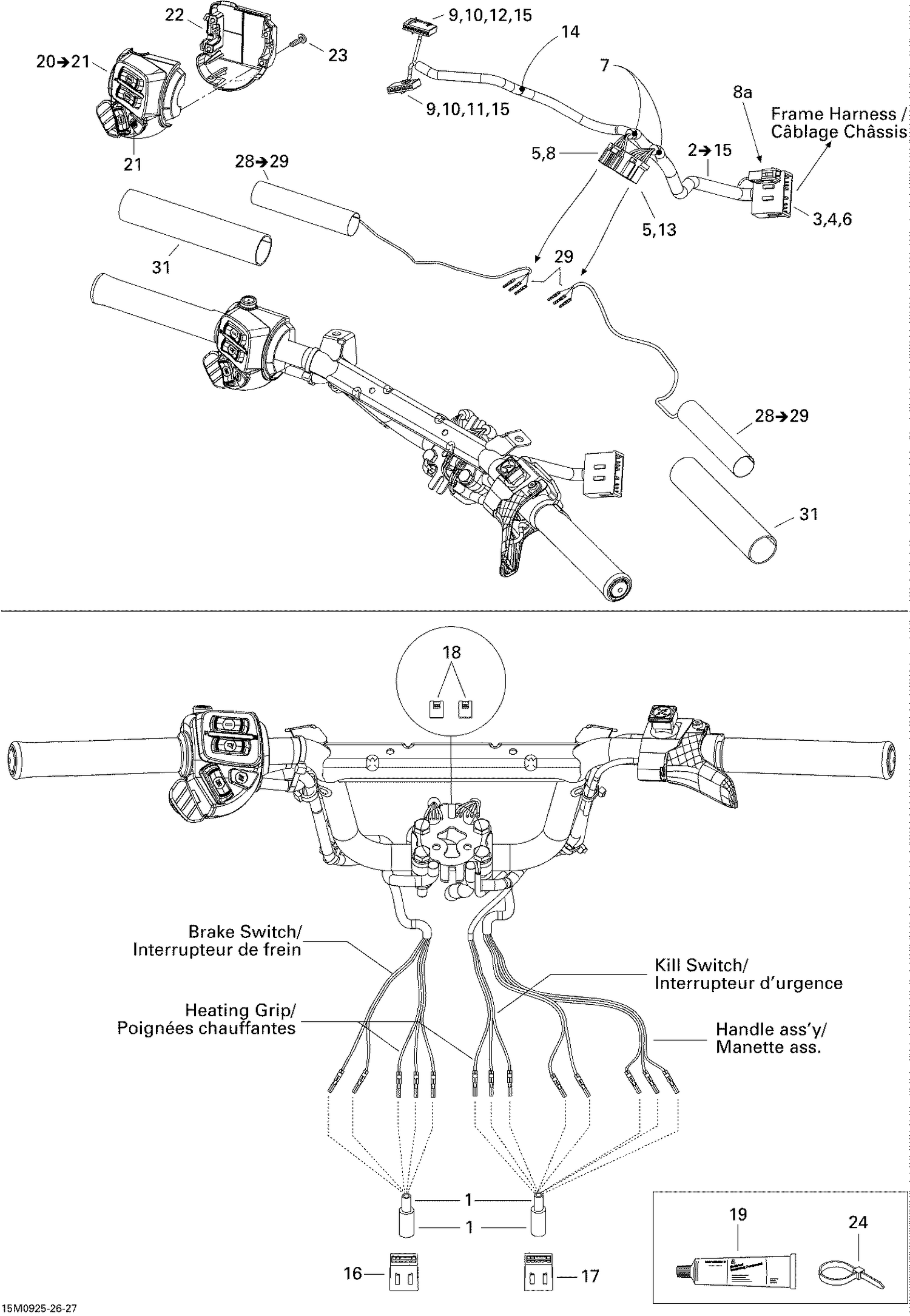

10- Steering Wiring Harness
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 409902000 | Tubing 12 mm |
| 1 | 409902200 | Tubing 25 mm |
| 1 | 515175830 | Low Temperature Tubing 1/2” |
| 3 | 515175232 | Male Terminal |
| 4 | 515175273 | MALE TERMINAL - Call your local BRP dealership |
| 5 | 515175231 | Female Terminal |
| 6 | 515175352 | MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 7 | 415079900 | Tubing 10 mm |
| 8 | 515175543 | Female Terminal Housing, 6 Circuits |
| 8a | 515175654 | Male Terminal Housing, 2 Circuits |
| 9 | 515175808 | FEMALE TERMINAL - Call your local BRP dealership |
| 10 | 515175809 | FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership |
| 11 | 515175807 | FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership |
| 12 | 515175810 | FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership |
| 13 | 515175819 | Female Terminal Housing, 8 Circuits |
| 14 | 515175830 | Low Temperature Tubing 1/2” |
| 15 | 515175941 | Female Terminal |
| 16 | 515175662 | Male Terminal Housing, 6 Circuits |
| 17 | 515175817 | Male Terminal Housing, 8 Circuits |
| 18 | XXX | Not Available As Spare Parts |
| 19 | 293550004 | Dielectric Grease, 150 g |
| 21 | 515176088 | Start/RER Button |
| 22 | 515175926 | Housing Switch Plate |
| 23 | 250000263 | Torx Screw #8-18 |
| 24 | 293750002 | Tie-Rap 142 mm |
| 24 | 293750008 | Tie-Rap 368 mm |
| 24 | 293750009 | Tie-Rap 173 mm |
| 24 | 414115200 | Tie-Rap 180 mm |
| 29 | 515175232 | Male Terminal |
