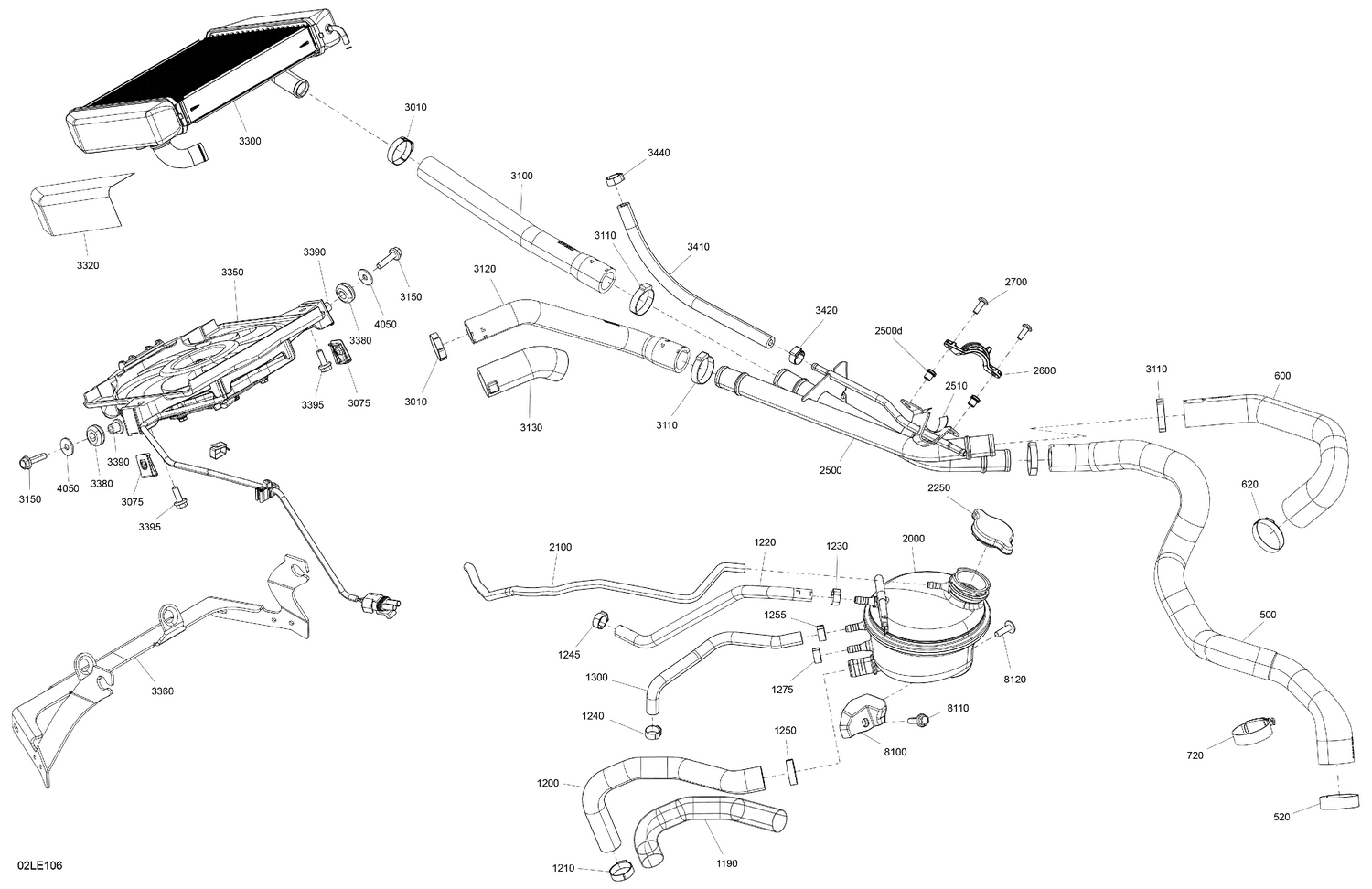

02- Engine - Cooling
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001456 | Thermostat Hose |
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 600 | 509001460 | Hose |
| 620 | 293650306 | Oetiker Clamp |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001462 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001461 | Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1245 | 293650025 | Oetiker Gear Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1255 | 293650046 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 1300 | 509001457 | Hose |
| 2000 | 509001261 | Coolant Tank |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500d | 293450268 | Insert M5 X 0.8 |
| 2510 | 512061214 | Protector |
| 2600 | 509001379 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650099 | Oetiker Gear Clamp |
| 3075 | 250100208 | Panel Nut M6 X 1.0 |
| 3100 | 509001459 | Hose |
| 3110 | 293650331 | Crimp Clamp |
| 3120 | 509001458 | Hose |
| 3130 | 707001349 | Protector Tube 90mm |
| 3150 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3300 | 509001464 | Radiator |
| 3320 | 516012019 | Protection Decal |
| 3350 | 509001301 | Fan Ass'y |
| 3360 | 509001437 | Support |
| 3380 | 293720130 | Overmolded Grommet |
| 3390 | 293900151 | Bushing |
| 3395 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 3410 | 219704547 | Hose 6,35 Mm Id 4000Mm Long |
| 3420 | 293650025 | Oetiker Gear Clamp |
| 3440 | 293650042 | Oetiker Clamp |
| 4050 | 250200082 | Flat Washer |
| 8100 | 509001259 | Support |
| 8110 | 207562054 | Hex. Flange Screw S.GRIP M6 X 20 |
