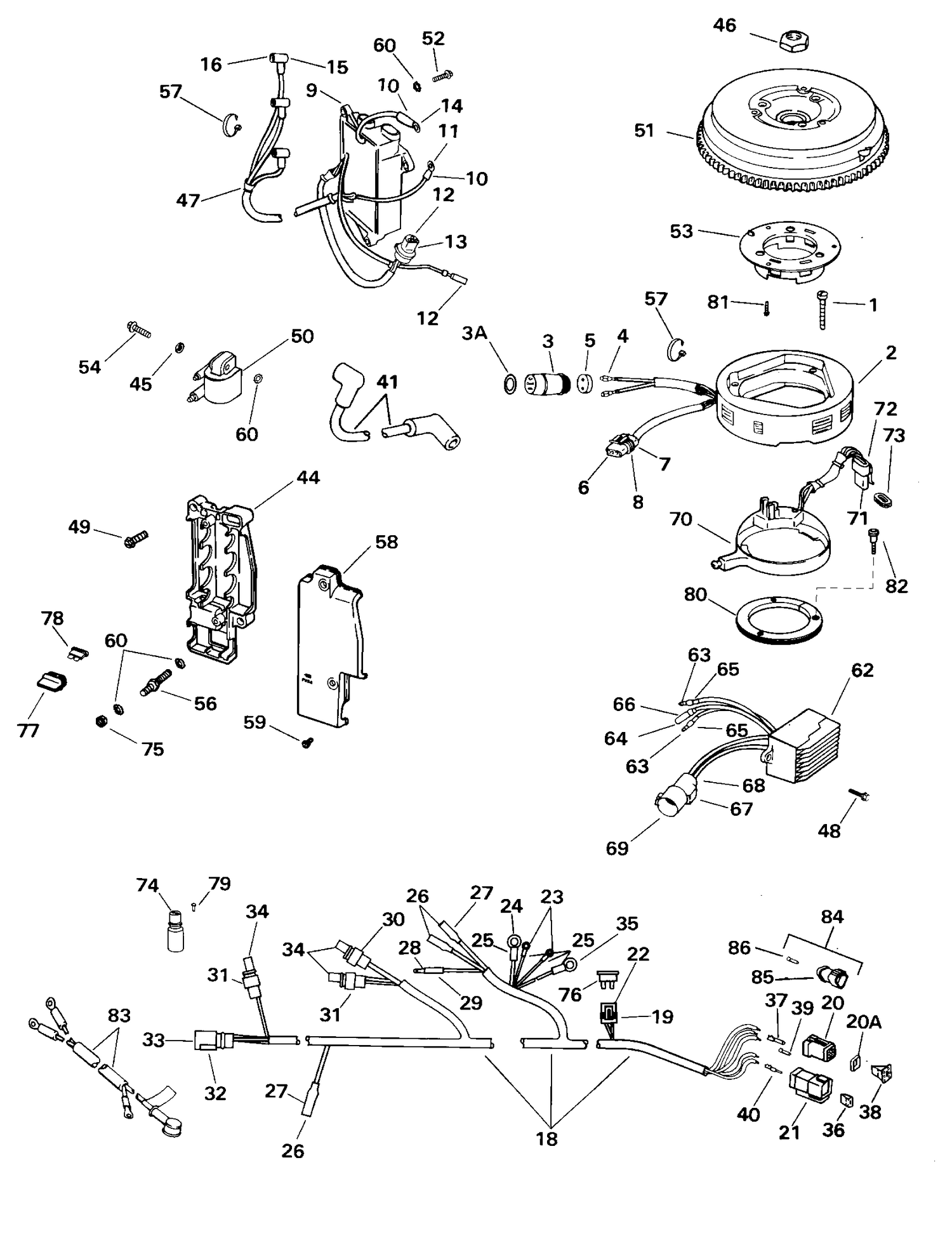

IGNITION SYSTEM - K, E, EL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 0586472 | POWER PACK |
| 41 | 0584925 | LEAD ASSY., Ignition coil |
| 50 | 0586323 | COIL ASSY. |
| 51 | 0584887 | FLYWHEEL ASSY. |
| 53 | 0514372 | ENCODER |
| 57 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 70 | 0584824 | SENSOR ASSY. |
| 80 | 0340842 | SENSOR SUPPORT |
| 81 | 0335739 | SCREW, Conn. brkt. to mntg. brkt. |
| 82 | 0340867 | SCREW, Sensor support |
| 83 | 0584381 | CÂBLE DE BATTERIE |
