Home / BRP / 2014 / TUNDRA / TUNDRA XTREME 600HOE XU, 2014 000GLEA00 000GLEB00 / 07- Steering

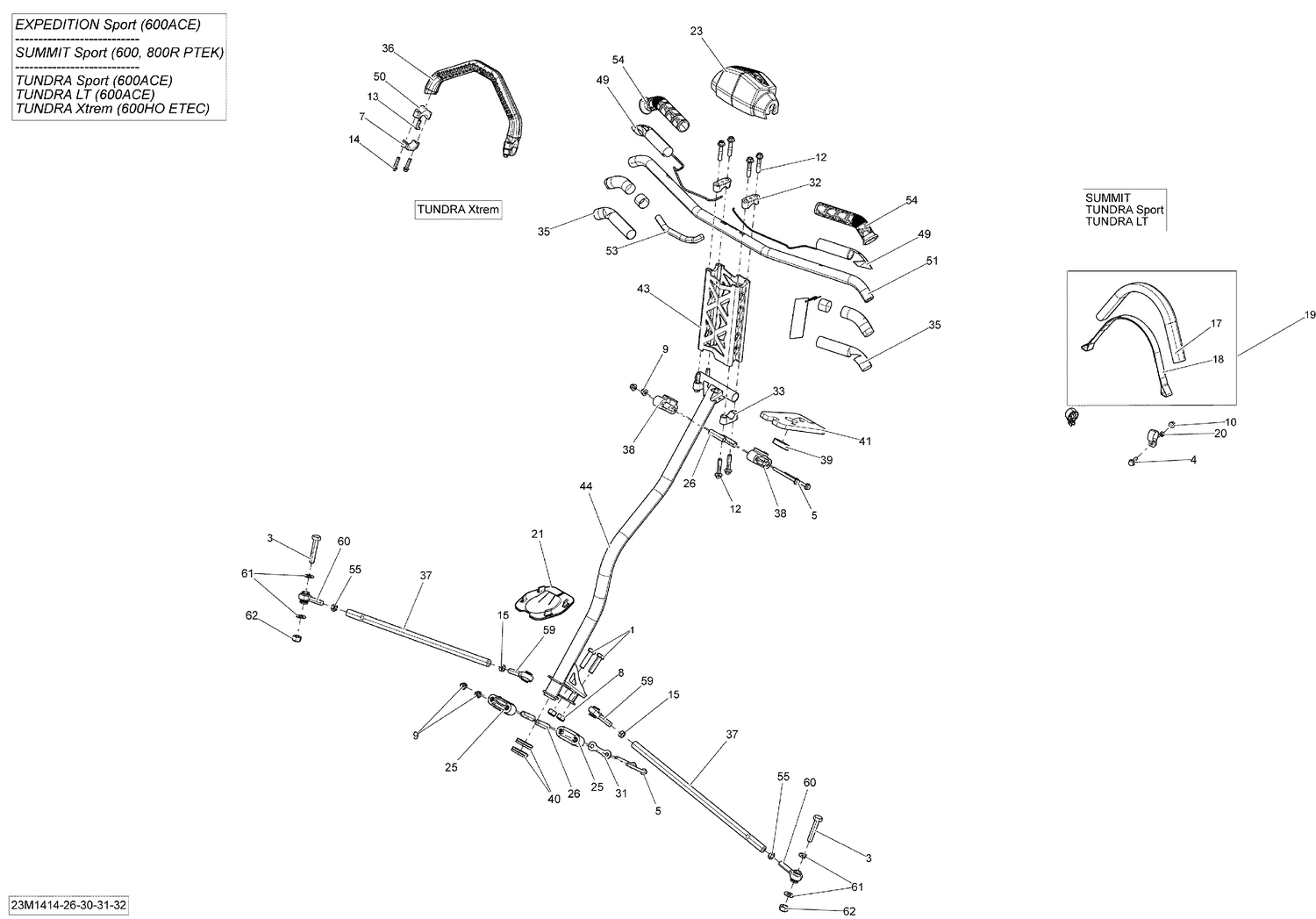

07- Steering

07- Steering

Parts (41)

RefPart NumberDescription
1 207004034 Hex. Screw M10 X 1.5 X 40
3 207004544 Hex. Screw M10 X 45
4 XXX Not Available As Spare Parts
5 207686534 Hex. Flange Screw M8 x 65
7 719000049 Clamps
8 232500416 Elastic Stop Nut M10
9 233281414 Hex. Flange Elastic Nut M8
10 XXX Not Available As Spare Parts
12 250000352 Hex. Flange Screw M8 X 40
13 250000779 Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
14 250000447 Hex. Flange Screw M6 X 25
15 250100016 LH Threaded Hex. Jam Nut M10
17 XXX Not Available As Spare Parts
18 XXX Not Available As Spare Parts
19 XXX Not Available As Spare Parts
20 XXX Not Available As Spare Parts
21 XXX Not Available As Spare Parts
23 506152192 Steering Pad
25 506152217 Lower Half-Housing
26 506152388 Lower Housing Bushing
31 506152389 Stopper Plate
32 506152751 Steering Support This part replaces 506152395.
33 506152751 Steering Support This part replaces 506152395.
35 506153176 Thermal Insulation This part replaces 506152548.
36 506152460 Moulding Strap
37 506152377 ROD_LINK - Call your local BRP dealership
38 506152508 Upper Half-Housing
39 506152509 Upper Anti-Vibration Gasket
40 506152518 Lower Vibration Ring
41 506152521 Bushing
43 860200821 Extension Kit ( 205mm )
44 506152962 Steering Column This part replaces 506152584.
49 506152798 Heating Element 32 Watt 3 Wires This part replaces 506152665.
50 506152703 Black Support Plate
51 506152709 Handle Bar, Non Dyed Clear Anodizing
53 219704427 LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
54 506152560 Grip 148mm
55 732610010 RH Threaded Hex. Jam Nut M10
59 506152081 LH Thread Ball Joint
60 506152019 RH Threaded Ball Joint
61 506152582 Washer
