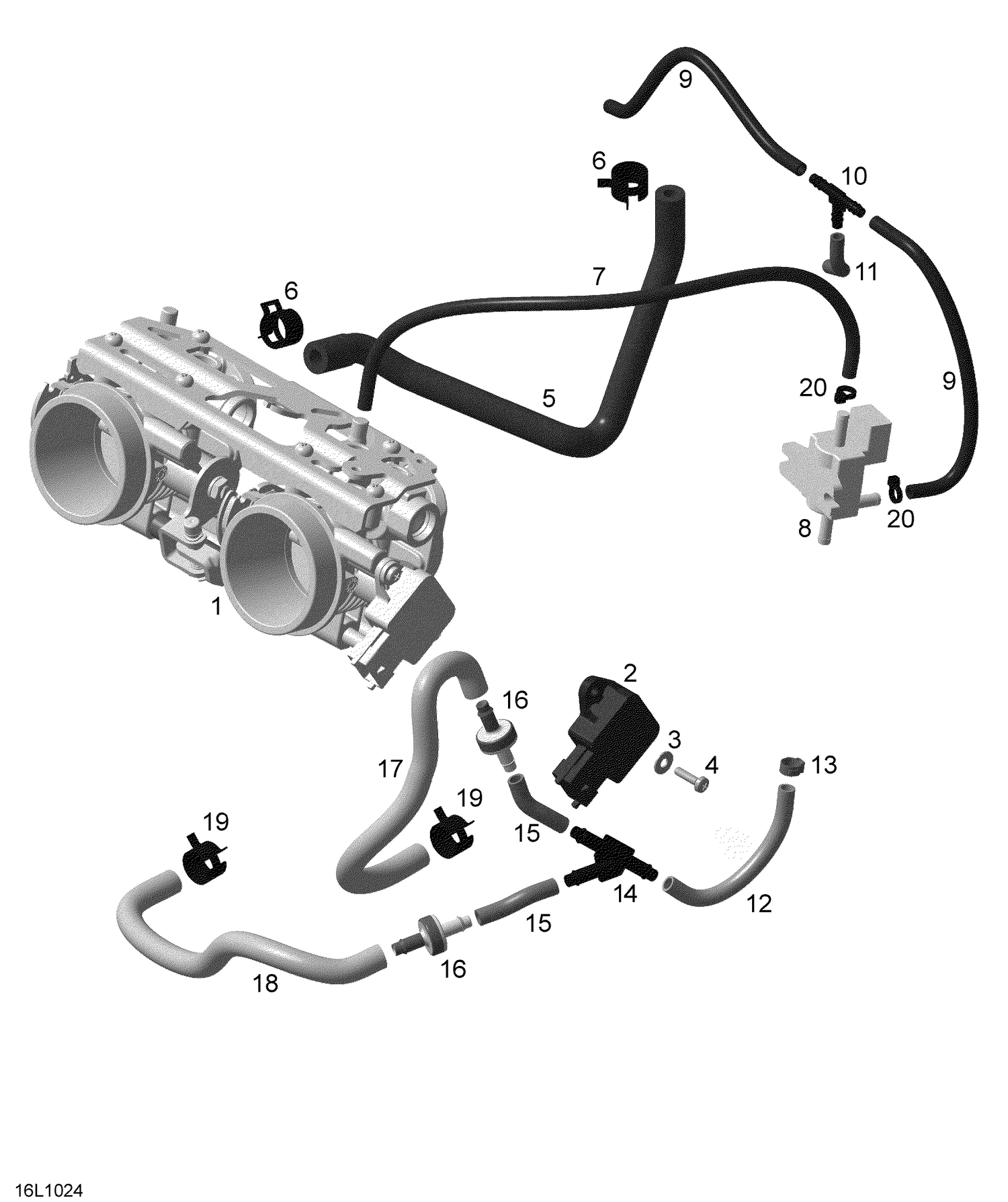

02- Throttlebody
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420892132 | THROTTLE BODY - Call your local BRP dealership |
| 2 | 420866120 | Position Sensor This part replaces 270000251. |
| 3 | 234041600 | Washer |
| 4 | 208641660 | Screw M4 x 16 |
| 5 | 420460860 | HOSE - Call your local BRP dealership |
| 6 | 420853511 | Clamp |
| 7 | 420660577 | Screw M5 x 10 |
| 8 | 270600005 | Solenoid valve |
| 9 | 420660571 | Pressure line 180mm |
| 10 | 293710068 | T-fitting |
| 11 | 420660572 | HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership |
| 12 | 420460852 | HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership |
| 13 | 420853658 | Clamp |
| 14 | 293710059 | T-Fitting This part replaces 420460635. |
| 15 | 420460851 | HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership |
| 16 | 420660543 | Check valve |
| 17 | 420460782 | MOLDED HOSE - Call your local BRP dealership |
| 18 | 420460786 | MOLDED HOSE - Call your local BRP dealership |
| 19 | 420853511 | Clamp |
