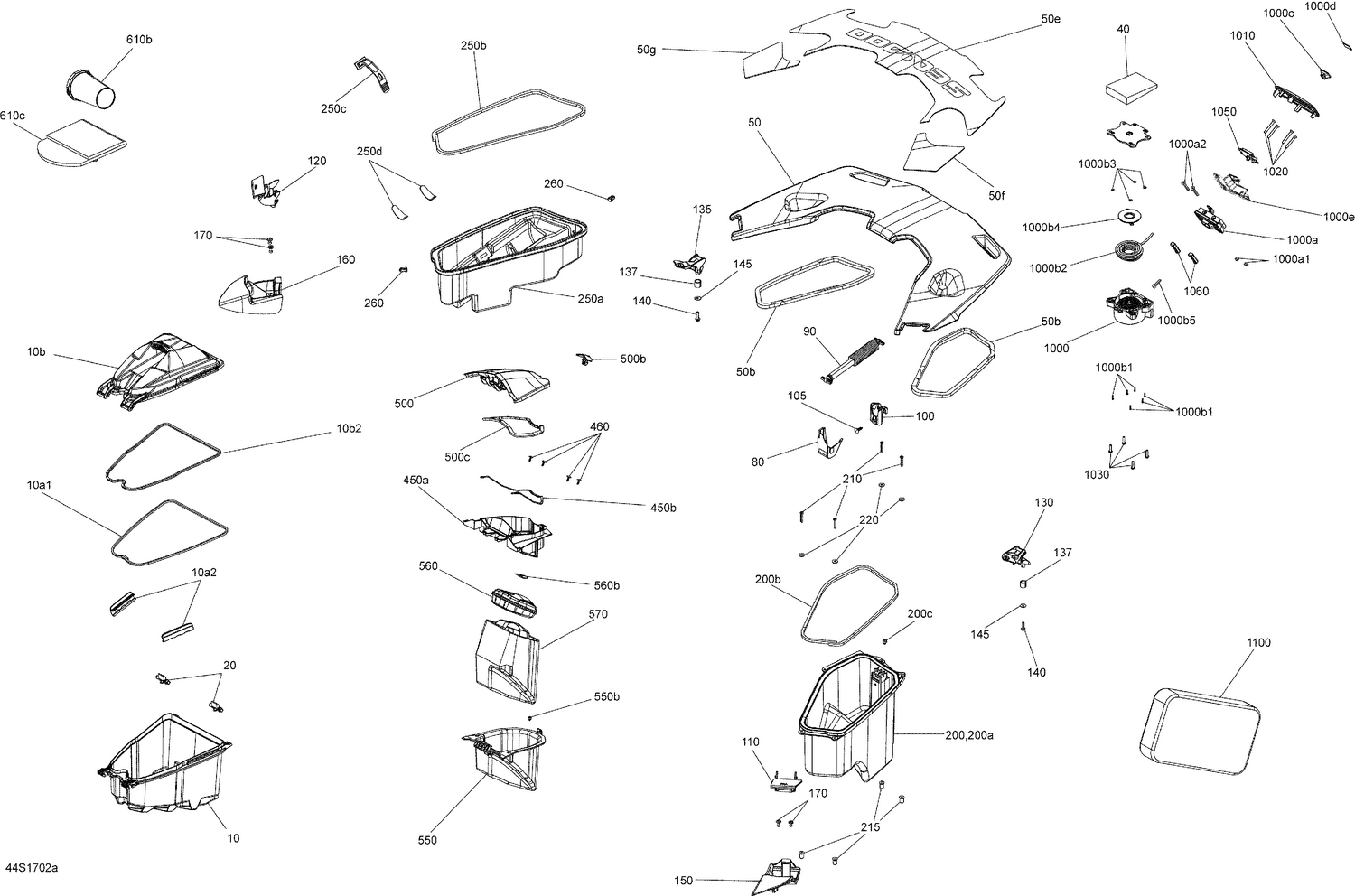

09- Storage Compartments - Model with Suspension
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 219704374 | Gasket 1000Mm Long |
| 10a2 | 269501609 | Clip |
| 10b2 | 293250210 | NEOPRENE SEAL - Call your local BRP dealership |
| 20 | 264000024 | Latch |
| 50b | 219704375 | Was 293250186 Gasket |
| 50e | 291002585 | Rear Platform Carpet |
| 50f | 264000040 | ANTI SLIP MAT_DECK FL - Call your local BRP dealership |
| 50g | 264000041 | ANTI SLIP MAT_DECK FR - Call your local BRP dealership |
| 80 | 264000092 | Stiffener |
| 90 | 264000099 | Shock Ass'y |
| 100 | 264000093 | STIFFENER - Call your local BRP dealership |
| 105 | 293730006 | Black, Dart |
| 110 | 264000020 | LH Latch |
| 120 | 264000021 | RH Latch |
| 130 | 264000003 | LH PIVOT SUPPORT - Call your local BRP dealership |
| 135 | 264000032 | RH PIVOT SUPPORT - Call your local BRP dealership |
| 137 | 264000042 | SPACER - Call your local BRP dealership |
| 140 | 243162560 | Hex. Flange Screw M6.81 X 25, Plastite |
| 145 | 234062600 | Flat Washer M6, Stainless |
| 150 | 264000055 | LH LATCH BASE, BLACK - Call your local BRP dealership |
| 160 | 264000056 | RH LATCH BASE, BLACK - Call your local BRP dealership |
| 170 | 293150123 | Pop Rivet 3/16" |
| 200a | 264000097 | LH Tray |
| 200b | 219704378 | Gasket 3000Mm Long |
| 200c | 293830005 | Rubber Bumper |
| 210 | 205463560 | Socket Head Screw M6 X 35 |
| 215 | 250100150 | Expansion Nut M6 X 1 |
| 220 | 234062600 | Flat Washer M6, Stainless |
| 250a | 264000002 | RH Rear Tray |
| 250b | 219704378 | Gasket 3000Mm Long |
| 250c | 269502417 | Strap This part replaces 269500408. |
| 250d | 264000043 | TRAY PAD - Call your local BRP dealership |
| 260 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 450a | 264000112 | GLOVE BOX EXT. - Call your local BRP dealership |
| 450b | 219704381 | SEAL 1000MM LONG - Call your local BRP dealership |
| 460 | 293730011 | Black, Dart |
| 500b | 264000164 | Black, Latch This part replaces 264000091. |
| 500c | 293250367 | GASKET - Call your local BRP dealership |
| 550b | 293830005 | Rubber Bumper |
