Home / BRP / 2015 / EXPEDITION / Expedition SE 600 E-TEC, 2015 000SGFE00 / 10- Electrical System _38M1554

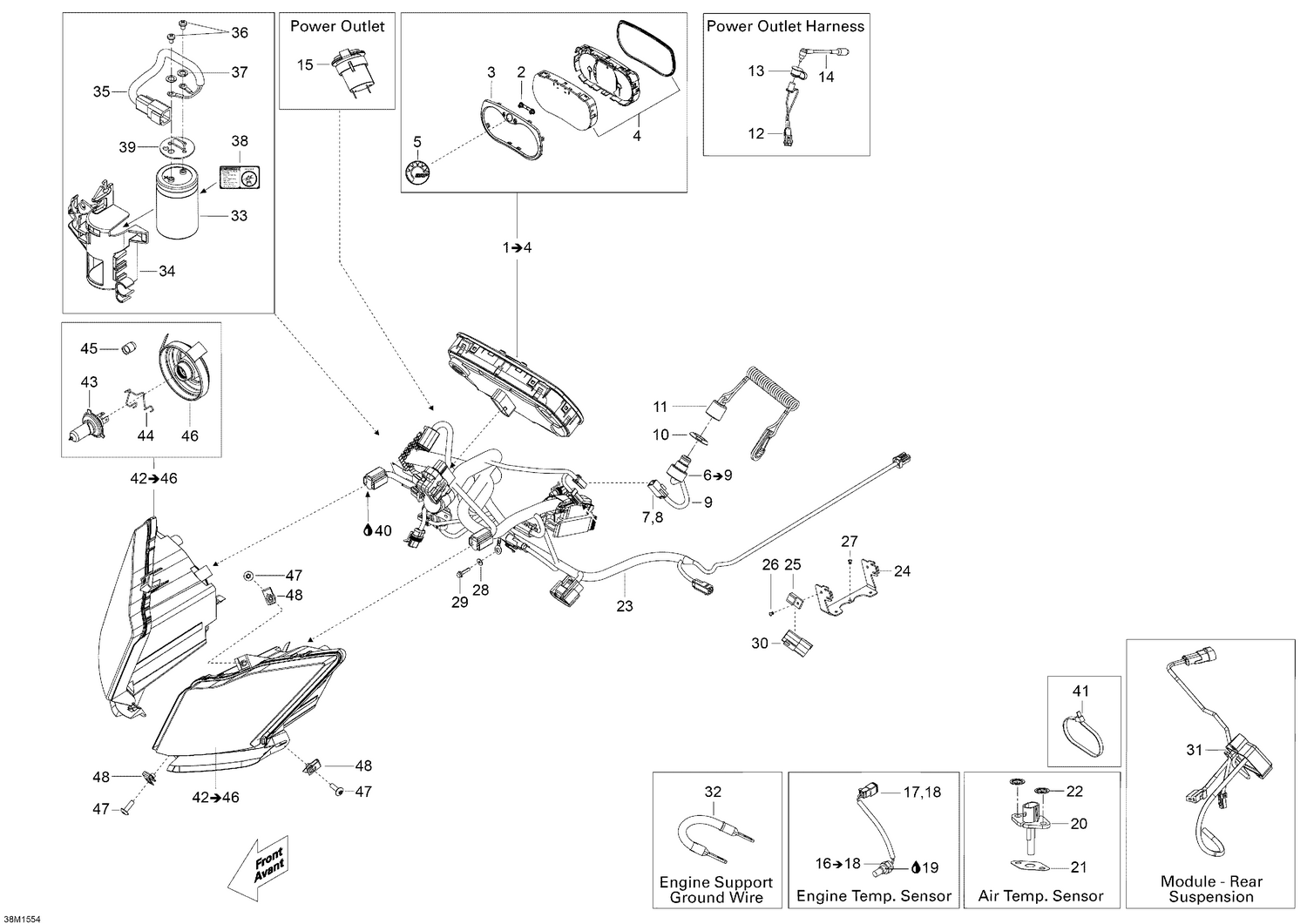

10- Electrical System _38M1554

10- Electrical System _38M1554

Parts (45)

RefPart NumberDescription
2 Not Available As Spare Part - Speedometer Button
3 Not Available As Spare Part - Gauge Ring
4 Not Available As Spare Part - Lens And Seal
5 516006224 BRP Logo 20MM x 2MM This part replaces 219902677.
7 515175232 Male Terminal
8 515175494 Male Housing, 3 Circuits
9 409902000 Tubing 12 mm
10 278002963 Safety Nut (DESS Switch)
11 515178284 DESS This part replaces 515177057.
12 515177837 Visor Harness This part replaces 515177187.
13 572103300 Cap
14 515175851 Extension
15 710001248 DC Outlet
17 515175670 Female Terminal Housing, 2 Circuits
18 278000632 Female Terminal
19 Not Available As Spare Part - Loctite 592, Pipe Sealant, 50 ml
20 515176366 Air Temperature Sensor
21 508000769 Seal
22 389804300 Push Nut
23 515177683 WIRING HARNESS MAIN - Call your local BRP dealership
24 515177925 Fusebox Support This part replaces 515177593.
25 270000141 Clip
26 293150037 Avdel Rivet 3/16"
27 390402200 Pop Rivet 3/16"
28 234141601 Lock Washer 4 mm
29 250000127 Torx Screw M4 X 8
30 515176234 FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership
31 515177125 Compressor Module
32 515177289 Ground Wire
33 515177272 Capacitor
34 515176607 Capacitor Support
35 515176605 Capacitor Harness
36 250000462 Socket Head Screw M10 X 32
37 250200026 Lock washer
38 516005515 CAPACITOR DECAL (ENGLISH) - Call your local BRP dealership
39 515177193 Cap
40 Not Available As Spare Part - Loctite 8104 (Dielectric Grease), 75ml
41 293750001 Tie Wrap 94 mm
41 293750008 Tie Wrap 368 mm
41 414115200 Tie-Rap 180 mm
43 515176274 Halogen Bulb, 60/55 W, 12 V ( H4 )
44 Not Available As Spare Part - Bulb Holder
45 515176498 Cap
46 219800280 Rubber Cap Protector This part replaces 515176499.
47 250000722 Torx Screw M6 X 20
