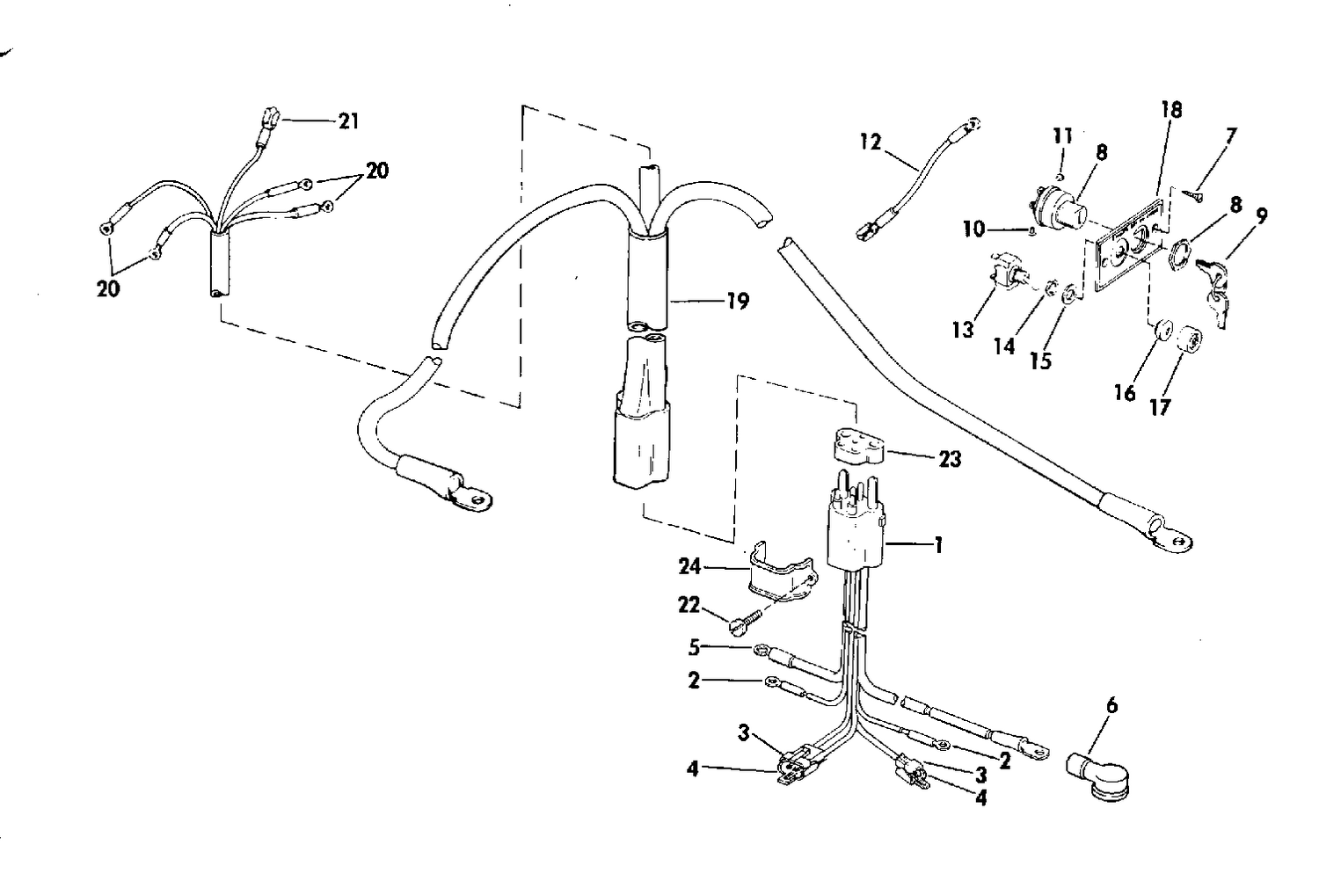

INSTRUMENT & CABLE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0385157 | CABLE ASSY, Conn to mtr |
| 7 | 0312691 | SCREW, Cash pannel |
| 8 | 0386947 | IGNITION SWITCH |
| 9 | KEY,Ignition | Ref: 10 0306559 *SCREW, Ignition switch 0306559 |
| 12 | 0279177 | LEAD ASSEMBLY IGNITION SWITCH TO CHOKE SWITC |
| 13 | 0975257 | SWITCH ASSEMBLLY |
| 15 | 0900696 | WASHER |
| 19 | 0385231 | CABLE ASSY, Instrument |
| 22 | 0310277 | SCREW, Clamp to lower cover |
| 23 | 0317327 | GASKET, Cable connector |
| 0385159 | 0385159 | INISTRUMENTS & CABLE ASSY. |
