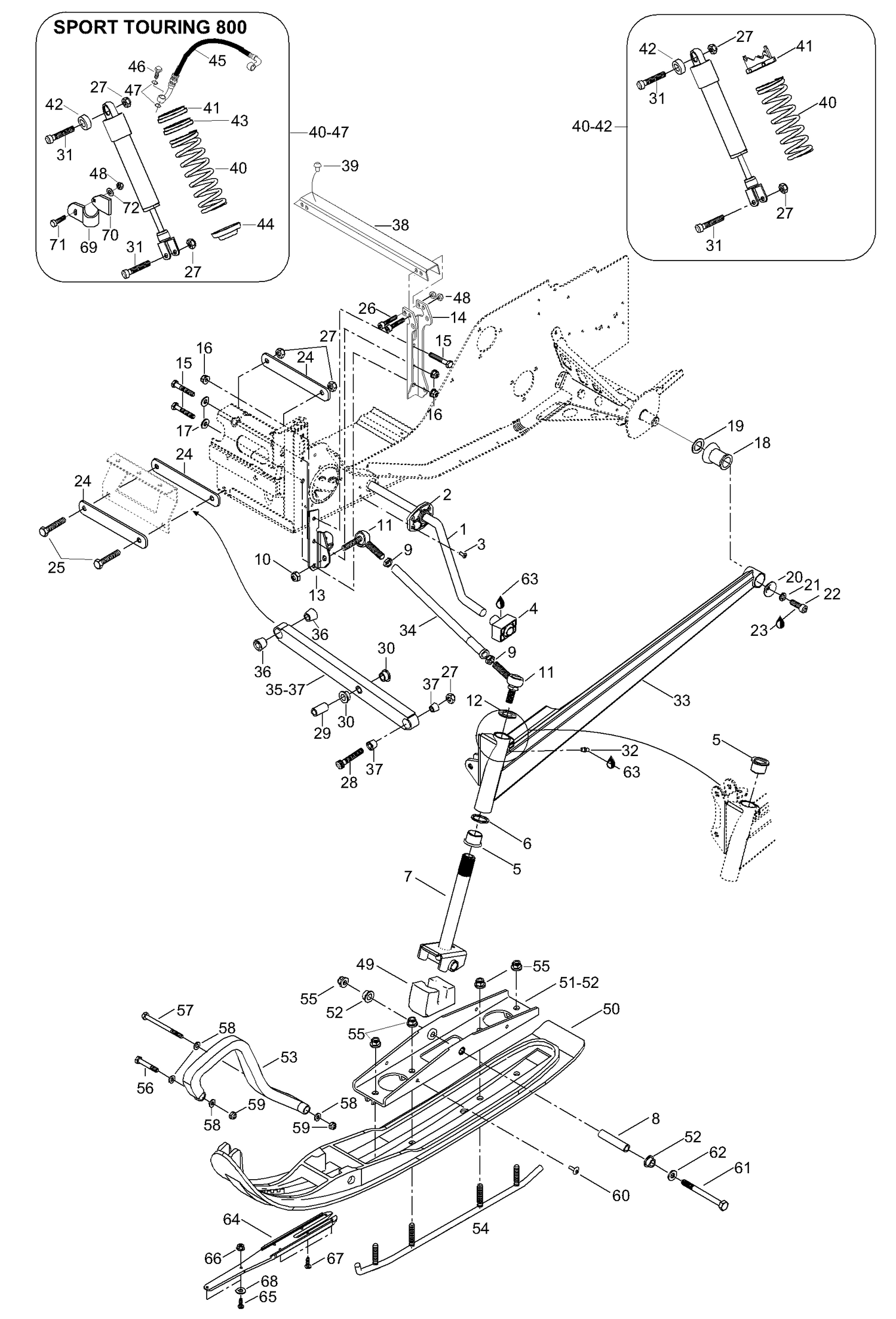

08- Front Suspension

08- Front Suspension

Parts (71)

RefPart NumberDescription
1 5246797 Sway bar
2 505070191 Sleeve
3 36009 Rivet
4 505070117 BALL JOINT BLOCK - Call your local BRP dealership
5 505070003 Bushing
6 505070004 WASHER - Call your local BRP dealership
7 5245502 Ski leg
8 506133300 Spacer
9 33048 Jam nut M12
10 33087 Jam nut elastic M12
11 31092 Ball joint
12 20074 Lock washer
13 5348063 L.H. Upper arm bracket
13 5348064 R.H. Upper arm bracket
14 5245488 Shock bracket
14 5246395 Shock bracket
15 40010 Screw M8x55
16 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 570062200 DAMPER - Call your local BRP dealership
19 503146700 WASHER - Call your local BRP dealership
20 506079600 CUP - Call your local BRP dealership
21 20014 Spring washer
22 40289 Allen screw M8x25
23 293800060 Loctite 243, 10ml
24 5346112 Support plate
25 40814 Screw M10x110
26 40345 Allen screw M6x40
27 33012 Nut elastic M10
28 40136 Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership
29 5441433 Bushing
30 31088 Bearing
31 40837 Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership
32 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
33 5247294 Swing arm, R.H. moond.
33 5247295 Swing arm, L.H. moond.
34 5346122 Upper arm
36 5447769 Inner sleeve
37 5447770 Outer sleeve
38 5347134 Bracket
39 28143 Rubber plug
41 505073625 Adjustment Cam This part replaces 503183700.
42 230055 Rubber bushing
43 Not Available As Spare Part - Guide spring - DOES NOT APPLY TO THIS MODEL
44 Not Available As Spare Part - Guide spring - DOES NOT APPLY TO THIS MODEL
45 Not Available As Spare Part - Hose - DOES NOT APPLY TO THIS MODEL
46 Not Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL
47 Not Available As Spare Part - O-ring - DOES NOT APPLY TO THIS MODEL
48 33010 Lock Nut M6 (1=10Pcs)
49 570070400 Stopper-ski
50 505070189 Ski liner
52 505070001 BUSHING - Call your local BRP dealership
53 505070963 Plastic handle This part replaces 572101000.
54 5347375 Runner pair
55 33074 NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership
56 40009 Screw M8x50
57 40869 Screw M8x100
58 234081410 Flat Washer 8 mm This part replaces 20004.
59 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
60 390911100 RIVET_POP 1/4 - Call your local BRP dealership
61 40814 Screw M10x110
62 20105 Washer, hardened
63 413711500 SYNTHETIC GREASE - Call your local BRP dealership
64 505070232 PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership
65 250000015 Allen screw M5x25
66 233251434 Flanged Elastic Nut M5 This part replaces 33062.
67 40901 Screw
68 20003 Washer
69 Not Available As Spare Part - Bracket - DOES NOT APPLY TO THIS MODEL
70 Not Available As Spare Part - Bracket plate - DOES NOT APPLY TO THIS MODEL
71 Not Available As Spare Part - Locking screw M6x16 - DOES NOT APPLY TO THIS MODEL
