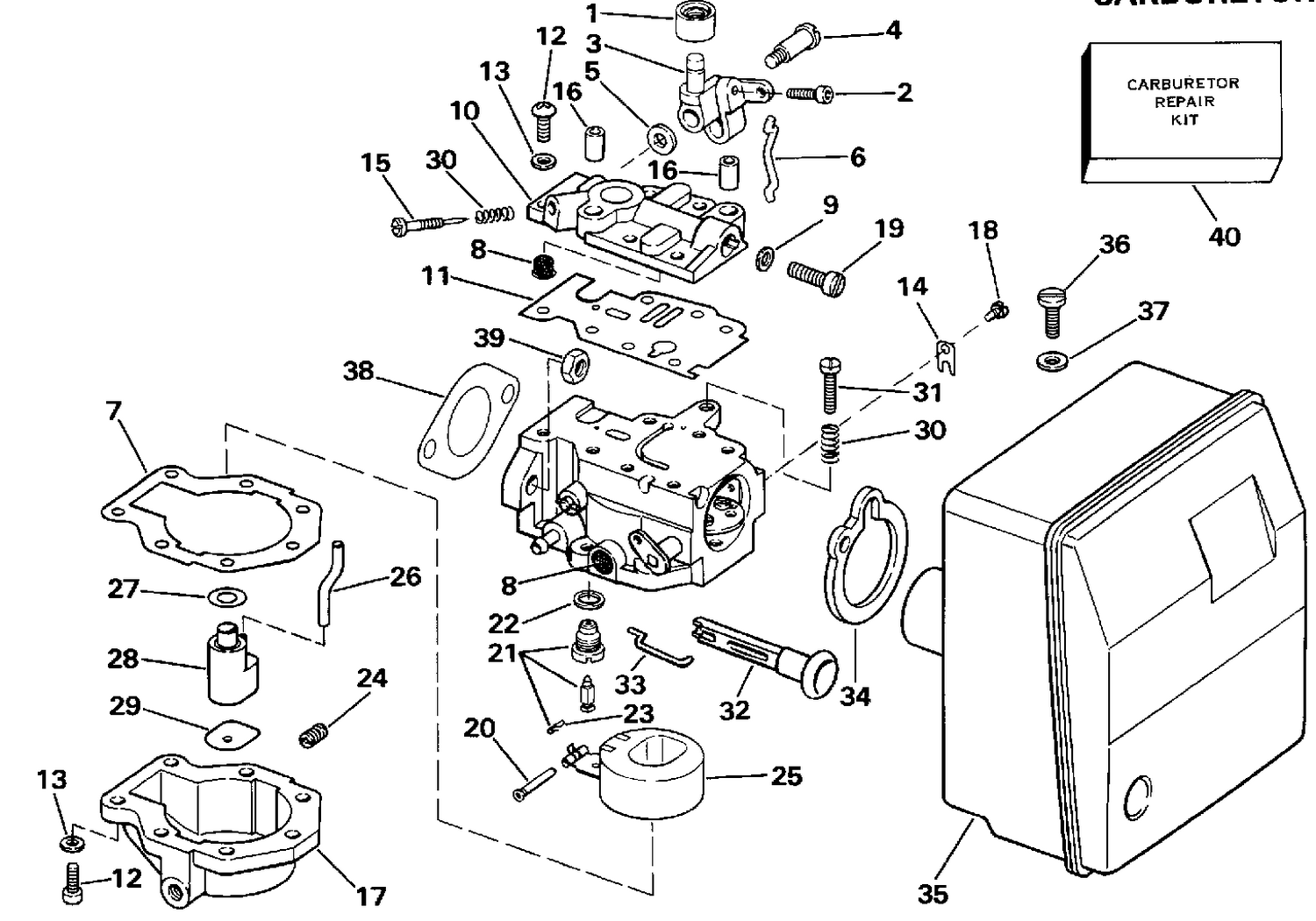

| Ref | Part Number | Description |
|---|
| 10 |
0334049 |
COVER, Carb. body |
| 11 |
0334043 |
GASKET, Cover |
| 13 |
0331831 |
WASHER |
| 15 |
0334042 |
NEEDLE VALVE, Slow speed |
| 16 |
0334047 |
SLEEVE, Cover |
| 17 |
0398068 |
FLOAT CHAMBER This part replaces 0333116. |
| 23 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 24 |
0323708 |
HIGH SPEED ORIFICE, No. 50 |
| 26 |
0336567 |
FLEX TUBE This part replaces 0331740. |
| 27 |
0338883 |
GASKET, Upper This part replaces 0333347. |
| 28 |
0396605 |
NOZZLE WELL |
| 29 |
0333348 |
GASKET, Cover to housing |
| 32 |
0338965 |
CHOKE KNOB This part replaces 0335225. |
| 33 |
0335226 |
LINK, Choke knob |
| 34 |
0335389 |
SEAL, Air silencer to carb |
| 35 |
0433351 |
AIR SILENCER |
| 36 |
0331758 |
SCREW, Air horn to carburetor |
| 38 |
0318932 |
JOINT |
| 39 |
0328742 |
NUT |
| 0433496 |
0433496 |
CARBURETOR ASSY. |
| 0433497 |
0433497 |
CARBURETOR ASSY. |
