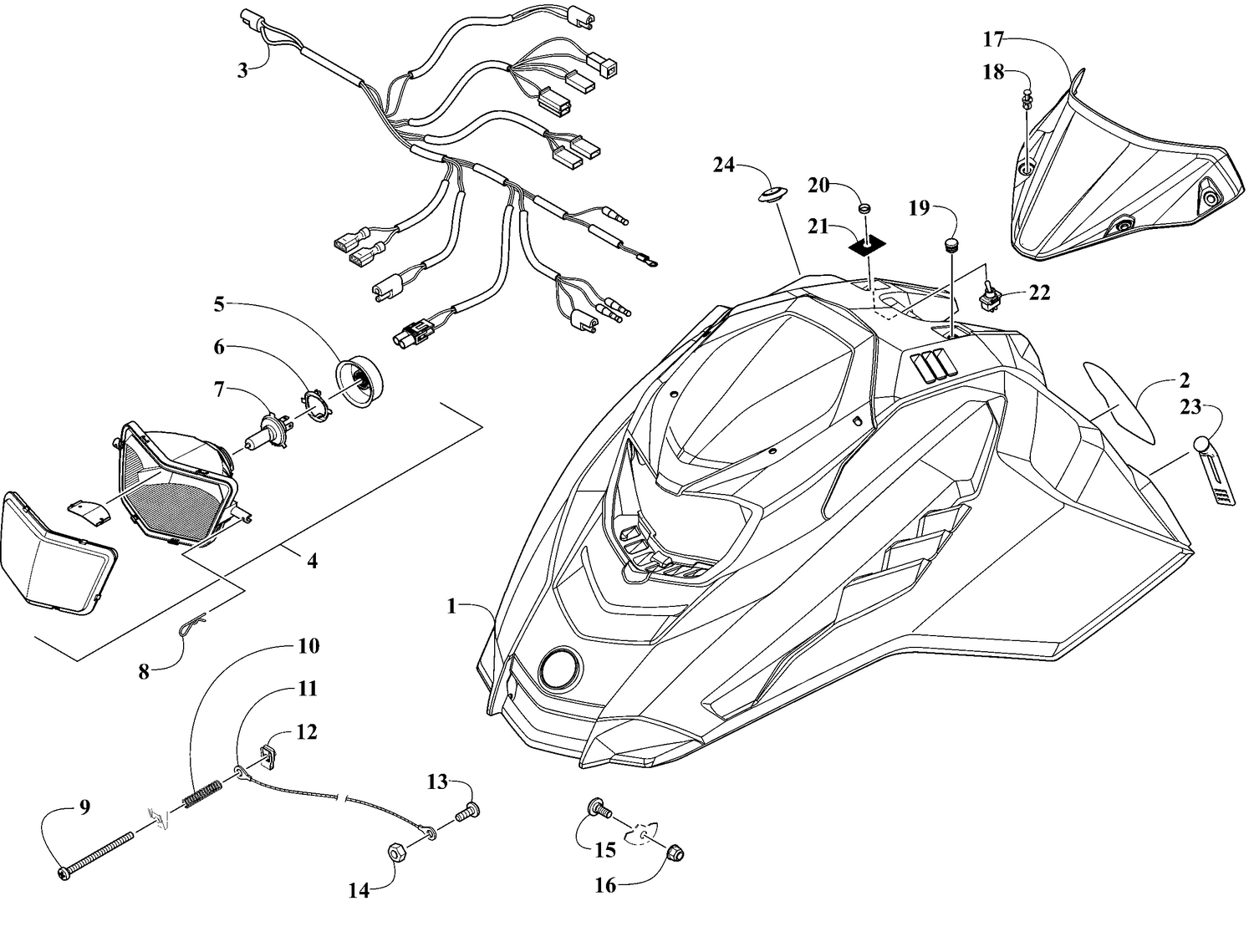

Hood, Headlight and Windshield
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 7718-164 | Hood |
| 2 | 8621-364 | Decal Hood Warning |
| 3 | 1686-794 | Main Wiring Harness |
| 4 | 0609-970 | Headlight Ass'y |
| 5 | 0609-996 | Boot |
| 6 | 0409-097 | Retainer H/L |
| 7 | 0609-991 | Headlight Bulb |
| 8 | 0623-847 | Hairpin Clip |
| 9 | 2623-256 | Screw W/Nylon Patch M6X90 |
| 10 | 0623-466 | Adjuster SPring |
| 11 | 7606-964 | Hood Cable |
| 12 | 0423-577 | Type U Nut |
| 13 | 0623-420 | Hex Screw Washer Head #10-24X5 |
| 14 | 8041-246 | Hex Lock Nut #10-24 |
| 15 | 2623-042 | Screw Shoulder M6-1.0 |
| 16 | 8427-603 | Hex Lock Nut M6X1.0 |
| 17 | 1616-352 | Windshield |
| 18 | H667790 | Removable Rivet |
| 19 | 1602-917 | Plastic Cap |
| 20 | 0609-905 | Black, Knurled Nut |
| 21 | 4621-653 | Decal Handwarmer |
| 22 | 0609-904 | Toggle Switch SPST |
| 23 | 1606-930 | Hold-Down Strap |
