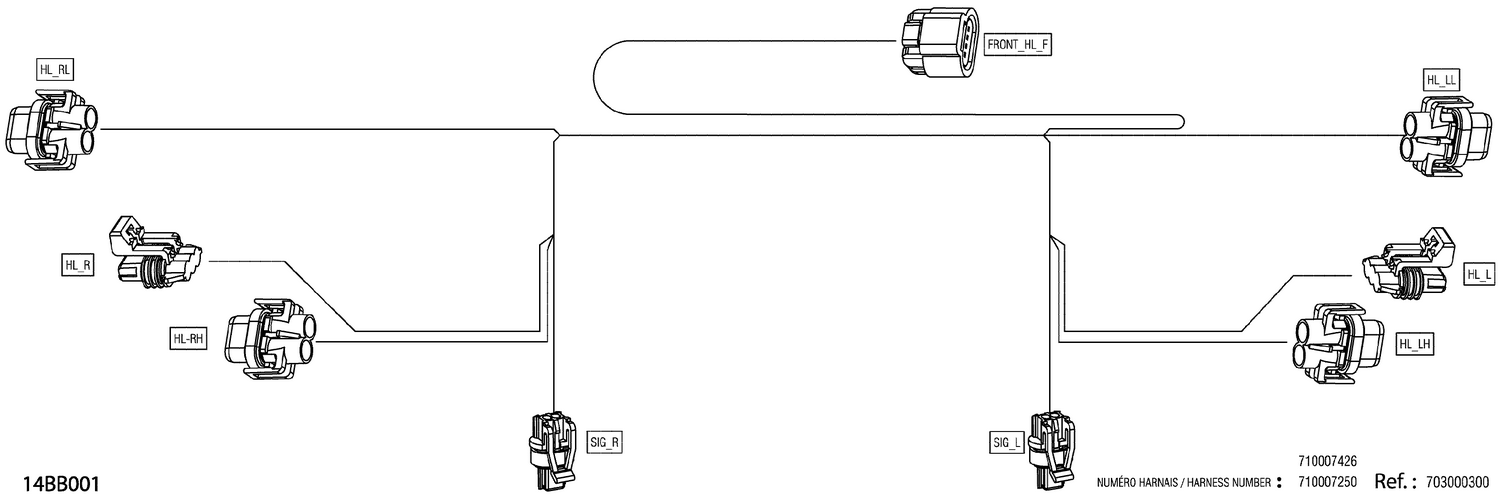

08- Electric - Front Wiring Harness - 710007426
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 340 | 710007426 | Front Wiring Harness |
| 340a | 409012700 | Diode |
| 340b | 409012700 | Diode |
| 340c | 515177186 | Female Housing |
| 340d | 710001222 | Lock |
| 340e | 710006398 | Lock |
| 340f | 710001225 | Cap |
| 340g | 710001233 | Seal |
| 340h | 710001229 | Terminal |
| 340j | 710000645 | Housing |
| 340m | 278001482 | Seal |
| 340n | 710001134 | Female Terminal |
| 340p | 710000645 | Housing |
| 340r | 278001482 | Seal |
| 340s | 710001134 | Female Terminal |
| 340t | 515177192 | Female Housing, 2 Circuits |
| 340u | 710001152 | Lock |
| 340v | 710001163 | Wire Seal |
| 340w | 710001164 | Female Terminal |
| 340x | 515177192 | Female Housing, 2 Circuits |
| 340y | 710001152 | Lock |
| 340z | 710001163 | Wire Seal |
