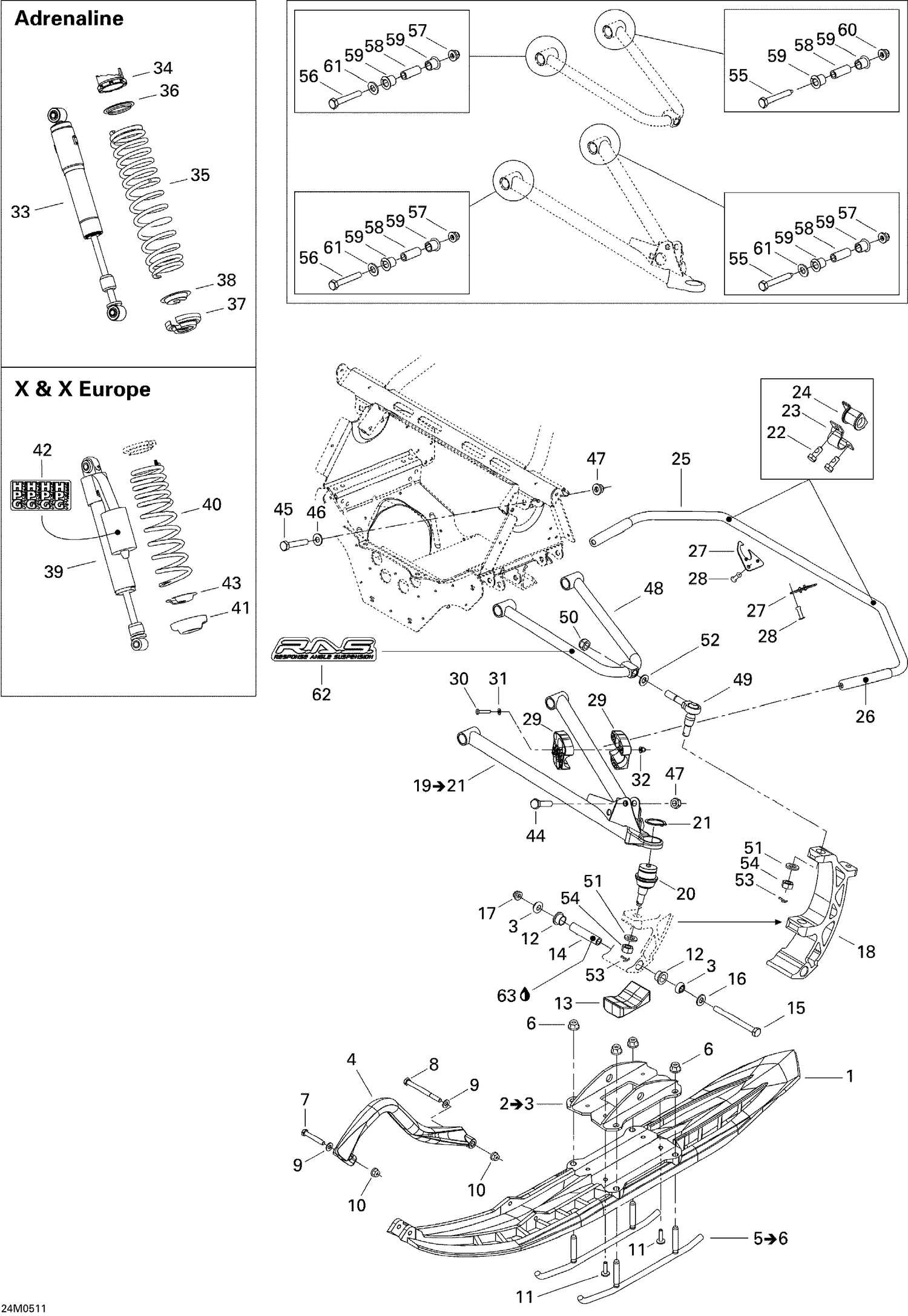

07- Front Suspension And Ski
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070727 | Deep Black, Precision Ski |
| 3 | 505070001 | BUSHING - Call your local BRP dealership |
| 6 | 233201414 | Hex. Flange Elastic Nut M10 |
| 7 | 207085044 | Hex. Screw M8 X 50 |
| 8 | 207089044 | Hex. Screw M8 X 90 |
| 9 | 234081410 | Flat Washer 8 mm |
| 10 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 293150090 | RIVET_POP 1/4 - Call your local BRP dealership |
| 12 | 505072690 | Leg Bushing This part replaces 505070954. |
| 13 | 505070671 | Ski Stopper |
| 14 | 506133300 | Spacer |
| 15 | 250000001 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 16 | 732900049 | Washer |
| 17 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 18 | 505071232 | SKI LEG - Call your local BRP dealership |
| 20 | 505071658 | Ball Joint |
| 21 | 293370035 | Circlip |
| 22 | 250000118 | Hex. Screw With Nylon |
| 23 | 506095800 | CLAMP - Call your local BRP dealership |
| 24 | 505070664 | LH BUSHING - Call your local BRP dealership |
| 24 | 505070912 | RH BUSHING - Call your local BRP dealership |
| 25 | 505070948 | STABILISATOR - Call your local BRP dealership |
| 26 | 505071039 | STABILISATOR BOOT - Call your local BRP dealership |
| 27 | 505071253 | PLUG - Call your local BRP dealership |
| 28 | 293150103 | Pop Rivet 3/16" |
| 29 | 505071268 | RH SLIDER HALF - Call your local BRP dealership |
| 29 | 505071269 | LH SLIDER HALF - Call your local BRP dealership |
| 30 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 31 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 32 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 44 | 207005544 | Hex. Screw M10 X 55 |
| 45 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 46 | 503189564 | Washer |
| 47 | 233201414 | Hex. Flange Elastic Nut M10 |
| 48 | 505071727 | UPPER ARM - Call your local BRP dealership |
| 49 | 505072257 | Upper Ball Joint This part replaces 505071679. |
| 50 | 250000047 | Hex. Flange Elastic Nut M12 |
| 51 | 234021410 | Flat Washer 12 mm |
| 52 | 503189276 | Washer |
| 53 | 211400017 | Cotter Pin |
| 54 | 232221414 | Hex. Castellated Nut M12 |
| 55 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000216. |
| 56 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000218. |
| 57 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 58 | 505070567 | Bushing |
| 59 | 505070566 | Arm Bushing |
| 60 | 232501416 | Elastic Flange Nut M10 |
| 61 | 503189564 | Washer |
| 62 | 516002747 | R.a.s. Suspension Decal |
