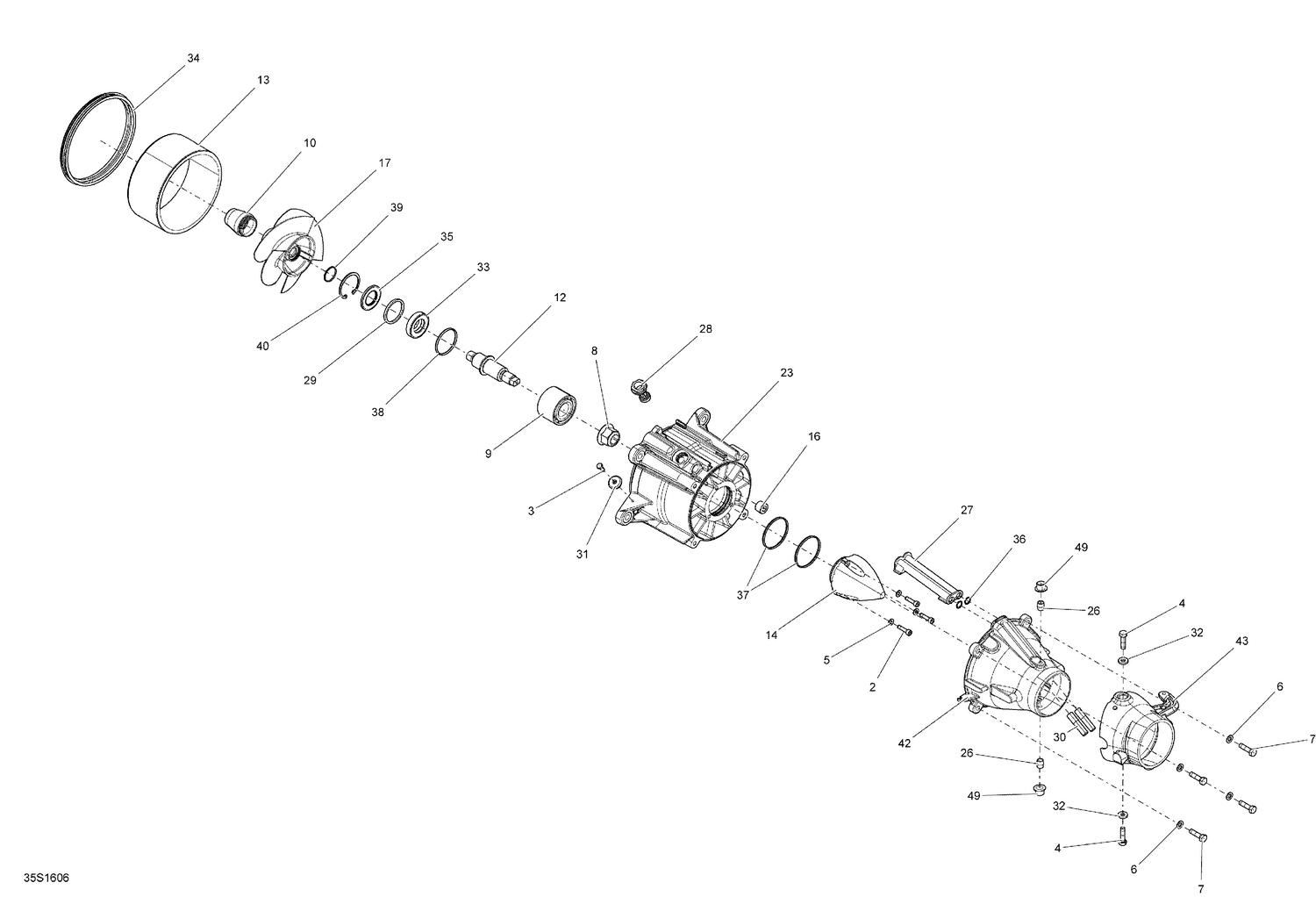

05- Pump
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 205562560 | Socket Head Screw M6 X 25, Scotch Grip |
| 3 | 207361660 | Hex. Screw M6 X 16, Scotch Grip |
| 4 | 207383060 | Hex. Screw M8 X 30, Scotch Grip |
| 5 | 234061600 | Stainless Flat Washer M6 |
| 6 | 234080600 | Flat Washer M8, Stainless |
| 7 | 250000526 | Hex. Screw M8 X 30, Scotch Grip |
| 8 | 250100104 | Elastic Flange Nut M20 |
| 9 | 267000900 | Angled Bearing |
| 10 | 271002228 | Guard This part replaces 267000458. |
| 12 | 267000388 | Impeller Shaft |
| 14 | 267000428 | Impeller Cover |
| 16 | 267000469 | Black, Plastic Plug |
| 23 | 271002018 | Impeller Housing This part replaces 267000852. |
| 26 | 271001816 | Sleeve This part replaces 271000122. |
| 27 | 271000785 | Water Outlet |
| 28 | 267000282 | Plug |
| 29 | 271001393 | Spacer |
| 30 | 271001885 | Siphon Tube |
| 31 | 271001920 | Anode Zinc |
| 32 | 293050001 | Flat Washer M8.5 x 18 |
| 33 | 271002071 | Seal This part replaces 293200086. |
| 34 | 293200087 | Neoprene Seal |
| 35 | 293200089 | Oil Seal |
| 36 | 293300013 | O-Ring |
| 37 | 293300086 | O-Ring |
| 38 | 293300090 | O-Ring |
| 39 | 293300114 | O-Ring |
| 40 | 293370038 | Circlip |
