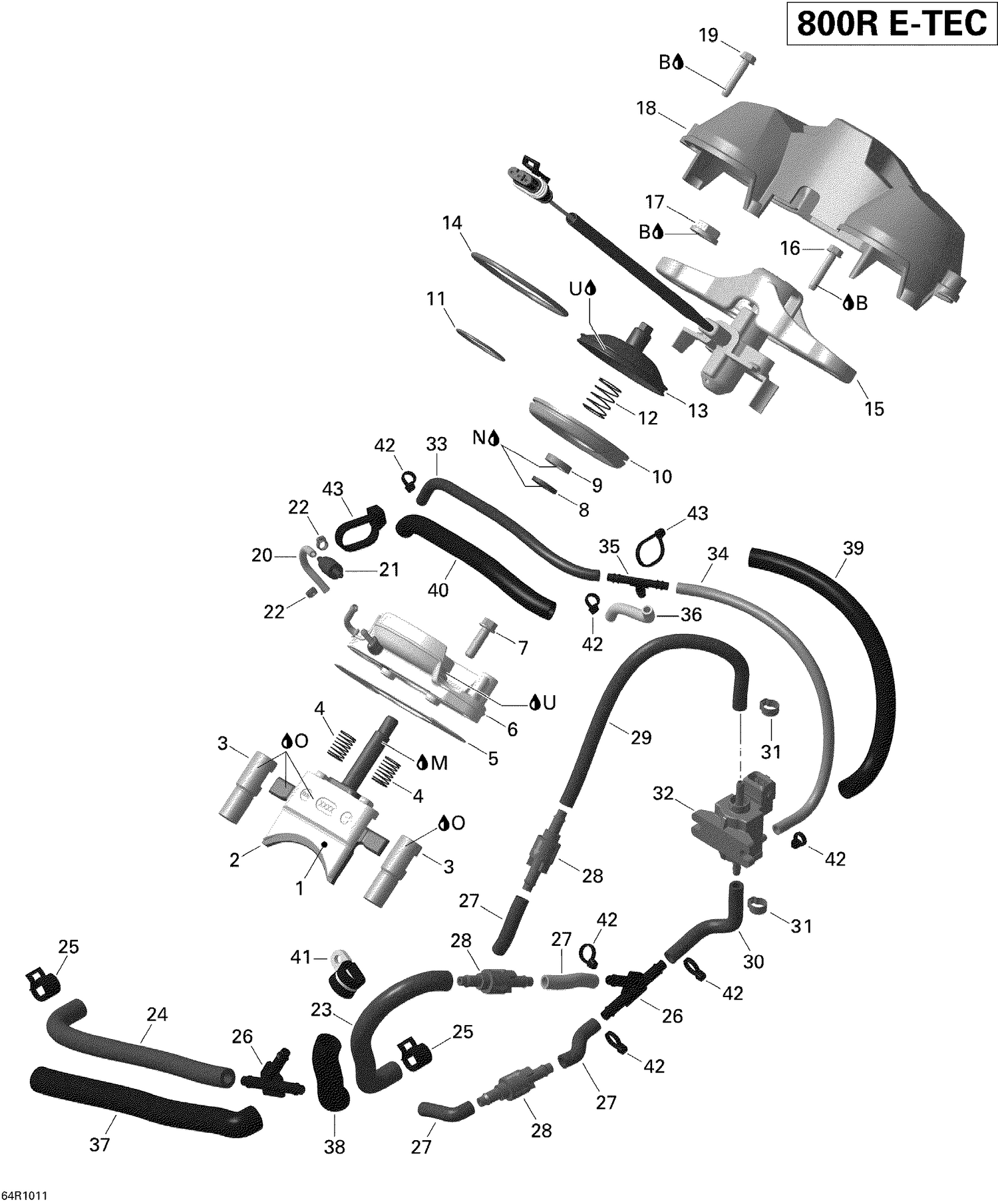

01- 3D Rave — Parts Catalog

Parts (47)

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
M	420297433	Molykote G-N, 50 g
N	413707000	Dow Corning 111, 150 g
O	Not	Available As Spare Part - Engine Oil
1	420854900	Upper Exhaust Valve
2	420854904	Lower Exhaust Valve This part replaces 420854908.
3	420854890	Exhaust Valve
4	420238558	Spring This part replaces 420238556.
5	420430032	Gasket
6	420854888	Valve Housing
7	420440207	Torx Flange Screw M6 X 20
8	420431380	Gasket Ring
9	420950732	Oil Seal This part replaces 420950730.
10	420260725	Bellows This part replaces 420260724.
11	420838255	Hose Spring
12	420238557	Spring
13	420854442	Valve Cover
14	420939286	Hose Spring This part replaces 420939285.
15	420854089	Position Sensor This part replaces 420854088.
16	420241271	Hex. Taptite Screw M5 X 25 This part replaces 420241270.
17	420942190	Nut M12 X 1.5
18	420910821	Cover This part replaces 420910820.
19	420241271	Hex. Taptite Screw M5 X 25 This part replaces 420241270.
20	219704404	Oil Hose 1500Mm Long
21	420956515	Check Valve Ass’y
22	420851508	Clamp
23	420460782	MOLDED HOSE - Call your local BRP dealership
24	420460782	MOLDED HOSE - Call your local BRP dealership
25	420853511	Clamp
26	293710059	Y-Fitting This part replaces 420460635.
27	420460851	HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership
28	420660543	Check Valve
29	219704410	Polyurethane Hose 10000Mm Long
30	420460852	HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership
31	420853658	Gear Clamp
32	270600005	Solenoid Valve
33	420660571	High Pressure Air Hose, 180 mm
34	420660575	HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership
35	293710068	T-Fitting
36	420660572	HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership
37	219704400	Was 409901800 Tubing (13 mm)
38	219704400	Was 409901800 Tubing (13 mm)
39	219704407	Tubing 10 MM 1000MM Long
40	219704407	Tubing 10 MM 1000MM Long
41	420851250	Clamp
42	293750001	Tie Wrap 94 mm
43	420866714	Tie Rap
