Parts Catalog

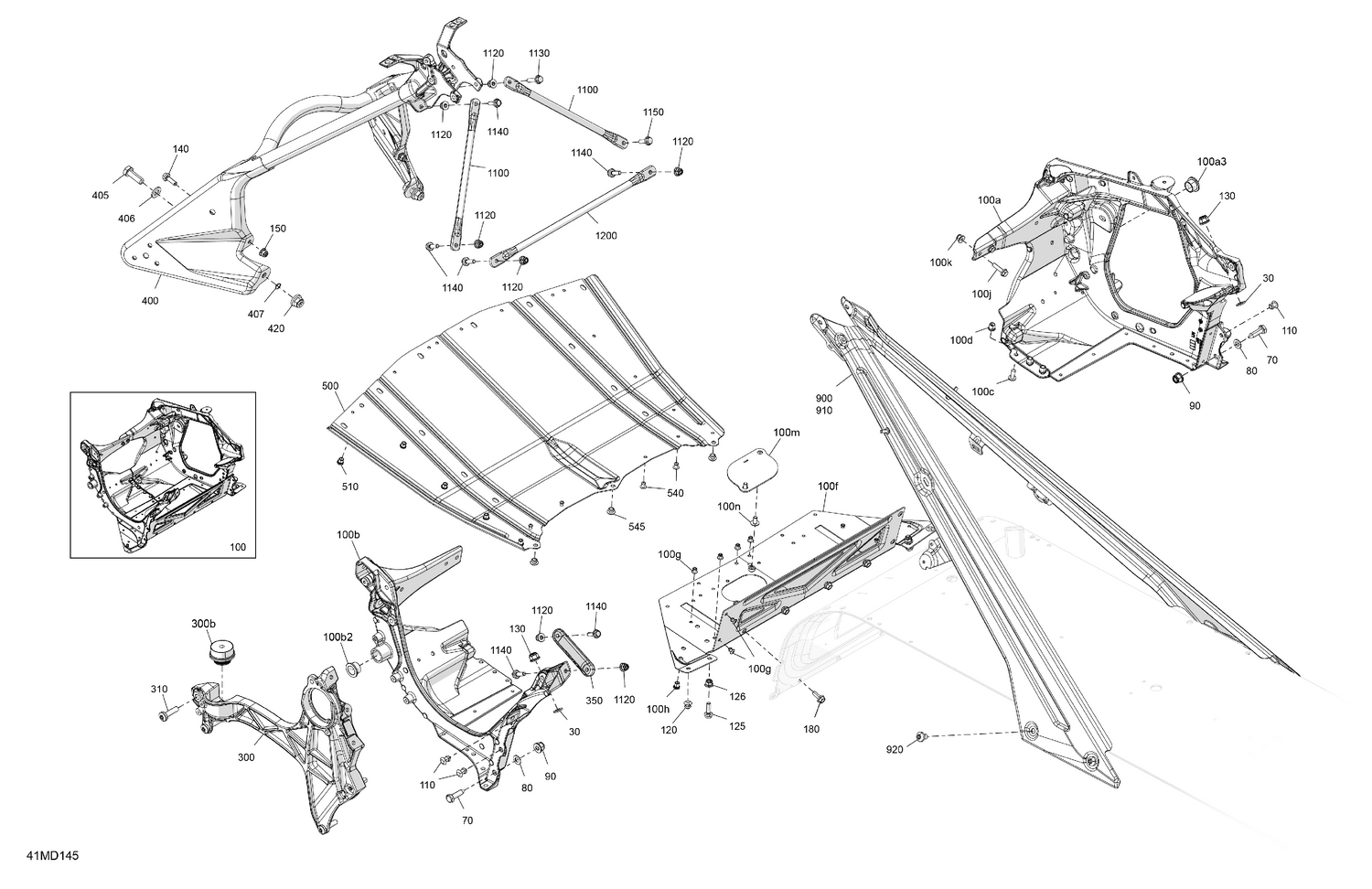

06- Frame - System - Front Section

Parts (43)

Ref	Part Number	Description
30	250200146	Conical Spring Washer M8
70	250000942	Hex Screw M8 X 30
80	234081410	Flat Washer 8 mm
90	233281414	Hex. Flange Elastic Nut M8
100a3	505072690	Leg Bushing
100b2	505072690	Leg Bushing
100c	293150148	Rivet Magna-Grip 6,4 X 50,8
100d	293150149	Collar Huck Magna-Grip 6.4
100f	518332715	Bottom Plate
100g	390909100	Avex Rivet
100h	293450268	Insert M5 X 0.8
100j	207662046	Hex. Flange Screw M6 X 20
100k	233261414	Hex. Flange Elastic Nut M6 x 1.0
100m	518332276	Oil Plate
100n	250000767	Torx Truss Screw M6 X 12
110	293150267	Rivet Ornit 6,5 X 16.5
120	293150265	Rivet Ornit 6,5 X 12.5
125	207662046	Hex. Flange Screw M6 X 20
126	233261416	Elastic Flange Nut M6 X 1.0
130	233281414	Hex. Flange Elastic Nut M8
140	207662046	Hex. Flange Screw M6 X 20
150	233261416	Elastic Flange Nut M6 X 1.0
180	207661646	Hex. Flange Screw M6 X 16
300b	512061516	Vibration Damper
310	250001060	Screw-Pan HD.Torx M8X30
350	518331740	LH Front Chassis Reinforcement
400	518335308	Chassis Suspension Module
405	250001148	Screw Hex M10 X 30
406	234001410	Flat Washer 10 mm
407	505072448	O-Ring
420	250100165	Hex. Flange Elastic Nut M10
500	518331615	Front Bottom Plate
510	293450268	Insert M5 X 0.8
540	390909100	Avex Rivet
545	293150265	Rivet Ornit 6,5 X 12.5
900	518336929	Deep Black, LH Rear Diagonal Cross Member This part replaces 518333956.
910	518336930	Deep Black, RH Rear Diagonal Cross Member This part replaces 518333957.
920	250000887	Pan Head Torx Screw M8 X 12
1100	518329370	Upper Colomn Support
1120	233261416	Elastic Flange Nut M6 X 1.0
1130	207662556	Hex. Flange Screw M6 X 25
1140	207662046	Hex. Flange Screw M6 X 20
1150	207562056	Hex. Flange Screw M6 X 20
