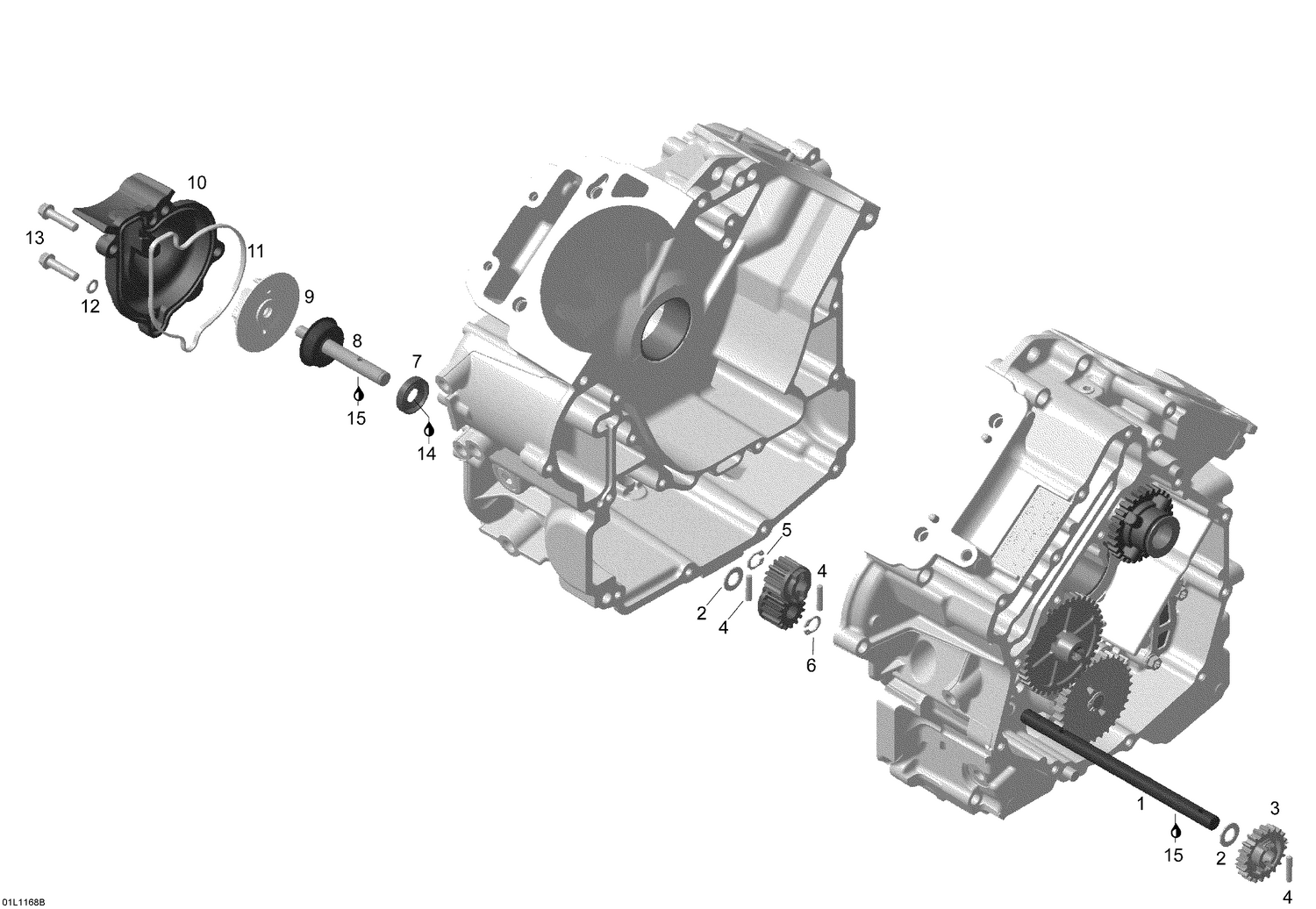

01- Waterpump
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420620500 | Intermediate Shaft |
| 2 | 420827590 | Thrust Washer |
| 3 | 420434330 | Water Pump Gear |
| 4 | 420232420 | Needle Pin |
| 5 | 420234627 | Pump Gear, 15 Teeth |
| 6 | 504152282 | Circlip |
| 7 | Not | Available As Spare Part - Oil seal |
| 8 | 420620175 | Water Pump Shaft Ass'y |
| 9 | 420222505 | Water Impeller |
| 10 | 420222780 | WATER PUMP HOUSING - Call your local BRP dealership |
| 11 | 420651190 | Gasket |
| 12 | 420230415 | Seal Washer |
| 13 | 420641238 | Flanged Torx Screw M6 X 25 |
| 14 | 293550030 | Grease, Super Lube |
