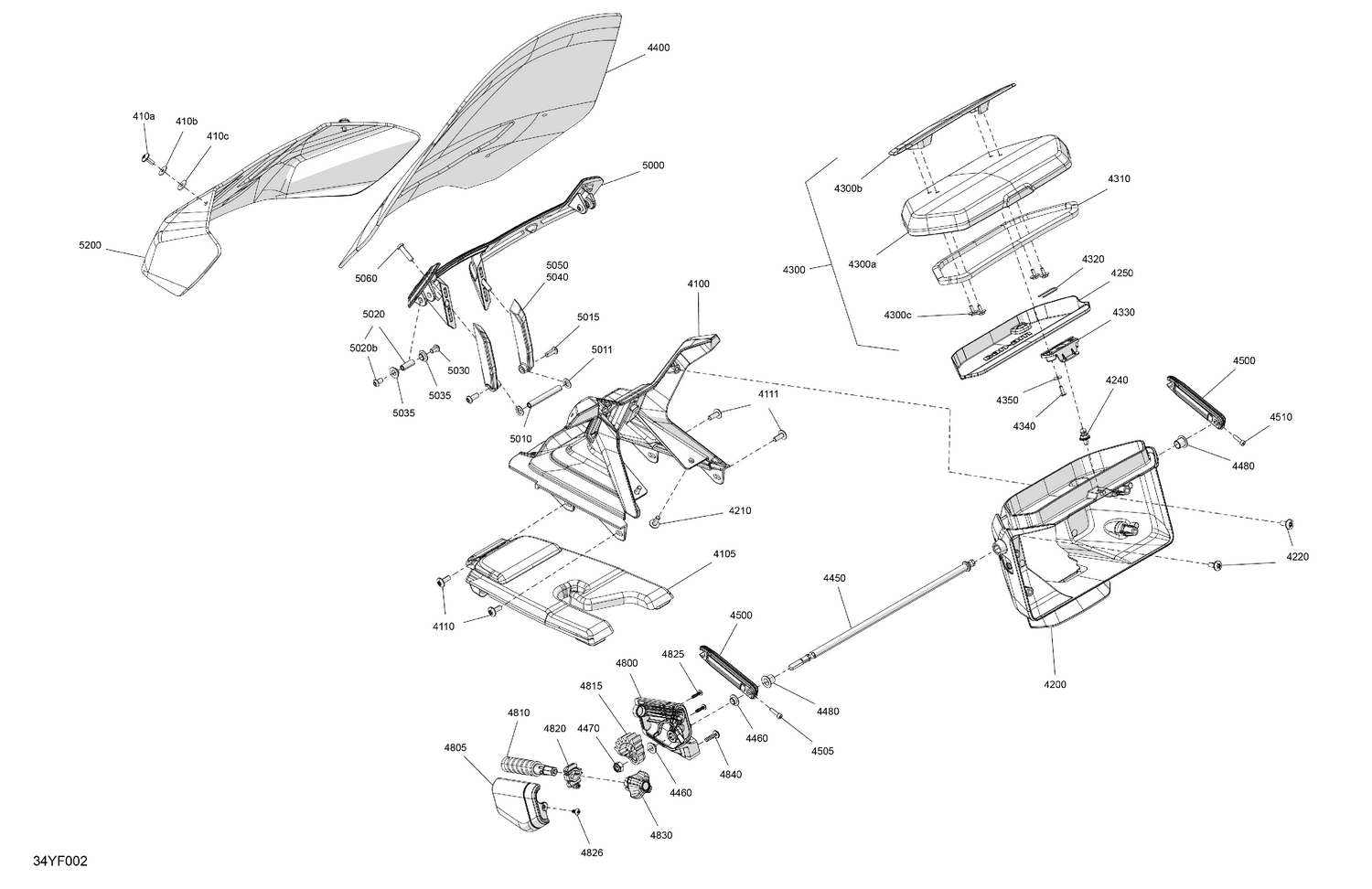

07- Body - Console - Windshield
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 410a | 250000941 | Torx-Truss M/S M5 X 14 |
| 410b | 234052670 | Stainless Steel Flat Washer M5 |
| 4100 | 708400783 | Lower Windshield Support |
| 4105 | 708401003 | Thermal Insulation |
| 4110 | 250000717 | Torx Head Screw M6 X 16 |
| 4111 | 250000717 | Torx Head Screw M6 X 16 |
| 4200 | 708400789 | Windshield Support |
| 4210 | 250000717 | Torx Head Screw M6 X 16 |
| 4220 | 250000717 | Torx Head Screw M6 X 16 |
| 4240 | 705019173 | Ball Stud |
| 4250 | 293830250 | Box Liner |
| 4300a | 708400683 | Upper Box Cover |
| 4300b | 708401012 | Central Air Deflector |
| 4300c | 250000805 | Plastite Screw M4 X 10 |
| 4310 | 293830244 | Gasket |
| 4320 | 705006661 | Spring |
| 4330 | 708400931 | Cover Striker |
| 4340 | 250001131 | Torx Truss PT K40 x 12 |
| 4350 | 250200155 | Black Oxi, Flat Washer Din*9021B A2 |
| 4400 | 708400630 | Windshield |
| 4450 | 708400632 | Link Rod |
| 4460 | 705003267 | Sleeve |
| 4470 | 232581434 | Elastic Stop Nut |
| 4480 | 705019174 | Coupling Sleeve |
| 4500 | 708400791 | Pivot Arm |
| 4505 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 4510 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 4800 | 708401063 | Pinion Housing |
| 4805 | 708401062 | Sprocket Cover |
| 4810 | 708401066 | Worm Screw |
| 4815 | 708401065 | Wheel_Sprocket |
| 4820 | 708401075 | Bracket |
| 4825 | 250001123 | Hex. Flange Screw K40 X 16 |
| 4826 | 250001034 | Torx-Truss Screw K40 X 10 |
| 4830 | 708401064 | Adjustment Button |
| 4840 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 5000 | 708401032 | Upper Windshield Support |
| 5010 | 705009565 | Pivot Pin |
| 5011 | 517309702 | Anti Friction Washer |
| 5015 | 205961660 | SOCKET HEAD SCREW M6, SCOTCH GRIP - Call your local BRP dealership |
| 5020b | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 5030 | 205961060 | Socket Head Screw M6 X 10, Scotch Grip |
| 5035 | 705003267 | Sleeve |
| 5040 | 708401067 | LH Central Windshield Support |
| 5050 | 708401068 | RH Central Windshield Support |
| 5060 | 250001332 | Screw Button Head Torx S.Grip M6 X |
| 5200 | 708400629 | Lower Windshield Deflector |
