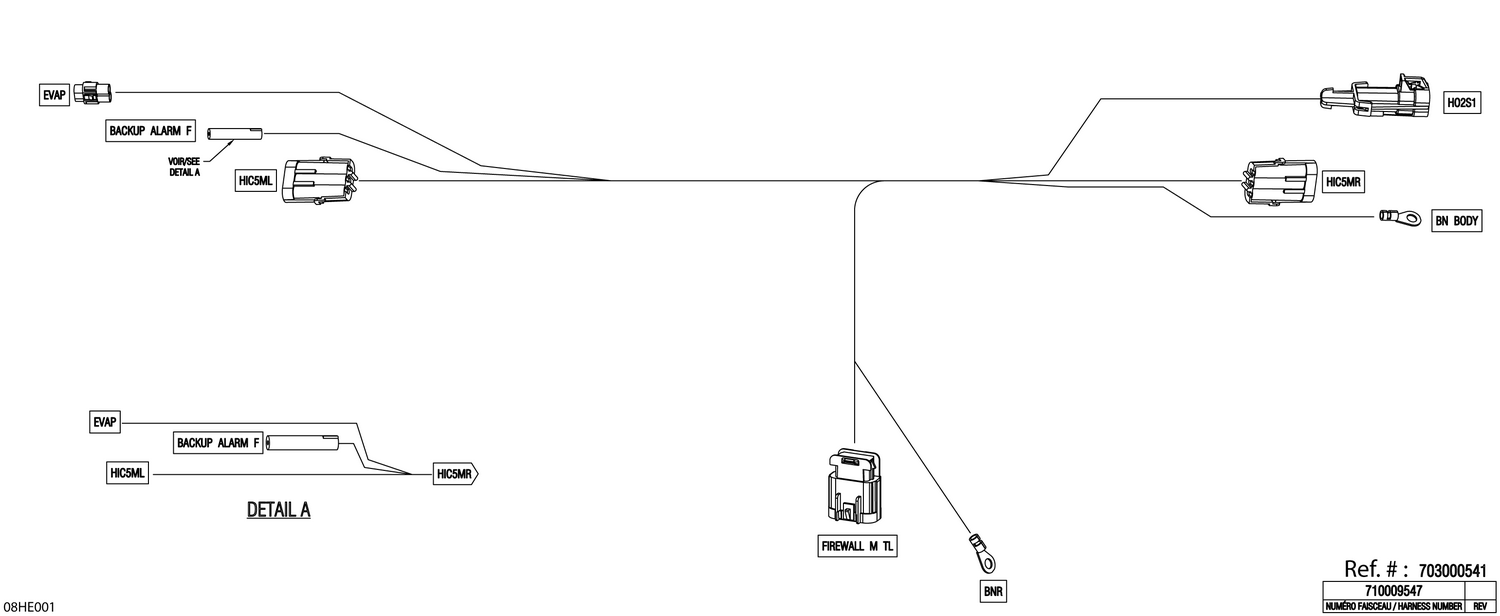

08- Electric - Junction Wiring Harness - 710009547
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| BACKUP | ALARM | F 278001007 Insulated Sheath 278001007 |
| BNR | 278001392 | Open Barrel Terminal |
| EVAP | 409012100 | Female Terminal |
| EVAP | 710000402 | Wire Seal |
| FIREWALL | M | TL 710000992 Clip 710000992 |
| HIC5ML | 278000222 | Male Terminal |
| HIC5ML | 278000281 | Female Terminal Housing, 3 Circuits |
| HIC5ML | 278001065 | Wire Seal |
| HIC5ML | 710000992 | Clip |
| HIC5MR | 278000222 | Male Terminal |
| HIC5MR | 278000281 | Female Terminal Housing, 3 Circuits |
| HIC5MR | 278001065 | Wire Seal |
| HIC5MR | 710000992 | Clip |
| HO2S1 | 278001482 | Seal |
| HO2S1 | 710002006 | Holder |
| HO2S1 | 710002466 | Housing |
| HO2S1 | 710002469 | Lock |
| 60 | 710009547 | Junction Wiring Harness |
