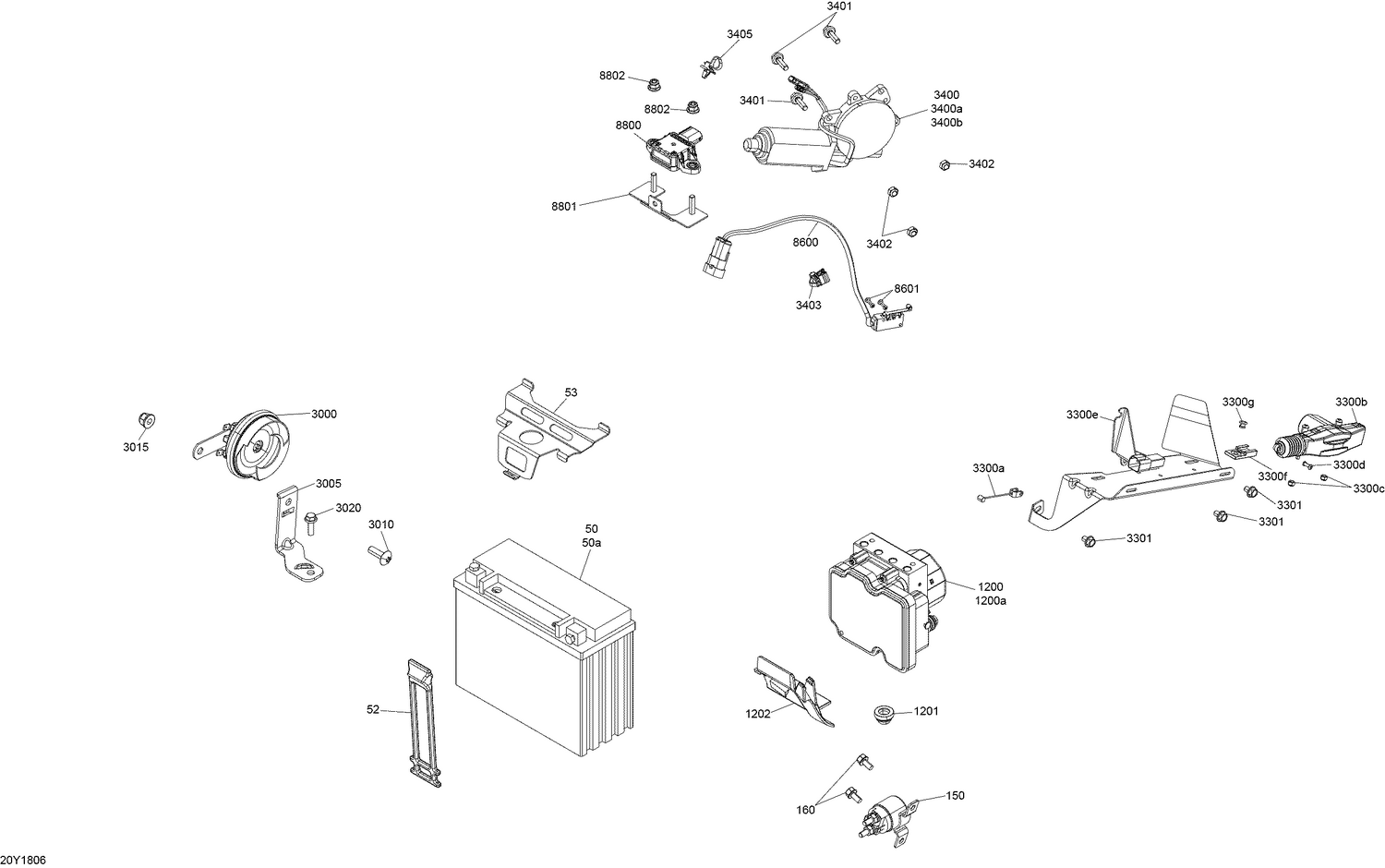

10- Electrical Frame
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 50a | 250000282 | Battery Bolt Kit |
| 52 | 520000528 | Latch |
| 53 | 710002893 | Battery Holder |
| 150 | 710007777 | Starter Relay This part replaces 710001364. |
| 160 | 210261250 | Hex. Flange Screw M6 X 12 |
| 1200a | 710003279 | Shock Damper |
| 1201 | 710003279 | Shock Damper |
| 1202 | 710003996 | VCM Harness Protector |
| 3000 | 710004940 | Horn |
| 3005 | 710005769 | Horn Support |
| 3010 | 250000874 | Torx Truss M8 X 25 |
| 3015 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3020 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 3300a | 710002889 | Reverse Cable |
| 3300b | 710011269 | Actuator |
| 3300c | 232541414 | Elastic Stop Nut M4 |
| 3300d | 390403000 | Pop Rivet 5/32 |
| 3300e | 710005642 | Reverse Actuator Support |
| 3300f | 270000141 | Clip |
| 3300g | 390402400 | Pop Rivet 3/16" |
| 3301 | 210261050 | Hex. Forming Screw M6 X 10 |
| 3400 | 710007256 | Actuator Motor This part replaces 278003071. |
| 3400a | 278000231 | Insulation Sheath |
| 3400b | 278000230 | Male Terminal |
| 3401 | 207662054 | Hex. Flange Screw M6 X 20 |
| 3402 | 232561434 | Elastic Stop Nut M6 |
| 3403 | 710002896 | Tie-Rap Clip |
| 3405 | 293750009 | Tie-Rap 173 mm |
| 8600 | 710001379 | Brake Pressure Switch Ass'y |
| 8601 | 293150150 | Pop Rivet |
| 8800 | 710002677 | Yaw Rate Sensor |
| 8801 | 710003494 | YRS Holder |
