Parts Catalog

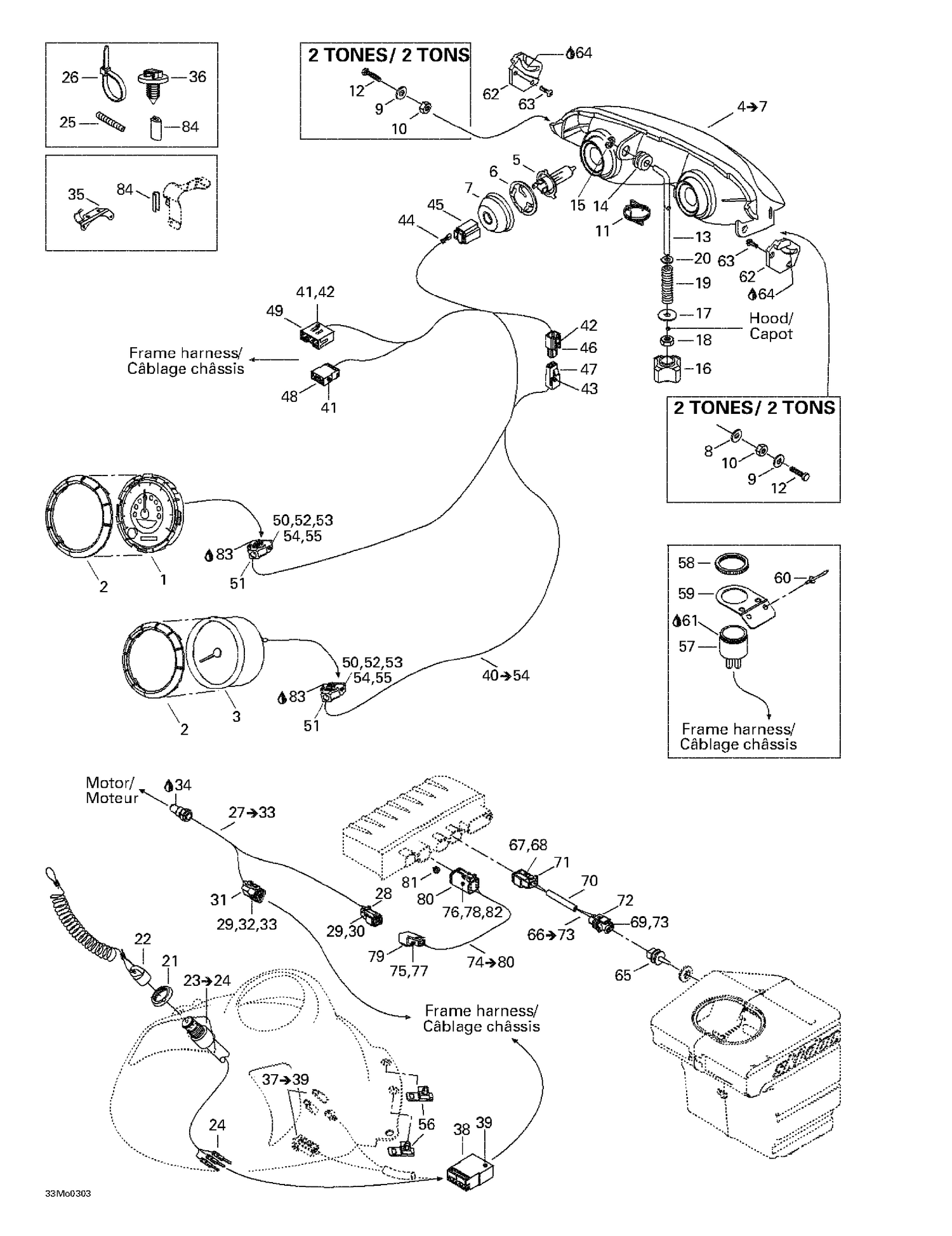

10- Electrical System

Parts (62)

Ref	Part Number	Description
1	515175942	Electronic Speedometer, Kmh
2	515179005	Gauge Ring This part replaces 515175651.
3	515175943	Tachometer
5	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401.
6	515176385	BULB HOLDER - Call your local BRP dealership This part replaces 515175910.
7	515175911	COVER - Call your local BRP dealership
13	517295800	ADJUSTER ROD - Call your local BRP dealership
14	415100800	Grommet - Call your local BRP dealership
15	732610072	Push Nut
16	515175548	Handle - Call your local BRP dealership
17	224060251	Washer
18	232561414	Elastic Stop Nut M6
19	415100600	SPRING - Call your local BRP dealership
20	234061410	Flat Washer 6 mm
21	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
22	515178284	DESS This part replaces 515166900.
24	515175232	Male Terminal
25	219704400	Was 409901800 Tubing (13 mm)
26	293750002	Tie Wrap 142 mm
28	515175670	Female Terminal Housing, 2 Circuits
29	278000632	Female Terminal
30	515175675	Female Lock, 2 Circuits
31	515175671	FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
32	515175676	Female Lock, 3 Circuits
33	293000052	Sealing Cap
34	219704455	Was 293800018 Loctite 592, 50 ml
35	515175254	Cable Support
36	293730040	Mount Dart This part replaces 293730018.
38	515175662	Male Terminal Housing, 6 Circuits
39	515175232	Male Terminal
41	515175232	Male Terminal
42	515175273	MALE TERMINAL - Call your local BRP dealership
43	515175282	Female Terminal
44	515175321	FEMALE TERMINAL - Call your local BRP dealership
45	409202700	FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
46	515175509	MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
47	515175510	FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership
48	515175662	Male Terminal Housing, 6 Circuits
49	515175720	MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership
50	515175812	Plug
51	515175801	Female Housing, 24 Circuits
52	515175802	Retainer Block
53	515175803	Wire Seal
54	515175804	BLOCK - Call your local BRP dealership
55	515175806	Female Terminal
56	515175283	Housing Support
67	278000998	Female Terminal
68	278000999	Wire Seal
69	278000632	Female Terminal
70	219704424	Vinyl Tubing, Low Temp 3000Mm Long
71	515175588	FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership
72	515175670	Female Terminal Housing, 2 Circuits
73	515175706	Female Lock, 2 Circuits
75	278000631	Male Terminal
76	278000632	Female Terminal
77	409207500	Male Lock, 2 Circuits
78	293000052	Sealing Cap
79	517175665	Male Terminal Housing, 2 Circuits
80	515175673	Male Housing, 6 Circuits
82	515175678	Male Wedge, 6 Circuits
83	219704453	Was 293550004 Dielectric Grease, 150 g
293750008	Tie	Wrap 368 mm 293750008
