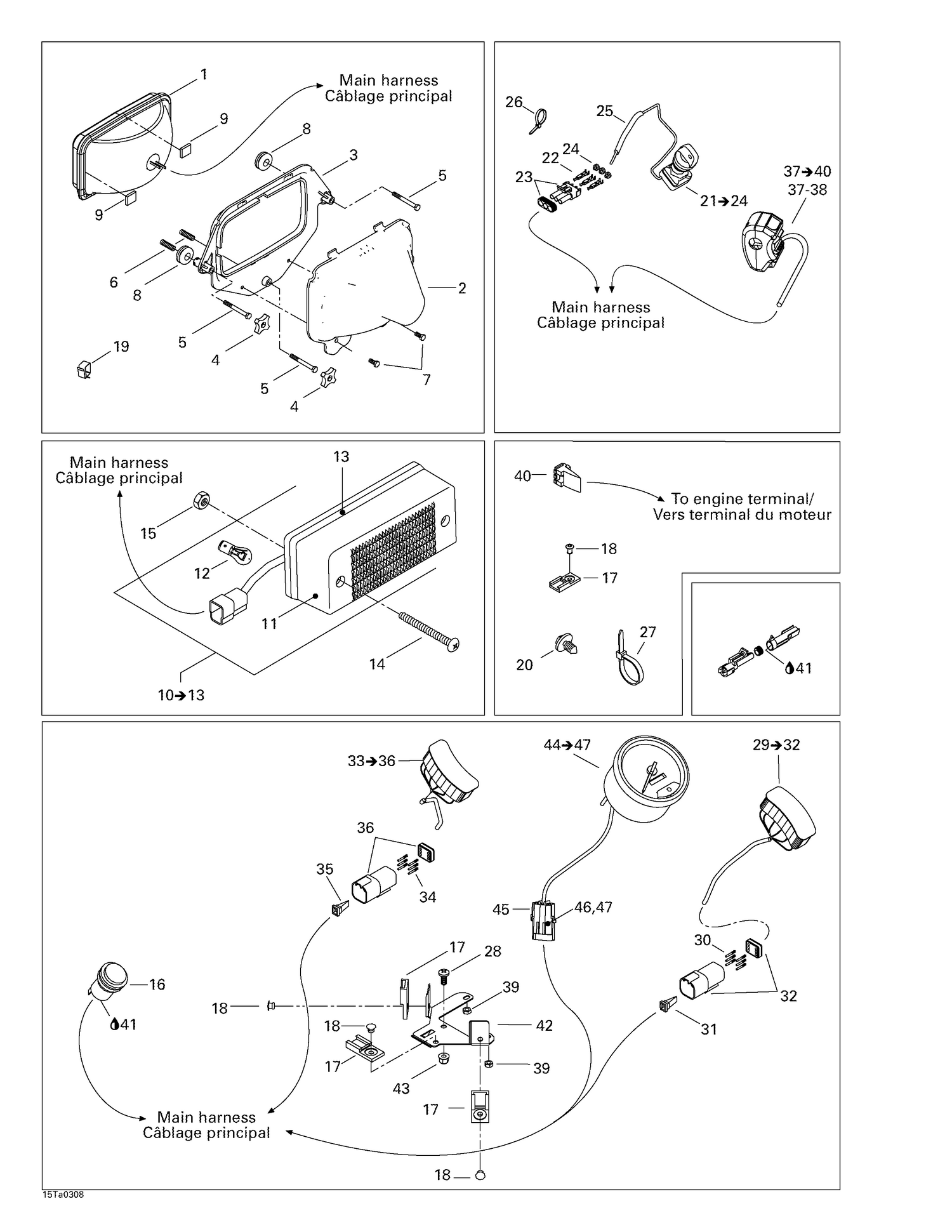

| Ref | Part Number | Description |
|---|
| 1 |
710000001 |
HEADLAMP - Call your local BRP dealership |
| 2 |
705000023 |
Protector |
| 3 |
705000474 |
Head Lamp Support |
| 4 |
572106600 |
Handle |
| 5 |
250000008 |
HEX. SCREW K40 X 40 - Call your local BRP dealership |
| 6 |
517168600 |
Spring |
| 7 |
241641040 |
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 8 |
709000582 |
Grommet This part replaces 293720053. |
| 9 |
293830088 |
Rubber Pad |
| 11 |
710000055 |
TAIL LIGHT LENS, RED - Call your local BRP dealership |
| 12 |
520000758 |
Bulb This part replaces 410504100. |
| 13 |
710000129 |
GASKET - Call your local BRP dealership |
| 14 |
208656091 |
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership |
| 15 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 16 |
861507200 |
Outlet Power Kit, 12 Volts This part replaces 710000024. |
| 17 |
270000141 |
Clip |
| 17 |
409014200 |
CLIP - Call your local BRP dealership |
| 18 |
390402400 |
Pop Rivet 3/16" |
| 19 |
414227300 |
Clip |
| 20 |
293730040 |
Mount Dart This part replaces 293730018. |
| 22 |
278000223 |
Female Terminal |
| 23 |
278000273 |
Male Housing, 3 Circuits |
| 24 |
278000218 |
Wire Seal |
| 25 |
710000171 |
Protector Tube |
| 26 |
293750002 |
Tie Wrap 142 mm |
| 27 |
293750002 |
Tie Wrap 142 mm |
| 27 |
293750008 |
Tie Wrap 368 mm |
| 28 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 30 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 31 |
409014600 |
Male Lock, 6 Circuits |
| 32 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 34 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 35 |
409014600 |
Male Lock, 6 Circuits |
| 36 |
409015200 |
Male Terminal Housing, 6 Circuits |
| 38 |
710000173 |
BACK COVER - Call your local BRP dealership |
| 39 |
211100051 |
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership |
| 40 |
278000737 |
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 41 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 42 |
710000159 |
Housing Support, Black |
| 43 |
232551414 |
Elastic Stop Nut M5 |
| 45 |
278001479 |
Male Terminal Housing (3 Circuits) |
| 46 |
278000222 |
Male Terminal |
