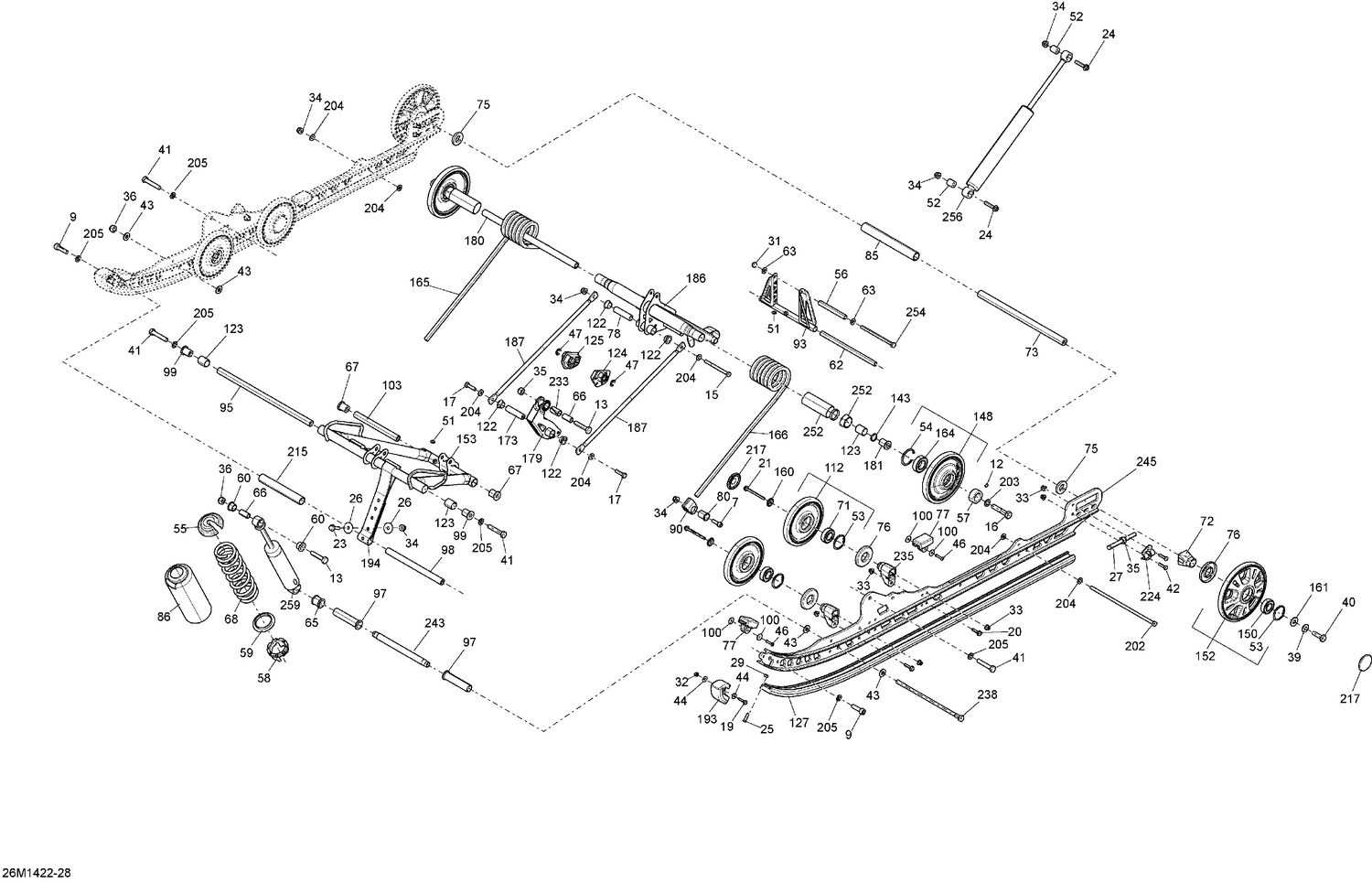

| Ref | Part Number | Description |
|---|
| 7 |
205082554 |
Socket Screw M8 X 25 |
| 9 |
205503554 |
Socket Head Screw M10 X 35 |
| 12 |
206260844 |
Socket Set Screw M6 X 8 |
| 13 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 15 |
207089044 |
Hex. Screw M8 X 90 |
| 16 |
207226044 |
HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 17 |
207383044 |
HEX. SCREW M8 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 19 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 20 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 21 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 23 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 24 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 25 |
208562531 |
Phillips Screw M6 X 25 |
| 26 |
250200128 |
Flat Washer 8 mm |
| 27 |
230100054 |
Hex Screw M10 x 100 |
| 29 |
232561414 |
Elastic Stop Nut M6 |
| 31 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 32 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 33 |
233261466 |
Hex. Flange Elastic Nut M6 |
| 34 |
233281466 |
Elastic Flange Nut M8 |
| 35 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 36 |
233601466 |
Elastic Locking Nut M10 |
| 39 |
250200141 |
Conical Spring Washer M10 |
| 40 |
250000592 |
Hex Cap Screw Nylon M10 x 35 |
| 41 |
250000605 |
Hex. Screw S.Grip M10 X 55 |
| 42 |
250000619 |
Hex Screw M6 X 25 |
| 43 |
250200138 |
Washer |
| 44 |
250200140 |
Washer |
| 46 |
293150013 |
Pop Rivet 3/16" |
| 47 |
293370013 |
E-Circlip |
| 51 |
408200700 |
Grease Fitting |
| 52 |
414936000 |
Bushing |
| 53 |
415129371 |
Retaining Ring |
| 54 |
415129780 |
Retaining Ring |
| 56 |
503144300 |
Upper Axle, Pivot Arm |
| 57 |
503168800 |
Retaining Ring |
| 58 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| 59 |
503191872 |
Spring Guide |
| 60 |
503189117 |
Urethane Bushing |
| 62 |
503189156 |
Pivot Arm Axle |
| 65 |
503189271 |
Bushing |
| 66 |
503189282 |
Bushing |
| 67 |
503189324 |
Bushing |
| 68 |
503191882 |
Black, Spring |
| 71 |
503190396 |
Ball Bearing |
| 72 |
503190428 |
Rear Wheel Spacer |
| 73 |
503190429 |
Rear Axle |
| 75 |
503190432 |
Washer |
| 76 |
503190434 |
Labyrinth Seal |
| 77 |
503190576 |
Rubber Stopper |
| 78 |
503190643 |
Axle Bar (Long) |
| 80 |
861805547 |
Spring Support Kit This part replaces 503190754. |
| 85 |
503191108 |
Spacer |
| 90 |
861805547 |
Spring Support Kit This part replaces 503191183. |
| 93 |
503191209 |
Pivot Arm |
| 95 |
503191215 |
Upper Shaft |
| 97 |
503191259 |
Center Bushing |
| 98 |
503191260 |
Axle Strap |
| 99 |
503191262 |
Bushing |
| 100 |
503191273 |
Washer |
| 103 |
503191279 |
Lower Shaft |
| 112 |
503191311 |
Black, Wheel Ass'y 147 mm |
| 122 |
503191555 |
Swivel Bushing |
| 123 |
503191556 |
Extended Bushing |
| 124 |
503191565 |
LH Cam Adjuster |
| 125 |
503191566 |
RH Cam Adjuster |
| 127 |
503191619 |
Slider 137 |
| 143 |
503191651 |
Washer |
| 148 |
503191738 |
Black, Wheel Ass'y 155 mm |
| 150 |
503190396 |
Ball Bearing |
| 152 |
503191742 |
Black, Wheel Ass'y, 180 mm |
| 153 |
503191752 |
Front Arm |
| 160 |
503191820 |
Wheel Cup M6 |
| 161 |
503191910 |
Washer |
| 164 |
503193548 |
Ball Bearing This part replaces 503191982. |
| 165 |
503192080 |
RH Spring |
| 166 |
503192081 |
LH Spring |
| 173 |
503192139 |
BAR AXLE - Call your local BRP dealership |
| 179 |
503192211 |
Rocker |
| 180 |
503192222 |
UPPER SHAFT - Call your local BRP dealership |
| 181 |
503192223 |
BUSHING - Call your local BRP dealership |
| 186 |
503192252 |
Rear Arm Ass'y This part replaces 503192253. |
| 187 |
503196617 |
Link Rod This part replaces 503192255. |
| 193 |
503192299 |
Runner Protector |
| 194 |
503192360 |
Stopper Strap |
| 202 |
503192440 |
Bolt M8 X 248mm |
| 203 |
503192491 |
Washer |
| 204 |
503192494 |
Washer |
| 205 |
503192496 |
Washer |
| 215 |
503196943 |
Spacer This part replaces 503192678. |
| 217 |
503192771 |
Black, Wheel Cap |
| 224 |
503192583 |
Tensioner |
| 233 |
503193037 |
Bushing |
| 235 |
503193894 |
Casted Support This part replaces 503193082. |
| 238 |
503193227 |
Bolt M10 X 251MM |
| 243 |
503193435 |
Pivot Axle This part replaces 503193142. |
| 245 |
503195714 |
Rail Suspension 137 This part replaces 503193721. |
| 252 |
572080700 |
Bushing |
| 254 |
732601197 |
Bolt M8, Short |
| 256 |
503193187 |
Rear Shock Seal HPG |
