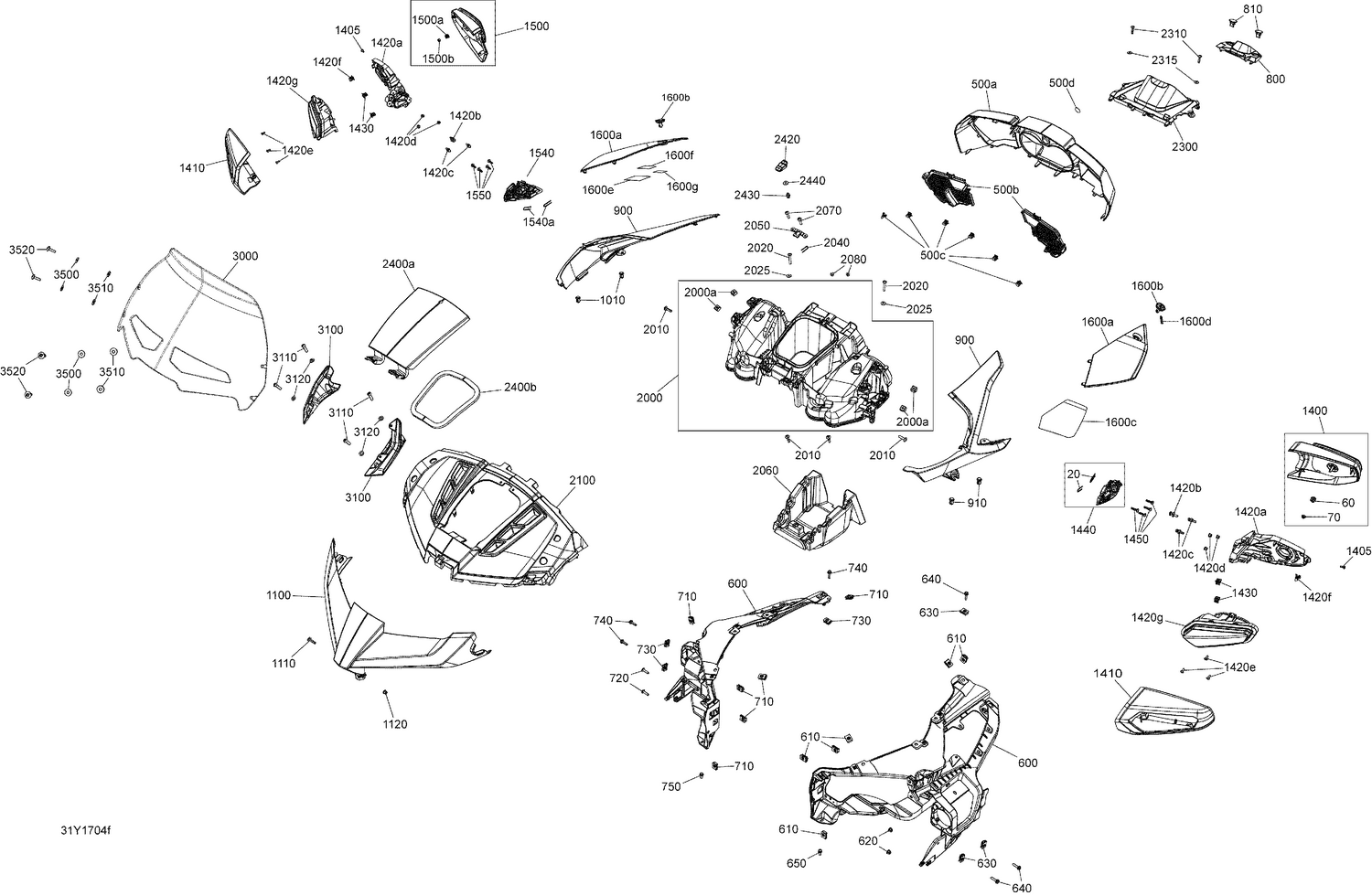

09- Body And Accessories - Console - Package T-LTD
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 705006661 | Spring |
| 60 | 705010625 | Spring |
| 70 | 232561600 | Hex. Elastic Stop Nut M6 |
| 500a | 708400126 | Caqrbon Black Dashboard |
| 500b | 708400094 | LH GRILLE - Call your local BRP dealership |
| 500b | 708400095 | RH Grille |
| 500c | 517302785 | Edge Clip |
| 500d | 516006224 | BRP Logo 20MM x 2MM |
| 600 | 708400170 | LH Console Support |
| 600 | 708400171 | RH Console Support |
| 610 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 620 | 233261494 | Hex. Flange Elastic Nut M6 |
| 630 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 640 | 250000793 | Hex. Flange Screw M6 X 25 |
| 650 | 210261650 | Hex. Flange Screw M6 X 16 |
| 710 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 720 | 250000758 | Torx Screw M6 X 25 |
| 730 | 250100208 | Panel Nut M6 X 1.0 This part replaces 250100169. |
| 740 | 250000793 | Hex. Flange Screw M6 X 25 |
| 750 | 210261650 | Hex. Flange Screw M6 X 16 |
| 800 | 708400205 | Switch Bezel |
| 810 | 708400046 | Cap |
| 910 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1010 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 1110 | 250000762 | Torx Screw M5 X 25 |
| 1120 | 233251494 | Elastic Flange Nut M5 |
| 1400 | 708400592 | LH Rear View Mirror Housing Ass'y This part replaces 708400115. |
| 1405 | 250000577 | Torx Truss Screw K40 X 12 |
| 1420a | 708400224 | LH Mirror Support |
| 1420a | 708400225 | RH Mirror Support |
| 1420b | 705006733 | Flat Head Stud M5 |
| 1420c | 708400538 | Stud Ball M5 This part replaces 705006734. |
| 1420d | 233251434 | Flange Elastic Nut M5 |
| 1420e | 250000577 | Torx Truss Screw K40 X 12 |
| 1420f | 517302785 | Edge Clip |
| 1420g | 710001510 | LH Front Flasher Unit |
| 1420g | 710001511 | RH Front Flasher Unit |
| 1430 | 517302785 | Edge Clip |
| 1440 | 705008211 | LH Mirror Plate Support Ass'y |
| 1450 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1500a | 705010625 | Spring |
| 1500b | 232561600 | Hex. Elastic Stop Nut M6 |
| 1540a | 705006661 | Spring |
| 1550 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 1600b | 708400065 | Cover Latch Quarter Turn |
| 1600c | 704905464 | Warning Decal |
| 1600d | 704904673 | Safety Card Decal |
| 1600e | 704904924 | Caution Decal Oil Level, English |
| 1600f | 704903119 | Brake Fluid Warning Decal |
| 1600g | 704904812 | Decal, XPS |
| 2000a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 2000b | 232561200 | Brass Elastic Stop Nut M6 |
| 2010 | 250000807 | Torx Truss Screw M6 X 25 |
| 2020 | 250000732 | Torx Screw Nylon |
| 2025 | 234052670 | Stainless Steel Flat Washer M5 |
| 2040 | 705006661 | Spring |
| 2050 | 708400215 | Receptacle |
| 2060 | 708400103 | Pod Foam |
| 2070 | 250000762 | Torx Screw M5 X 25 |
| 2080 | 233251494 | Elastic Flange Nut M5 |
| 2100 | 708400221 | Upper Fairing |
| 2300 | 708400108 | Column Fairing |
| 2310 | 250000762 | Torx Screw M5 X 25 |
| 2315 | 234052670 | Stainless Steel Flat Washer M5 |
| 2400a | 708400217 | Glove Box Door |
| 2400b | 293250406 | Seal |
| 2420 | 708400213 | Lever |
| 2430 | 705011056 | Stud M5 |
| 2440 | 234052670 | Stainless Steel Flat Washer M5 |
| 3000 | 708400342 | Windshield This part replaces 708400087. |
| 3110 | 250000328 | Torx Screw M6 X 25, Scotch Grip |
| 3120 | 234061600 | Stainless Flat Washer M6 |
