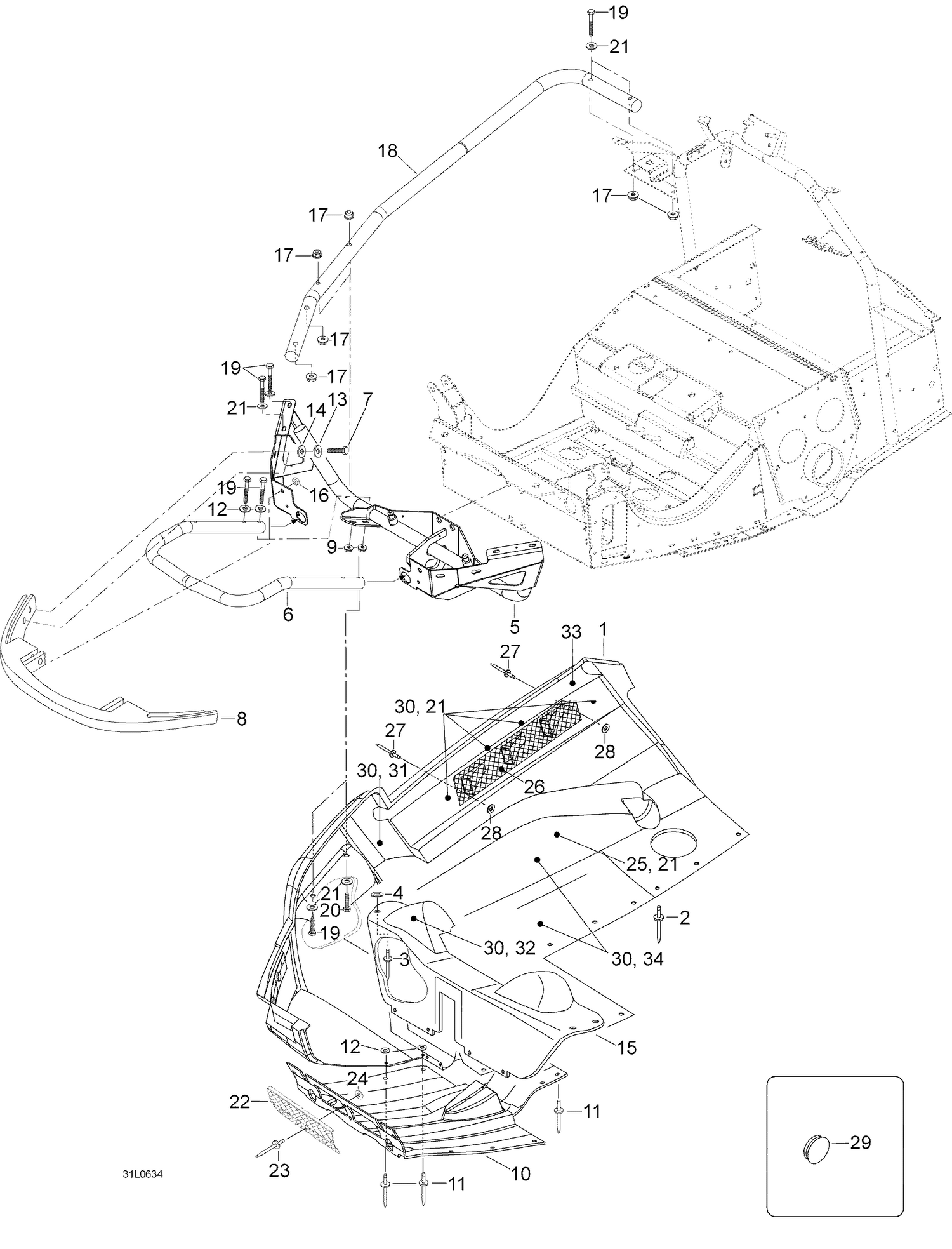

| Ref | Part Number | Description |
|---|
| 1 |
605149805 |
L.H. Bottom pan |
| 1 |
605152528 |
RH BOTTOM PAN - Call your local BRP dealership |
| 2 |
36037 |
Rivet |
| 3 |
36083 |
Rivet |
| 4 |
20008 |
Washer A5,3 |
| 5 |
605253916 |
BUMPER SUPPORT - Call your local BRP dealership |
| 6 |
605351509 |
BUMPER FRONT - Call your local BRP dealership |
| 7 |
40029 |
Hex. screw M6 x 16 |
| 8 |
502006719 |
Bumper |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 10 |
605152620 |
BOTTOM PAN, MIDDLE - Call your local BRP dealership |
| 11 |
36072 |
Rivet |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 13 |
20052 |
Lock washer A6 |
| 14 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 15 |
605254459 |
COVER - Call your local BRP dealership |
| 16 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 18 |
605152371 |
SIDE BUMPER - Call your local BRP dealership |
| 19 |
40002 |
Hex. screw M6 x 40 |
| 20 |
40084 |
Hex. screw M6 x 45 |
| 21 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 22 |
605252587 |
Grill |
| 23 |
36037 |
Rivet |
| 24 |
20008 |
Washer A5,3 |
| 25 |
605351367 |
Isolation |
| 26 |
605352541 |
GRILL - Call your local BRP dealership |
| 27 |
36037 |
Rivet |
| 28 |
20008 |
Washer A5,3 |
| 29 |
570277300 |
Cap |
| 30 |
44001 |
REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership |
| 31 |
605352835 |
Heat protector |
| 32 |
605352836 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 33 |
605352837 |
Heat protector |
