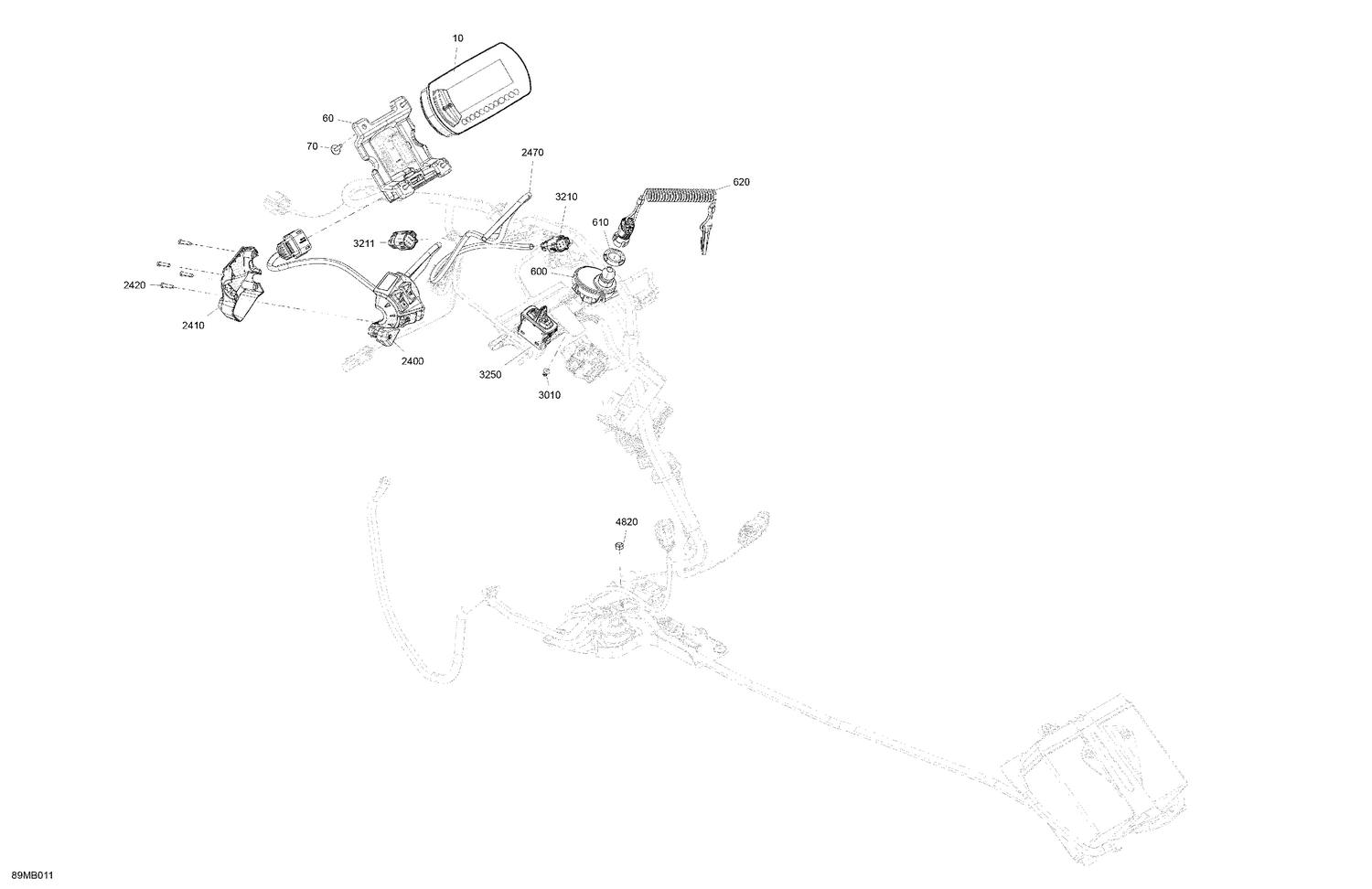

08- Electric - Upper Section
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 515178226 | Cadran Multifonction Grand Couleur |
| 60 | 515178450 | Housing |
| 70 | 250000725 | Screw M4 X 16 |
| 600 | 515178840 | Terminal Dess One-Wire This part replaces 710007242. |
| 610 | 278002963 | Safety Nut (DESS Switch) |
| 2400 | 515178102 | LH Switch Housing |
| 2410 | 515177147 | Housing Plate |
| 2420 | 250000671 | Torx Screw |
| 2470 | 415130141 | Braided Sleeve |
| 3010 | 515177929 | Rivet |
| 3210 | 515178177 | BLoc Femelle 4 Circuits |
| 3211 | 515178202 | Coil Connector |
| 3250 | 515178501 | Rocket Switch |
