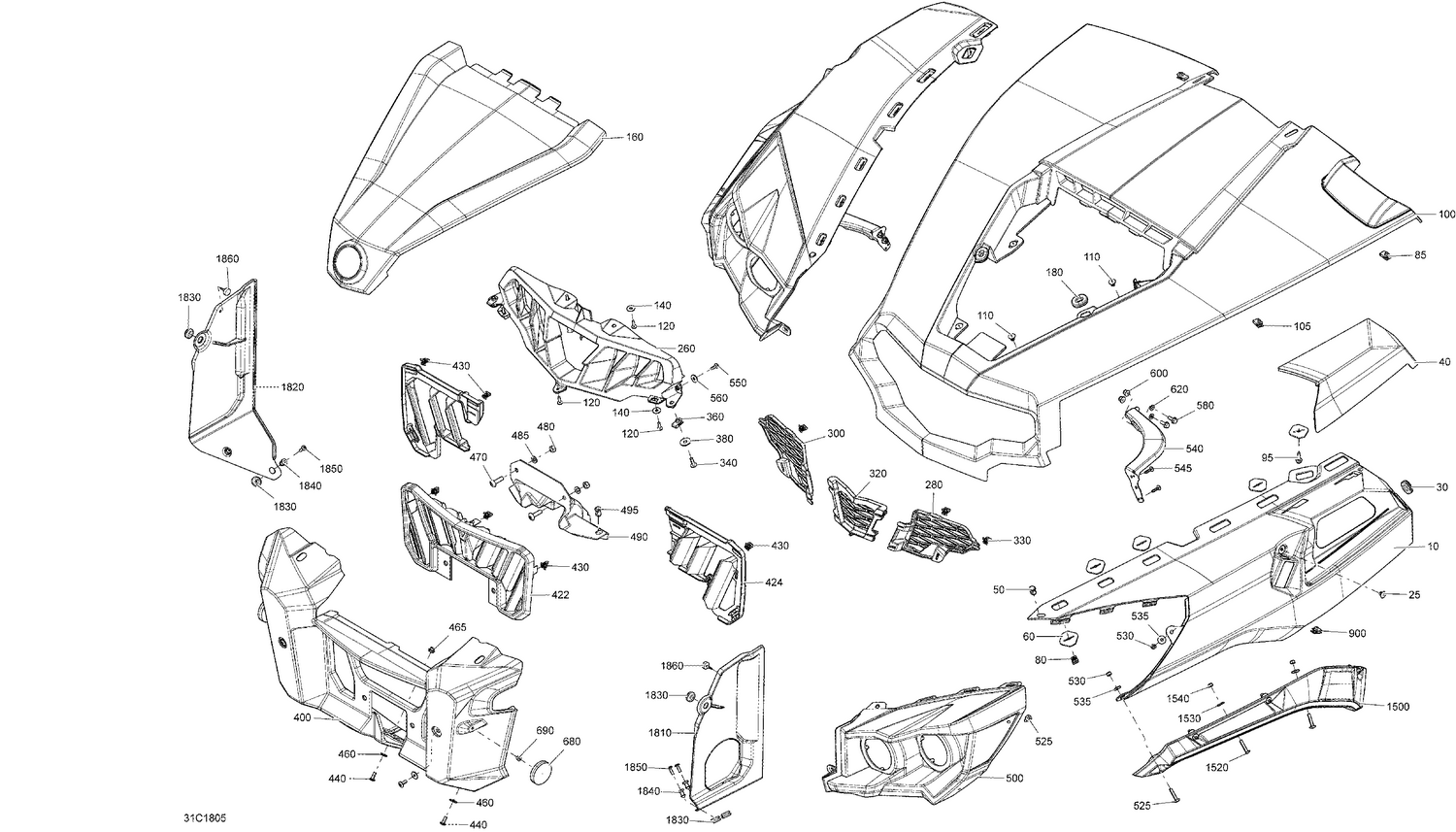

09- Body Front Part Commander MAX - Break Up Country Camo Models
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 25 | 293150104 | Pop Rivet 3/16" |
| 30 | 517303756 | Grommet |
| 50 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 60 | 705003841 | Support Plate |
| 80 | 517302785 | Edge Clip |
| 85 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 95 | 207662054 | Hex. Flange Screw M6 X 20 |
| 105 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 110 | 293150104 | Pop Rivet 3/16" |
| 120 | 250000720 | Torx Screw K50 X 16 |
| 140 | 234062670 | Stainless Steel Flat Washer |
| 180 | 705005156 | Oval Washer |
| 260 | 705003629 | FASCIA UP B-160 - Call your local BRP dealership |
| 280 | 705004350 | LH Upper Facia Protector |
| 300 | 705004351 | RH Upper Facia Protector |
| 320 | 705004336 | Center Upper Facia Protector |
| 330 | 517302785 | Edge Clip |
| 340 | 250000722 | Torx Screw M6 X 20 |
| 360 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 380 | 234082410 | Flat Washer 8 mm |
| 400 | 705008689 | Black Front Facia |
| 422 | 705004755 | Lower Front Facia Protector |
| 424 | 705004819 | LH Lower Rear Facia Protector |
| 426 | 705004820 | RH Lower Rear Facia Protector |
| 430 | 517302785 | Edge Clip |
| 440 | 250000755 | Torx Screw M6 X 16 |
| 460 | 234062670 | Stainless Steel Flat Washer |
| 465 | 250100242 | Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 470 | 250000745 | Hex Torx Truss M8 X30 |
| 480 | 232081414 | Hex. Nut M8 |
| 485 | 234081410 | Flat Washer 8 mm |
| 490 | 705003399 | Bottom Deflector |
| 495 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 500 | 705002885 | LH Front Facia |
| 520 | 705002886 | RH Front Facia |
| 525 | 250000842 | Stainless, Torx Screw M6 X 30 |
| 530 | 232561434 | Elastic Stop Nut M6 |
| 535 | 234062670 | Stainless Steel Flat Washer |
| 540 | 705002891 | Facia Front Support |
| 545 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 550 | 250000720 | Torx Screw K50 X 16 |
| 560 | 234062670 | Stainless Steel Flat Washer |
| 580 | 207661644 | Hex. Flange Screw M6 X 16 |
| 600 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 620 | 234061600 | Stainless Flat Washer M6 |
| 680 | 705011222 | Amber Reflector |
| 900 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1810 | 705002895 | LH Deflector |
| 1820 | 705002894 | RH Deflector |
| 1830 | 709000582 | Grommet This part replaces 293720053. |
| 1840 | 517303439 | Knob |
| 1850 | 250000720 | Torx Screw K50 X 16 |
| 1860 | 708000759 | Rubber Stopper |
