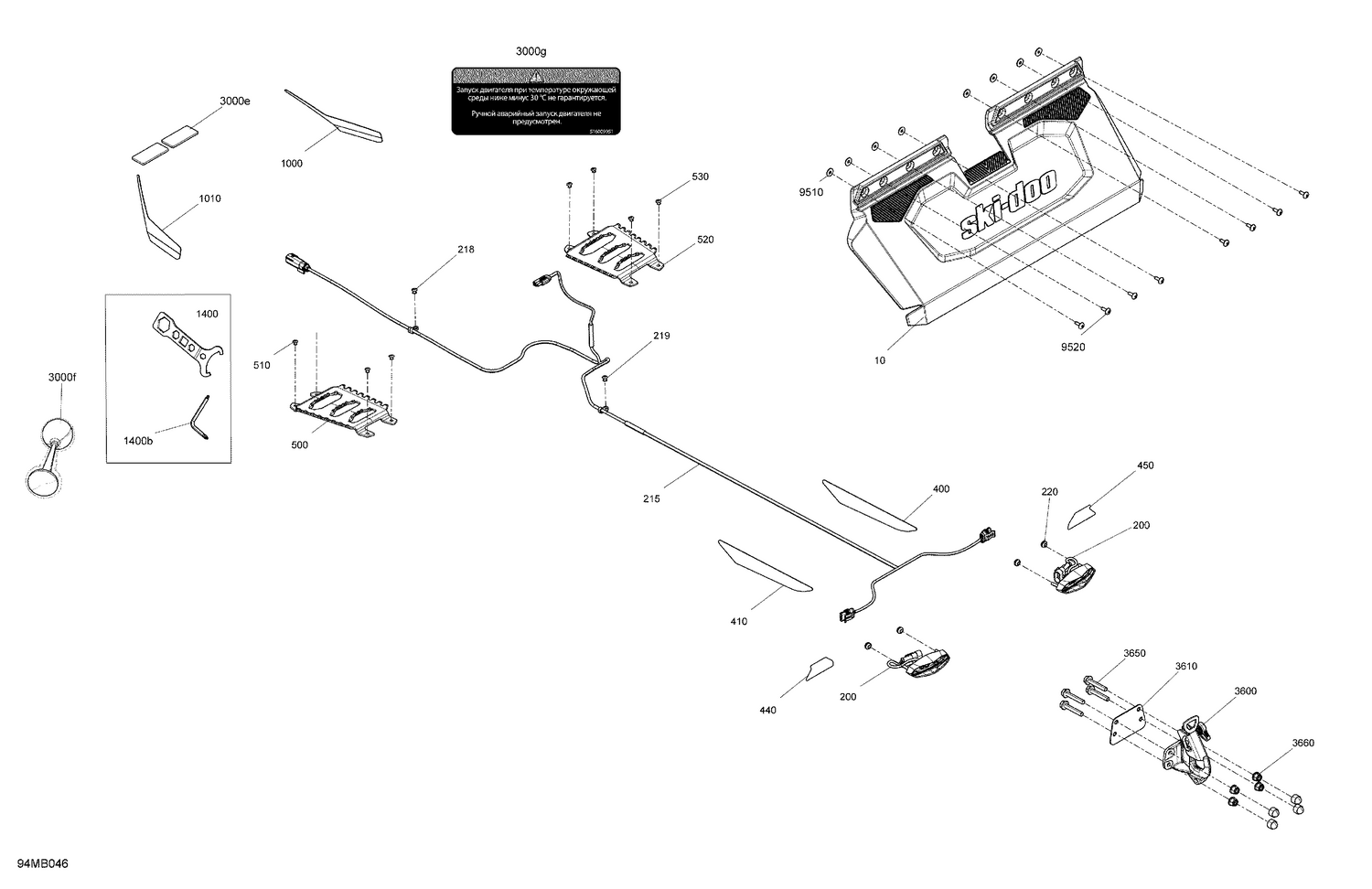

09- Miscellaneous - Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002048 | Snow Guard 24" |
| 200 | 520002636 | Tail Light This part replaces 520001738. |
| 215 | 515178634 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 219 | 390402200 | Pop Rivet 3/16" |
| 220 | 293720101 | Grommet |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 440 | 520001740 | LH Rear Red Reflector |
| 450 | 520002016 | RH Rear Red Reflector |
| 510 | 293150102 | Rivet 3/16" |
| 530 | 293150102 | Rivet 3/16" |
| 1000 | 520002444 | RH Front Reflector |
| 1010 | 520002443 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
| 3000g | 516009951 | Warning Decal, Security |
| 3600 | 520001826 | Hitch Ass'y |
| 3610 | 511001560 | RH Chassis Reinforcement |
| 3650 | 207684544 | Hex. Flange Screw M8 X 45 |
| 9510 | 250200025 | Washer M5 |
