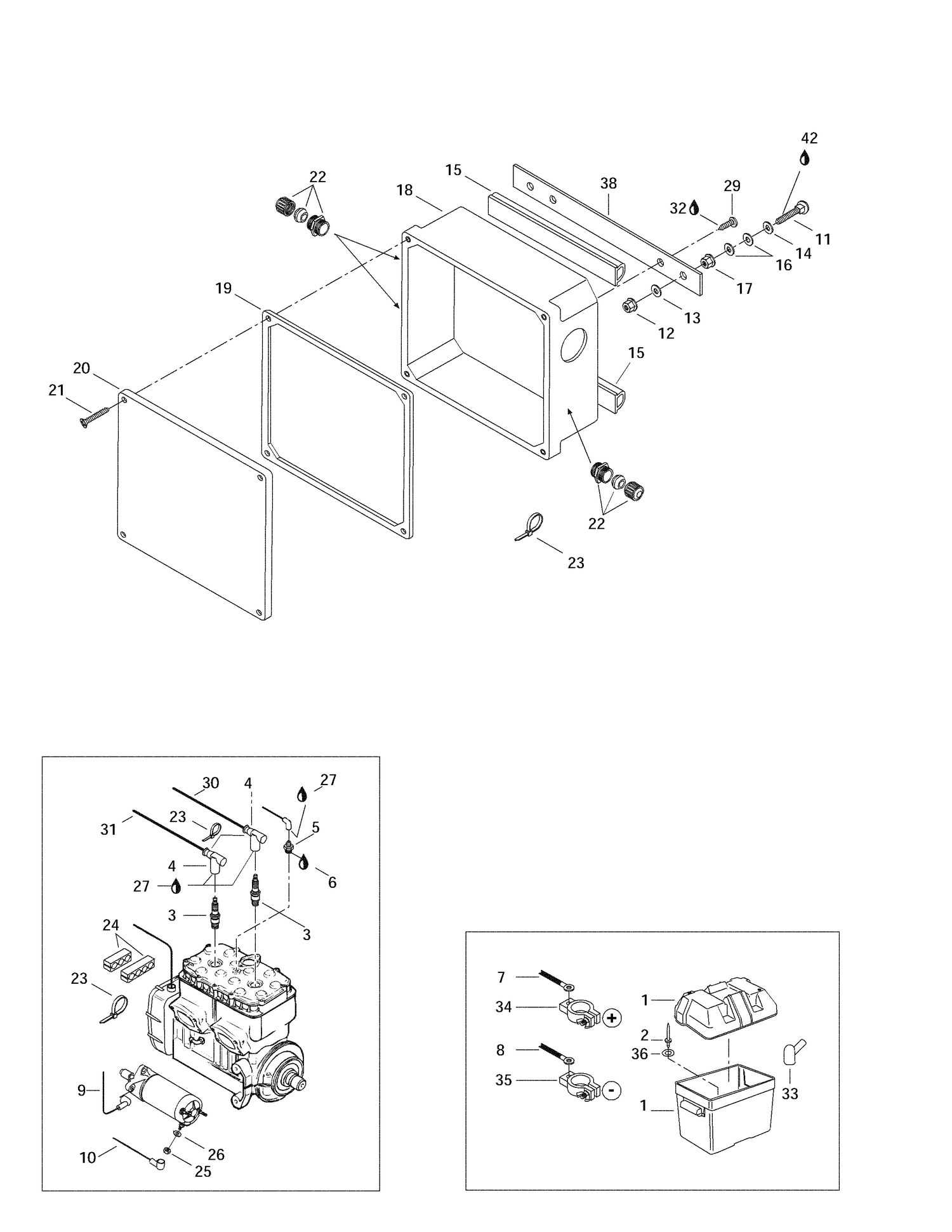

| Ref | Part Number | Description |
|---|
| 1 |
278000573 |
Battery Support |
| 2 |
293150008 |
Pop Rivet 3/16" |
| 3 |
219703119 |
NGK Spark Plug BR8ES This part replaces 278000609. |
| 4 |
204470091 |
Spark Plug Cap |
| 5 |
278000194 |
Temperature Sensor |
| 7 |
278000875 |
Cable - Red |
| 8 |
278000575 |
Ground Cable - Plate |
| 9 |
278000723 |
Battery Ground Cable |
| 10 |
278000865 |
Starter Cable - Left |
| 11 |
204000130 |
Elevator Bolt |
| 12 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership |
| 13 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 14 |
213400001 |
WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership |
| 15 |
219704365 |
Was 293200017 Neoprene Seal |
| 16 |
234081600 |
Stainless, Flat Washer 8 mm This part replaces 213200002. |
| 17 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 18 |
278000788 |
ElectricalBox(Incl.It.22) |
| 19 |
293250052 |
Gasket |
| 20 |
278000873 |
Cover |
| 21 |
211000052 |
Screw 1/4-20 x 5/8 |
| 22 |
278000528 |
Cap & Grommet |
| 23 |
293750002 |
Tie Wrap 142 mm |
| 25 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 26 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 27 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 28 |
278000856 |
Electrical Box Support |
| 29 |
211000053 |
Screw 1/4" |
| 30 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership |
| 31 |
278000322 |
Spark Plug Wire 530 (MAG) |
| 32 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 33 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 34 |
278000679 |
Battery Pole (Positive) |
| 35 |
278000680 |
Battery Pole (Negative) |
| 278000245 |
3 |
WIRE SUPPORT - Call your local BRP dealership 278000245 |
