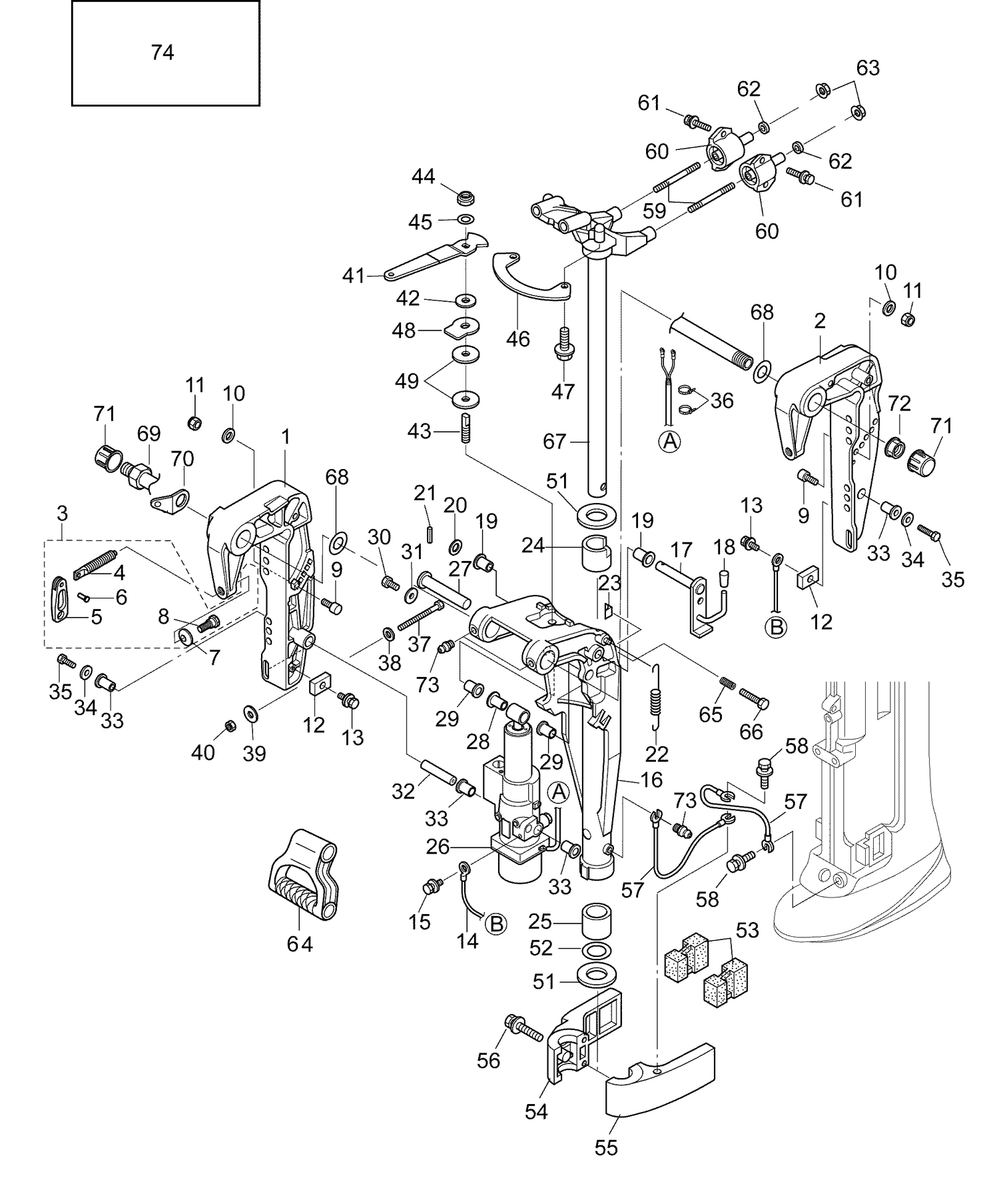

16-4_STERN & SWIVEL BRACKET (PL, PX, TP, MODELS)
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 5040804 | CLAMP SCREW KIT |
| 9 | 5041501 | TRIM LOCK PIN |
| 10 | 5041138 | Washer 8.1-16-1.5 |
| 11 | 5041458 | NYLON NUT |
| 12 | 5041015 | Anode |
| 14 | 5040243 | GROUND L=130 |
| 15 | 5041557 | BOULON This part replaces 5041530. |
| 16 | 5041426 | SWIVEL BRACKET ASSEMBLY |
| 17 | 5041494 | TILT STOPPER |
| 18 | 5040153 | TILT STOPPER GRIP |
| 19 | 5040110 | Collar 10.2-12-12 |
| 21 | 5041689 | SPRING PIN |
| 22 | 5041146 | TILT STOPPER SPRING |
| 23 | 5041495 | FRICTION PIECE |
| 24 | 5041493 | BUSHING 24-30-30 |
| 25 | 5040092 | BUSHING 24-30-30 |
| 26 | 5041517 | POWER TILIT HYDRAULIC ASSEMBLY |
| 27 | 5041152 | CYLINDER PIN (UPPER) |
| 28 | 5041499 | Bushing 13-16-31 |
| 29 | 5041153 | BUSHING 13-17-19.5 |
| 31 | 5040057 | Washer 6.5-23-1.5 |
| 32 | 5041500 | CYLINDER PIN (LOWER) |
| 33 | 5041499 | Bushing 13-16-31 |
| 34 | 5040011 | Washer 8.5-28-1 |
| 35 | 5041552 | BOLT |
| 37 | 5041555 | BOLT |
| 38 | 5041669 | WASHER |
| 39 | 5041492 | WASHER |
| 40 | 5041655 | NYLON NUT |
| 51 | 5040093 | THRUST PLATE (UPPER) |
| 52 | 5040091 | O-RING 3.5-22 |
| 53 | 5041329 | RUBBER MOUNT (LOWER) |
| 56 | 5041566 | BOLT |
| 58 | 5041557 | BOULON |
| 59 | 5041330 | STUD |
| 60 | 5041405 | RUBBER MOUNT (UPPER) |
| 61 | 5041573 | BOLT |
| 62 | 5041669 | WASHER |
| 63 | 5041331 | NUT (FLANGE) |
| 64 | 5040317 | CARRYING HANDLE |
| 65 | 5040071 | FRICTION SPRING |
| 66 | 5041553 | BOLT |
| 67 | 5040357 | STEERING SHAFT ASSEMBLY |
| 70 | 5040319 | PLATE |
| 72 | 5040069 | NYLON NUT 7/8 |
| 73 | 5040055 | GREASE FITTING |
