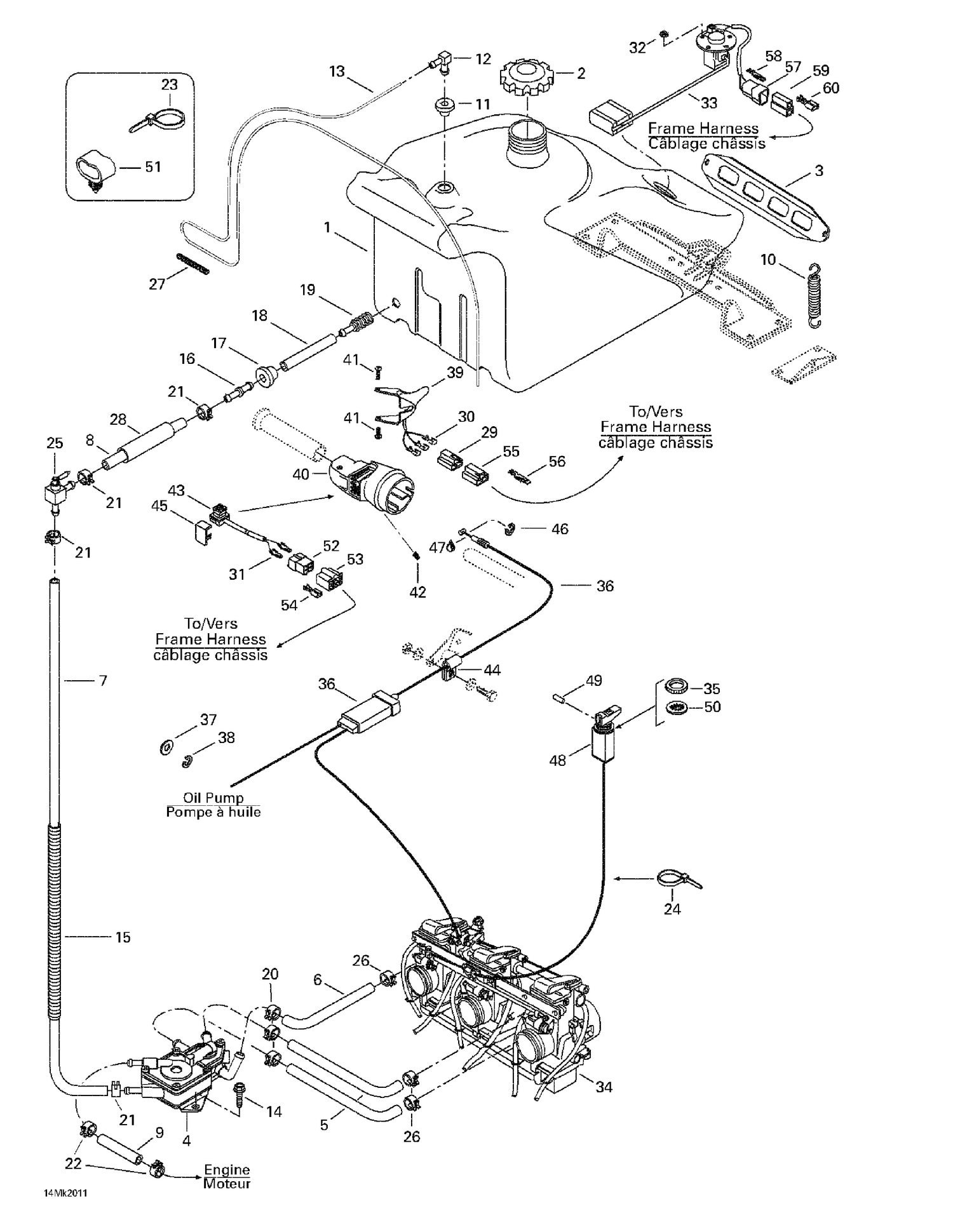

02- Fuel System
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513032926 | Fuel Tank |
| 2 | 513033722 | Fuel Tank Cap 91 Octane This part replaces 572073900. |
| 3 | 517249200 | Fuel Tank Bracket |
| 4 | 513032929 | FUEL PUMP - Call your local BRP dealership |
| 5 | 219704410 | Polyurethane Hose 10000Mm Long |
| 6 | 415120800 | Formed Hose |
| 7 | 513032949 | FORMED HOSE - Call your local BRP dealership |
| 8 | 513032965 | HOSE - Call your local BRP dealership |
| 9 | 219704549 | Hose This part replaces 219704439. |
| 10 | 415107100 | Spring This part replaces 414893700. |
| 11 | 513032908 | Grommet |
| 12 | 414814100 | Male Connector |
| 13 | 219704709 | NEEDS DESCRIPTION This part replaces 219704409. |
| 14 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 15 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 16 | 414872700 | Male Connector |
| 17 | 707800347 | Grommet This part replaces 570273900. |
| 18 | 415097800 | POLYURETHANE HOSE 7.6MM - Call your local BRP dealership |
| 19 | 414872100 | Fuel Filter Strainer |
| 20 | 414420700 | Spring Clamp |
| 21 | 414655700 | Spring Clamp |
| 22 | 414415200 | Spring Clamp |
| 23 | 414115200 | Tie-Rap 180 mm |
| 24 | 414115200 | Tie-Rap 180 mm |
| 25 | 415112200 | Shut-Off Valve |
| 26 | 414554800 | Spring Clamp |
| 27 | 513032961 | Spring |
| 28 | 513032941 | Hose (Rubber) |
| 29 | 409008500 | Female Terminal Housing (3 circuits) |
| 30 | 515175253 | FEMALE TERMINAL - Call your local BRP dealership |
| 31 | 409210000 | MALE TERMINAL - Call your local BRP dealership |
| 32 | 232551414 | Elastic Stop Nut M5 |
| 33 | 415080800 | Fuel Sensor Ass'y |
| 34 | 403138610 | Carburetor Kit TM38-C272 |
| 35 | 512059364 | NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 36 | 512059059 | Throttle Cable |
| 37 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 38 | 414753500 | Circlip |
| 39 | 512059159 | Heat Throttle Handle (26 mm) |
| 40 | 572098800 | Throttle Handle Housing |
| 41 | 732601143 | Flange Screw |
| 42 | 414440800 | Socket Set Screw M8 X 10 |
| 43 | 515177362 | Emergency Stop Switch This part replaces 512059146. |
| 44 | 414176000 | Open Clamp |
| 45 | 572100901 | Switch Cover |
| 46 | 414274500 | Circlip |
| 47 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 49 | 372118400 | Spring Pin |
| 50 | 394103300 | Lock Washer, Interior Teeth |
| 51 | 513032923 | TUBE CLAMP - Call your local BRP dealership |
| 52 | 409209300 | MALE HOUSING - Call your local BRP dealership |
| 53 | 409204900 | FEMALE HOUSING - Call your local BRP dealership |
| 54 | 561503200 | Female Terminal PACKARD |
| 55 | 409008600 | Male Terminal Housing (3 circuits) |
| 56 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 57 | 409204500 | MALE HOUSING - Call your local BRP dealership |
| 58 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
| 59 | 409204600 | FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
