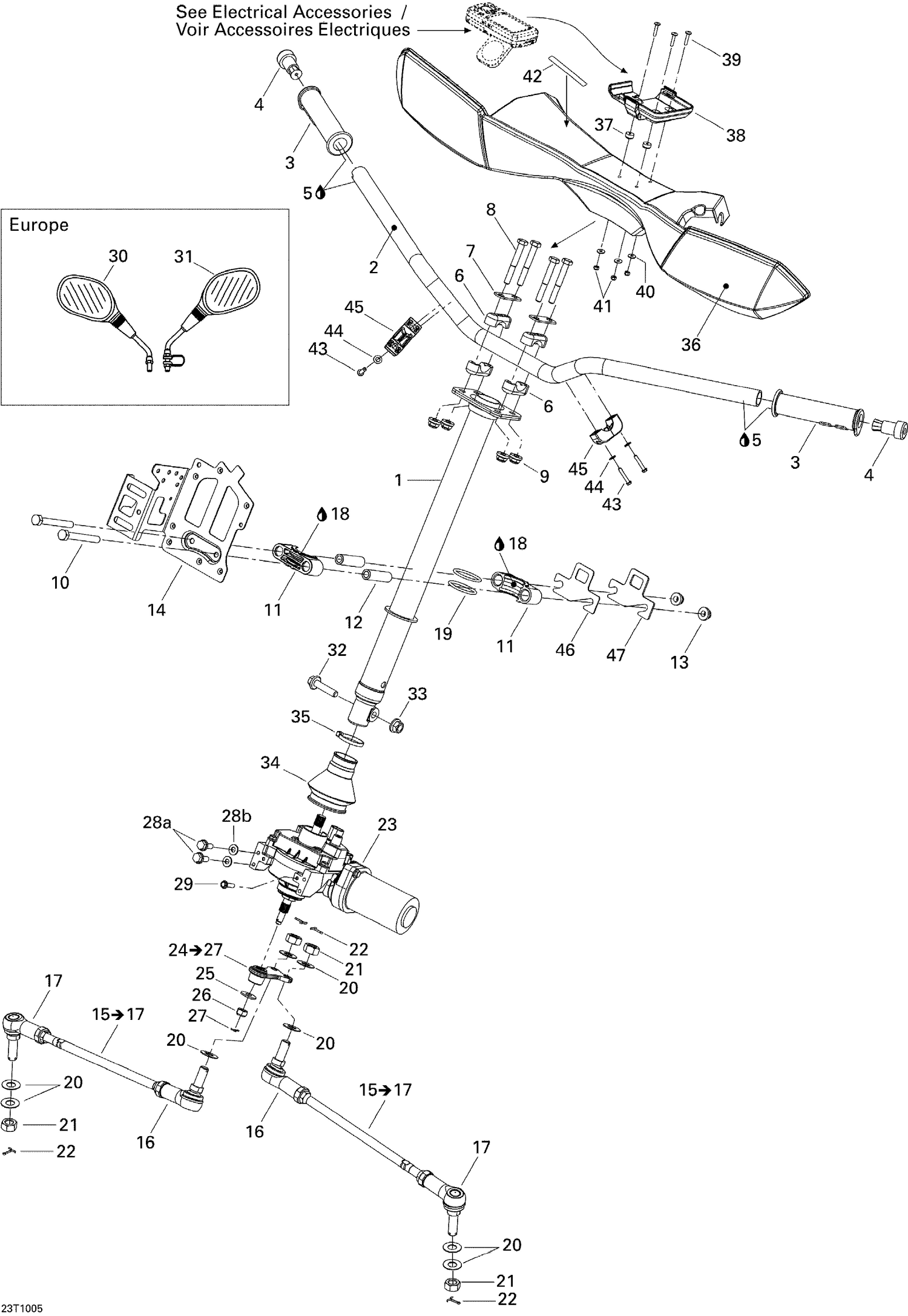

| Ref | Part Number | Description |
|---|
| 1 |
715900573 |
Tube-Main This part replaces 709400766. |
| 2 |
709401240 |
Black, Handlebar This part replaces 709400292. |
| 3 |
709400443 |
Grey, Handle Grip |
| 4 |
709400449 |
End Piece |
| 5 |
293800100 |
Loctite 406, 7 Oz |
| 6 |
709400919 |
Steering Support This part replaces 506151622. |
| 7 |
709400509 |
Stiffner |
| 8 |
207086046 |
Hex. Screw M8 X 60 |
| 9 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 10 |
207087044 |
Hex. Screw M8 X 70 |
| 11 |
709400471 |
Half Bushing |
| 12 |
709400072 |
BUSHING - Call your local BRP dealership |
| 13 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 14 |
709400751 |
MODULE SUPPORT - Call your local BRP dealership |
| 16 |
709402303 |
LH Ball Joint This part replaces 709400486. |
| 17 |
709400487 |
Ball Joint, RH Threads |
| 18 |
293550010 |
Synthetic Grease, 400 G |
| 19 |
293300068 |
O-Ring |
| 20 |
706200281 |
Hardened Washer |
| 21 |
250100099 |
Nut M12 |
| 22 |
211400013 |
Cotter Pin |
| 23 |
709400816 |
Electric Power Steering Module Ass'y |
| 25 |
Not |
Available As Spare Part - Flat Washer |
| 26 |
Not |
Available As Spare Part - Hex. Flange Elastic Nut M12 |
| 27 |
Not |
Available As Spare Part - Cotter Pin |
| 28a |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 28b |
234281474 |
Conical Spring Washer M8 |
| 29 |
250000992 |
Screw-Forming Hex.Hd.Fl.Bzn M5 X 20 This part replaces 210252040. |
| 30 |
XXX |
Not Available As Spare Parts |
| 31 |
XXX |
Not Available As Spare Parts |
| 32 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 33 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 34 |
709400674 |
Bellows |
| 35 |
414115200 |
Tie-Rap 180 mm |
| 36 |
703100357 |
Handle Guard Ass'y, LTD This part replaces 709400757. |
| 37 |
709400781 |
Rubber Bumper |
| 38 |
709400764 |
GPS MODULE SUPPORT - Call your local BRP dealership |
| 39 |
250000405 |
TORX SCREW M4 X 20 - Call your local BRP dealership |
| 40 |
234042600 |
Flat Washer 4 mm, Stainless |
| 41 |
232541414 |
Elastic Stop Nut M4 |
| 42 |
704905284 |
Decal "Dynamic Power Steering" This part replaces 704901558. |
| 43 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 44 |
211200035 |
Flat Washer |
| 45 |
517303264 |
U-Clamp |
| 46 |
709400734 |
SHIM 2 MM - Call your local BRP dealership |
