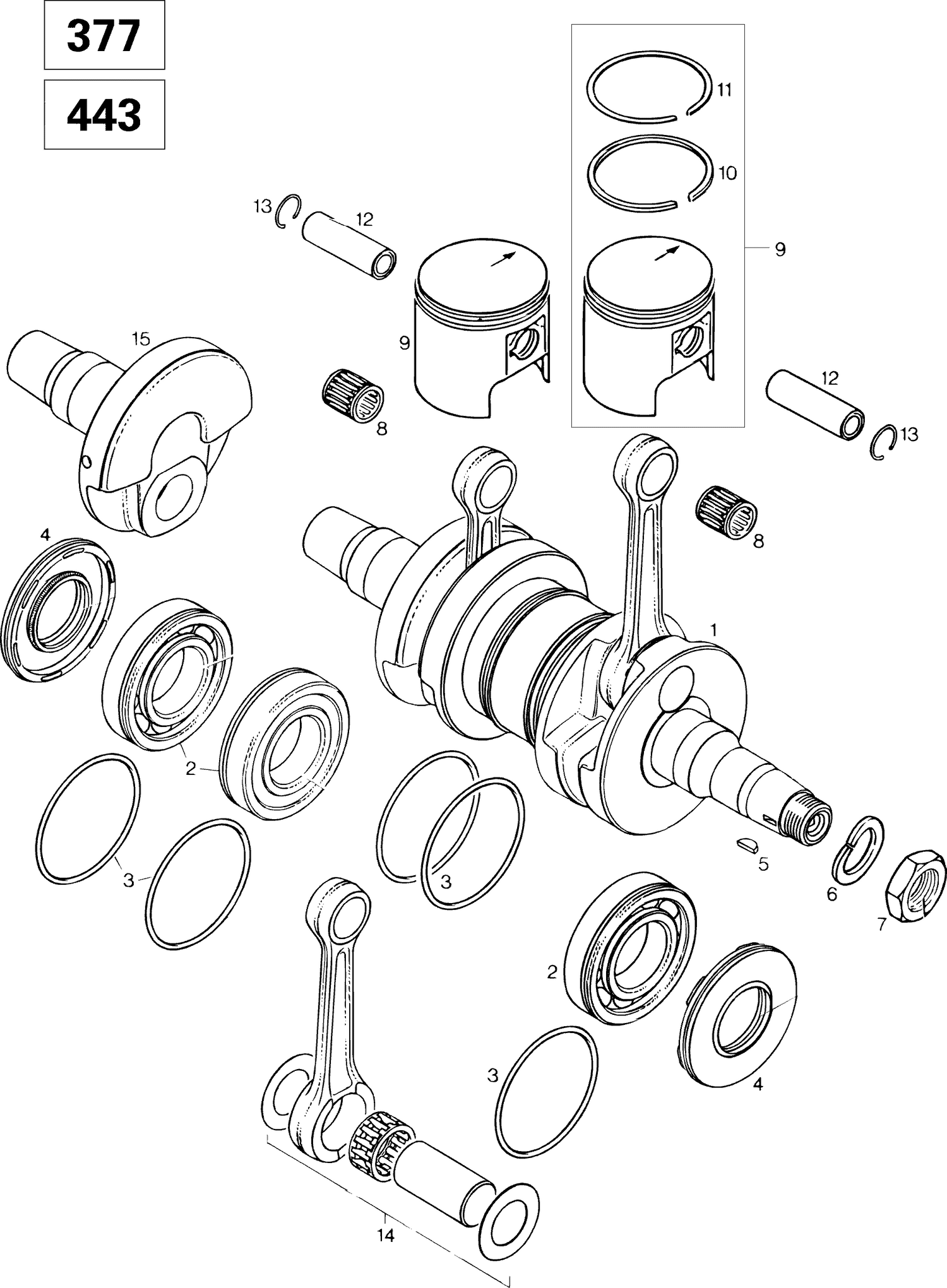

| Ref | Part Number | Description |
|---|
| 1 |
420887245 |
Crankshaft Ass’y |
| 2 |
420832584 |
Bearing_Ball This part replaces 420832231. |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420831952 |
Oil Seal This part replaces 420831950. |
| 5 |
420246055 |
Woodruff Key |
| 6 |
420945759 |
Lock Washer, 22 mm |
| 7 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 8 |
420932904 |
Needle Bearing |
| 10 |
420915960 |
RING R 67.5 - Call your local BRP dealership |
| 10 |
420915961 |
RING R 67.75 - Call your local BRP dealership |
| 10 |
420915962 |
RING R 68 - Call your local BRP dealership |
| 11 |
420915845 |
RING L 67.5 - Call your local BRP dealership |
| 11 |
420915846 |
RING L 67.75 - Call your local BRP dealership |
| 11 |
420915847 |
RING L 68.0 - Call your local BRP dealership |
| 12 |
420916136 |
PISTON PIN - Call your local BRP dealership |
| 13 |
420945735 |
Piston Circlip |
| 14 |
420996334 |
Rod repair kit |
