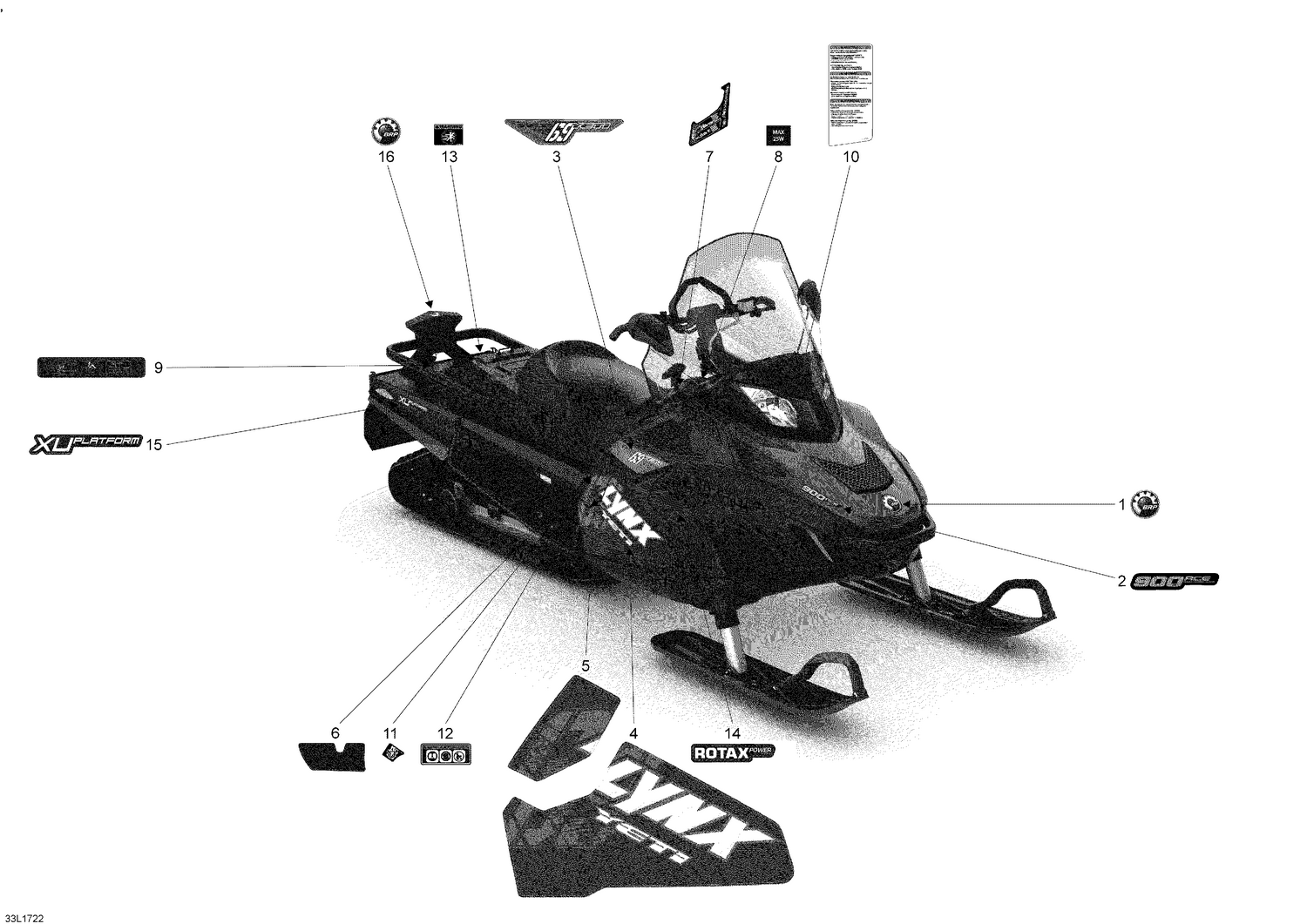

09- Decals
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 516008739 | Logo 68mm "BRP" This part replaces 516006888. |
| 2 | 516006454 | Hood Decal |
| 3 | 516006846 | Side Panel Decal |
| 4 | 516006847 | LH Side Panel Decal |
| 4 | 516006848 | RH Side Panel Decal |
| 5 | 516006880 | LH Side Panel Decal |
| 5 | 516006881 | RH Side Panel Decal |
| 6 | 516005121 | Decal, Tunnel RH |
| 6 | 516005122 | Decal, Tunnel LH |
| 7 | 516004294 | Instruction Decal |
| 8 | 516003918 | Power Outlet Decal (25W) |
| 9 | 516003886 | WARNING DECAL, TOWING - Call your local BRP dealership |
| 10 | 516006403 | Instruction/Warning Decal, FI/SWE/EN |
| 11 | 516003925 | Checking Label, Transmission |
| 12 | 516002703 | Decal, Europe |
| 13 | 516007584 | Warning Decal |
| 14 | 516006331 | Rotax Power Decal |
| 15 | 516005954 | XU Plateform Decal |
| 16 | 516008738 | Logo 48mm "BRP" This part replaces 516006887. |
