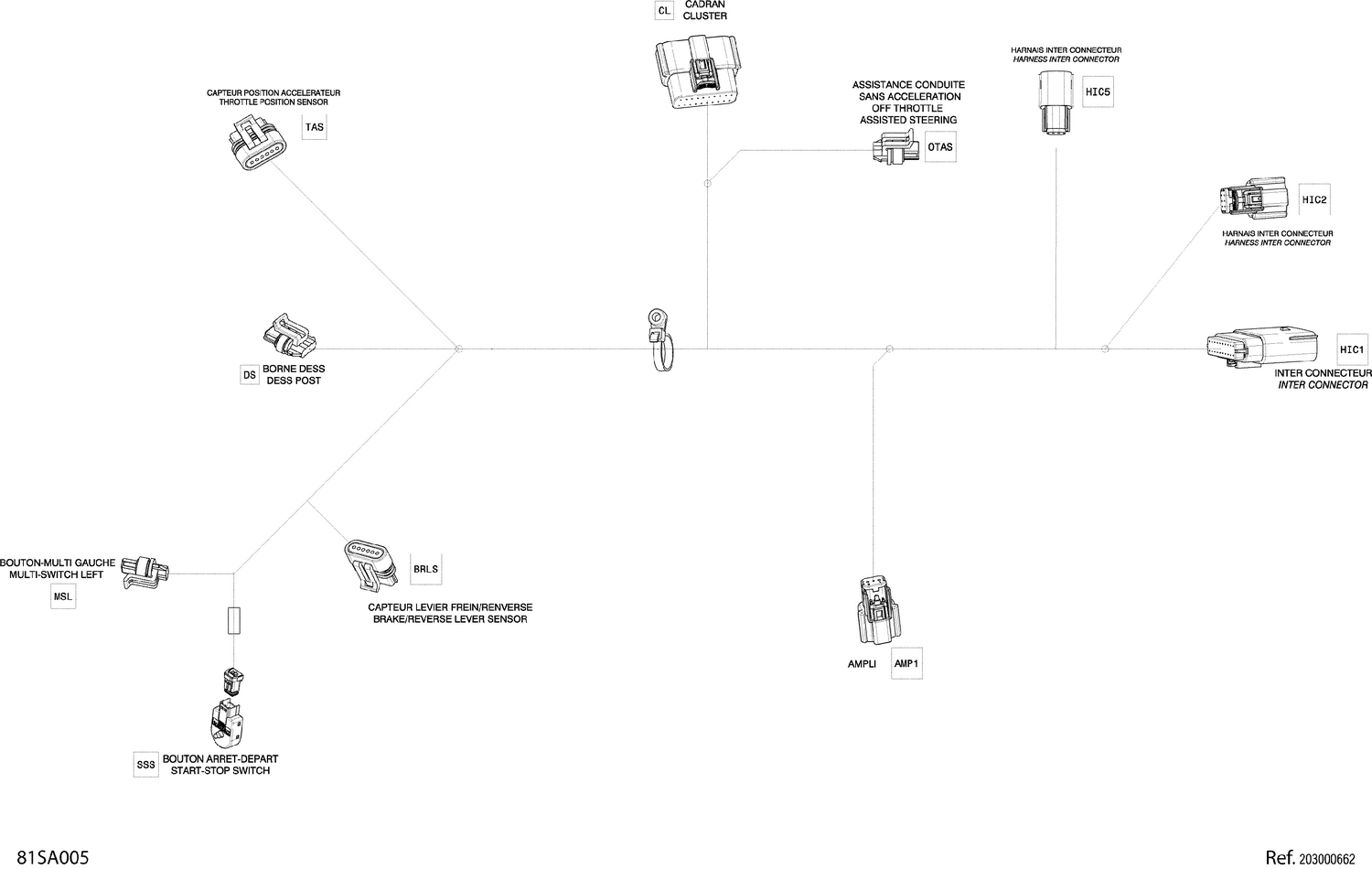

08- Electric - Steering Wiring Harness - 278003893
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| AMP1 | 515178014 | Female Terminal |
| AMP1 | 515178024 | Housing |
| BRLS | 278002299 | Female Terminal Housing 6 Circuits |
| BRLS | 710001119 | Female Terminal |
| CL | 278002858 | Female Housing 20 Circuits |
| CL | 278002860 | Sealing Cap |
| CL | 515178018 | Female Terminal |
| DS | 710000925 | Terminal |
| DS | 710001153 | Seal Wire |
| DS | 710001161 | Housing |
| HIC1 | 278002852 | Housing 20 Circuits |
| HIC1 | 278002860 | Sealing Cap |
| HIC1 | 515178013 | Male Terminal |
| HIC2 | 278002894 | Housing 6 Circuits |
| HIC2 | 515178018 | Female Terminal |
| HIC5 | 515178018 | Female Terminal |
| MSL | 278002387 | Female Terminal Housing 3 Circuits |
| MSL | 710001163 | Wire Seal |
| MSL | 710001164 | Female Terminal |
| OTAS | 278002387 | Female Terminal Housing 3 Circuits |
| OTAS | 710000925 | Terminal |
| OTAS | 710001153 | Seal Wire |
| SSS | 278002856 | Housing JAE 2 Circuits |
| SSS | 278002857 | Female Terminal |
| SSS | 296000440 | Start/Stop Switch This part replaces 296000440. |
| TAS | 278002299 | Female Terminal Housing 6 Circuits |
| 1730 | 278003893 | Handlebar Wiring Harness |
