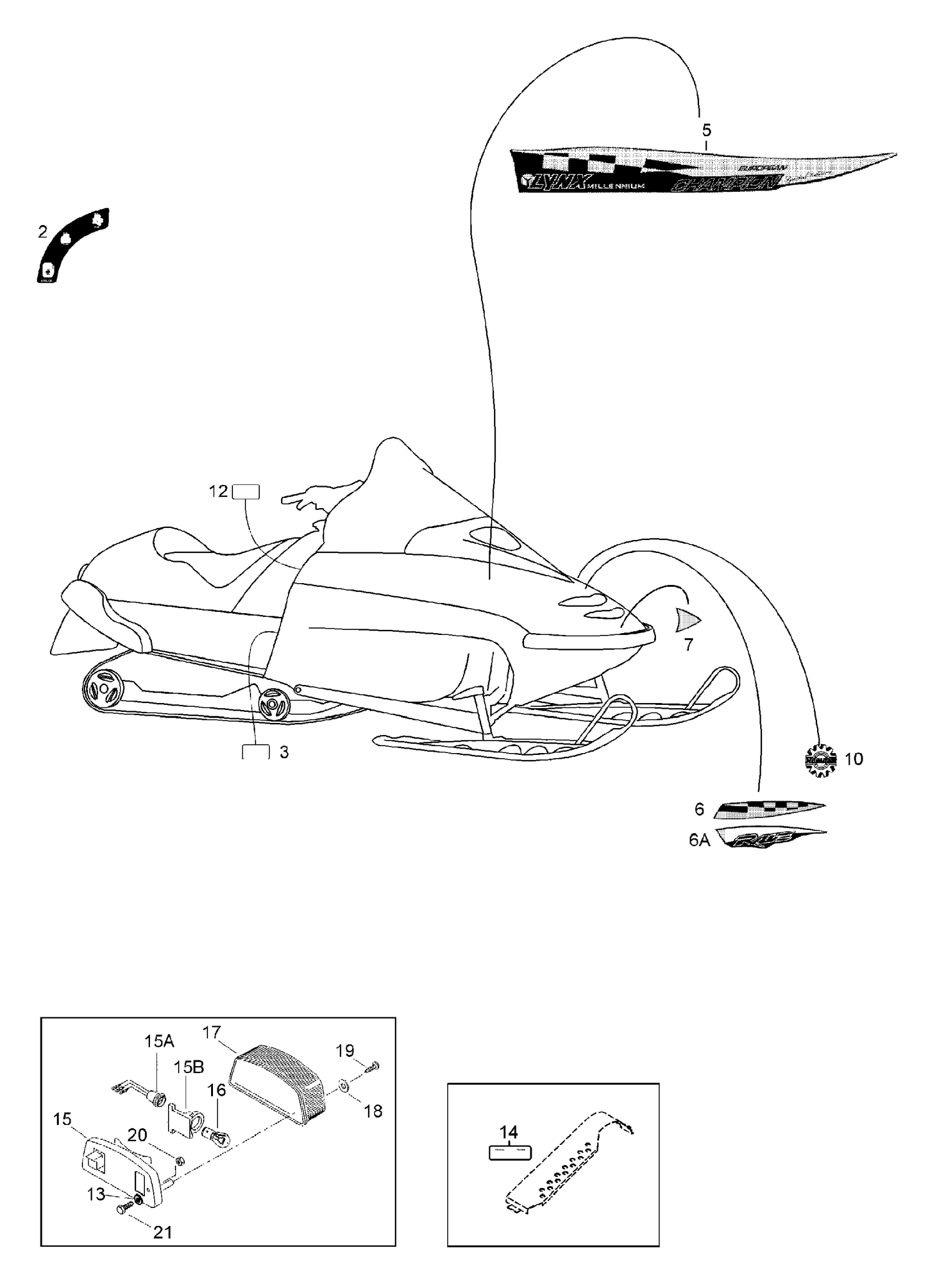

09- Decals
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5444818 | Grip heater decal |
| 3 | 5445636 | CE-decal |
| 5 | 5345868 | Hood -decal R.H. |
| 5 | 5345869 | Hood -decal L.H. |
| 6 | 5345871 | R.H. Hood decal, upper |
| 6A | 5345870 | L.H. Hood decal, upper |
| 7 | 5345872 | Hood decal, front |
| 10 | 516008738 | Logo 48mm "BRP" This part replaces 516000282. |
| 12 | 544068 | Oil check decal |
| 13 | Not | Available As Spare Part - Allen screw M8x20 - DOES NOT APPLY TO THIS MODEL |
| 14 | 546820 | Pulley decal |
| 15 | 414979400 | Taillamp housing |
| 15A | 414979410 | Socket |
| 15B | 414979411 | Rubber damper |
| 16 | 520000758 | Bulb This part replaces 410504000. |
| 17 | 414513700 | Lens |
| 18 | 414516400 | Washer - Call your local BRP dealership |
| 19 | 40613 | Screw |
| 20 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
