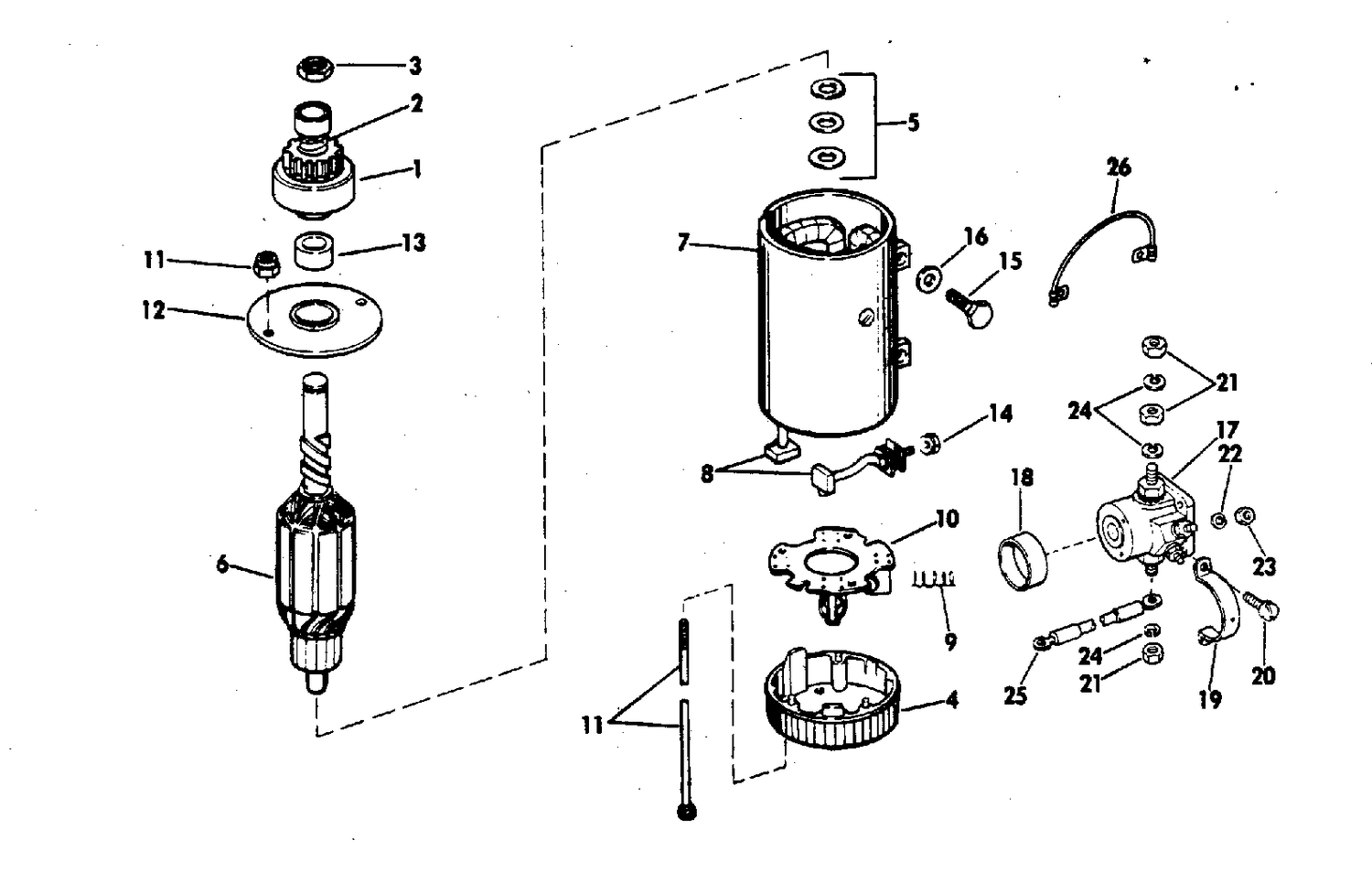

ELECTRIC STARTER & SOLENOID PRESTOLITE MODELS MGD-4110
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0385449 | DRIVE ASSY |
| 4 | 0379966 | HEAD ASSEMBLY, Commutator end |
| 5 | 0384306 | THRUSH WASHER PKG. |
| 6 | 0315376 | ARMATURE |
| 7 | 0383890 | FRAME & FIELD ASSEMBLY, Complete |
| 9 | 0383891 | SPRING SET |
| 10 | 0384502 | BRUSH |
| 12 | 0385059 | HEAD ASSY, Drive end |
| 15 | 0302479 | VIS, démarreur vers bloc cylindres-carter |
| 15 | 0306423 | BOLT |
| 18 | 0311217 | MANCHON, solénoïde |
| 19 | 0330112 | BRIDE, solénoïde vers démarreur This part replaces 0311218. |
| 25 | 0385806 | LEAD, Starter to solenoid |
