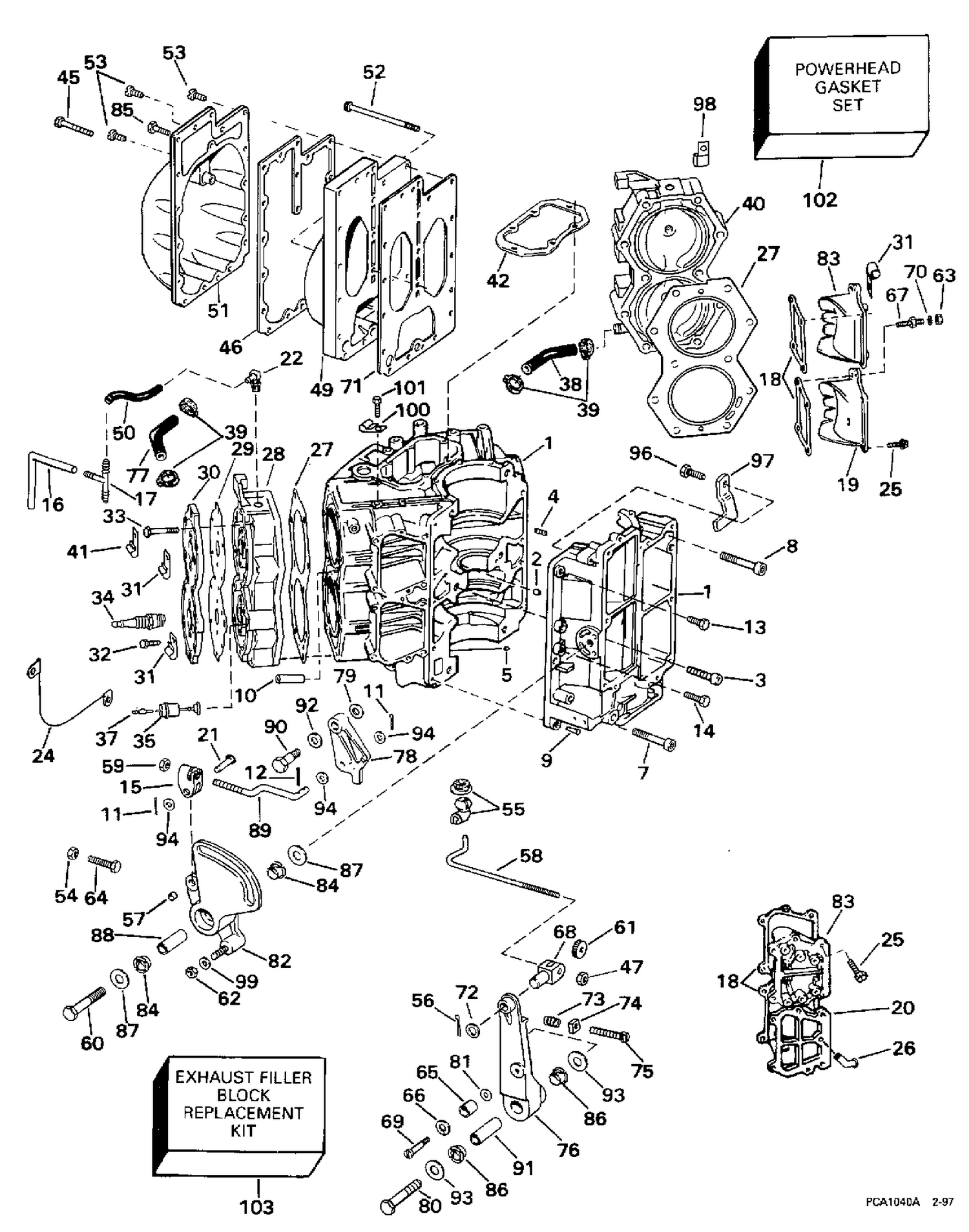

| Ref | Part Number | Description |
|---|
| 1 |
0436749 |
CYL. & C'CASE ASSY., 115 models |
| 3 |
0319592 |
SCERW,Cyl.to c'case,center |
| 4 |
0394884 |
CHECK VALVE |
| 5 |
0310507 |
PLUG |
| 7 |
0318907 |
SCREW, C'case to cyl top |
| 8 |
0318907 |
SCREW, C'case to cyl top |
| 10 |
0322411 |
DEFLECTOR, Water pass |
| 13 |
0300646 |
VIS, ancrage |
| 14 |
0306778 |
ECREW,Exhaust cover,1-3/8"long |
| 15 |
0397018 |
YOKE & THUMBWHEEL |
| 16 |
HOSE, |
Tee to muffler, 11 1/2 in. (292mm) |
| 17 |
0319741 |
TEE |
| 18 |
0307133 |
GASKET |
| 19 |
0310532 |
COVER BY-PASS |
| 20 |
0340498 |
COVER, Bypass, stbd. lower |
| 24 |
0985394 |
GROUND WIRE, 2-loop |
| 25 |
0306049 |
SCREW |
| 27 |
0318358 |
GASKET, Cyl. head |
| 28 |
0342322 |
CYLINDER HEAD, Stbd. |
| 29 |
0318335 |
COVER, Cylinder head |
| 30 |
0318333 |
COVER, Cylinder head |
| 31 |
0330151 |
CLAMP, Harness to oil tank boss |
| 32 |
0306409 |
VIS, collecteur vers carter-moteur |
| 33 |
0307267 |
SCREW |
| 34 |
0432424 |
SPARK PLUG , QL16V |
| 34 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 35 |
0586148 |
SWITCH, Temperature |
| 38 |
0340976 |
HOSE, Cylinder head, port |
| 39 |
0980863 |
CLAMP |
| 40 |
0342321 |
CYLINDER HEAD, Port |
| 41 |
0330151 |
CLAMP, Harness to oil tank boss |
| 42 |
0322858 |
GASKET |
| 45 |
0323626 |
SCREW |
| 46 |
0317955 |
GASKET, Exh. cover |
| 49 |
0323468 |
EXHAUST MANIFOLD |
| 50 |
HOSE, |
Elbow to tee, 6 1/4 in. (159mm) |
| 51 |
0390015 |
COVER, Exh. manifold |
| 52 |
0317972 |
ACREW,Exh manf to cyl.,4-1/4" long |
| 53 |
0308728 |
SCREW |
| 55 |
0395448 |
BALL & SOCKET ASSY |
| 56 |
0330145 |
COTTER PIN |
| 57 |
0320302 |
BUSHING, Laink to lever |
| 58 |
0334739 |
ROD, Spark advance |
| 61 |
0334738 |
THUMBWHEEL |
| 64 |
0328693 |
SCREW, Bracket to bracket |
| 65 |
0432572 |
ROLLER & SLEEVE ASSY |
| 67 |
0334109 |
BOLT, Double end |
| 68 |
0334737 |
RETAINER, Rod spark advance |
| 69 |
0329677 |
SCREW, Roller |
| 71 |
0323469 |
GASKET, Exh. manifold to cyl. 140 hp |
| 72 |
0330179 |
WASHER |
| 75 |
0328699 |
LEVER, Spark control |
| 76 |
0330898 |
LEVER, Spark control |
| 77 |
0340975 |
HOSE, Cylinder head, stbd. |
| 78 |
0330985 |
THROTTLE CAM |
| 82 |
0397084 |
LEVER, Throttle |
| 83 |
0392754 |
COVER, By-pass |
| 85 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 87 |
0908398 |
WASHER |
| 88 |
0331577 |
SLEEVE, Spark control |
| 89 |
0330902 |
ROD, Throttle lever to cam |
| 90 |
0330933 |
SCREW, reverse lock link |
| 91 |
0331577 |
SLEEVE, Spark control |
| 92 |
0328733 |
RONDELLE ÉLASTIQUE, levier de sens de marche |
| 93 |
0908398 |
WASHER |
| 97 |
0332154 |
PLATE, Idle stop |
| 99 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 100 |
0511411 |
COLLIER BOUCLE, fils faisceau |
| 101 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 102 |
0439085 |
POWERHEAD GASKET SET This part replaces 0391300. |
