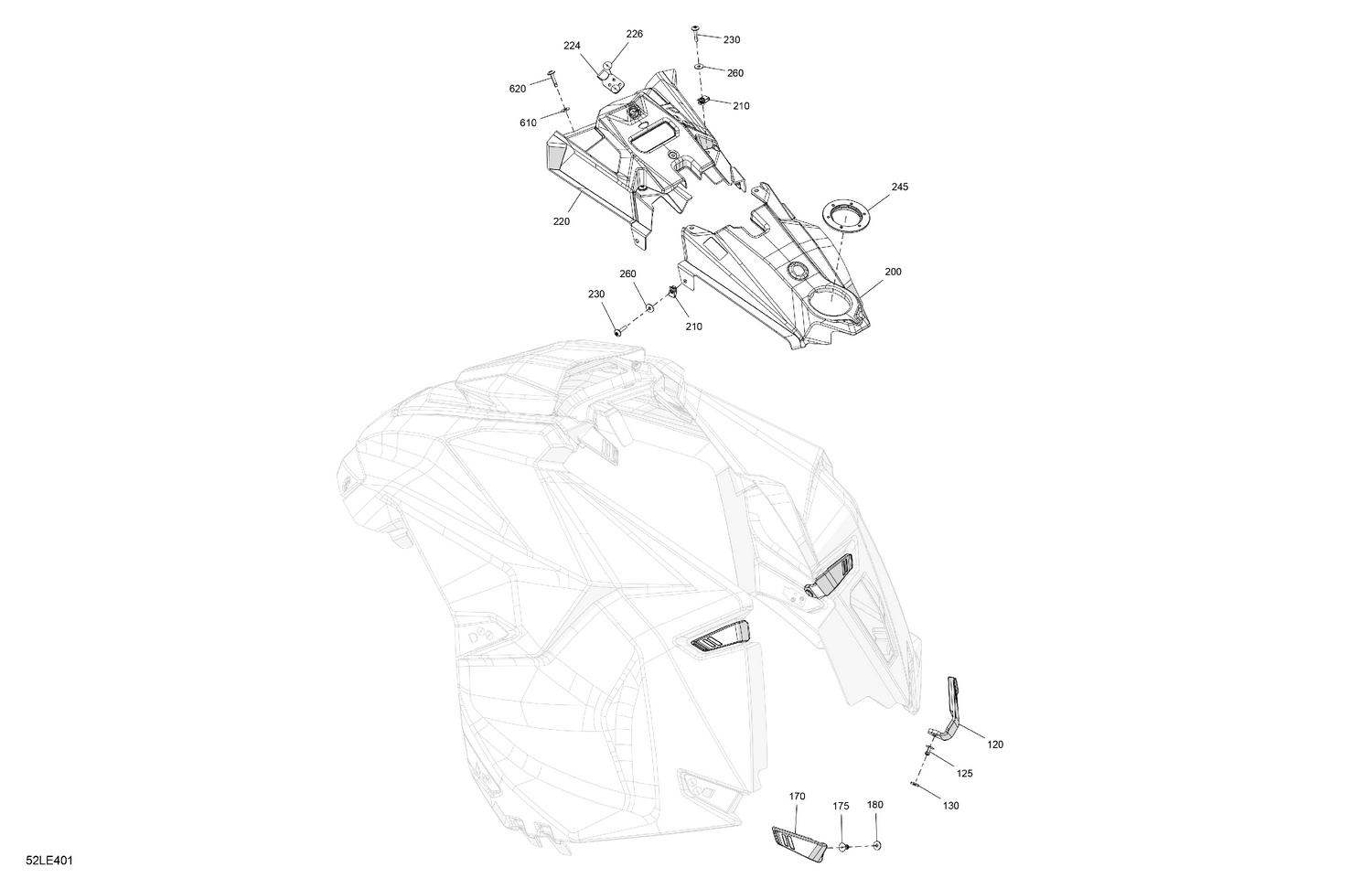

07- Body - Hood Section and WindShield
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 120 | 517309478 | RH Short Latch |
| 125 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 130 | 250200025 | Washer M5 |
| 170 | 517309479 | LH Short Latch |
| 175 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 180 | 250200025 | Washer M5 |
| 200 | 517309473 | Deep Black, Rear Console |
| 210 | 250000958 | Panel Nut M5 X 0.8 |
| 220 | 517309530 | Deep Black, Front Console |
| 224 | 517309736 | Latch Base |
| 226 | 293150308 | Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 230 | 250000587 | Torx Screw M5 X 26 |
| 245 | 517304518 | Console Nut |
| 260 | 250200140 | Washer |
| 610 | 250200140 | Washer |
